11.2.7 Nebulizer

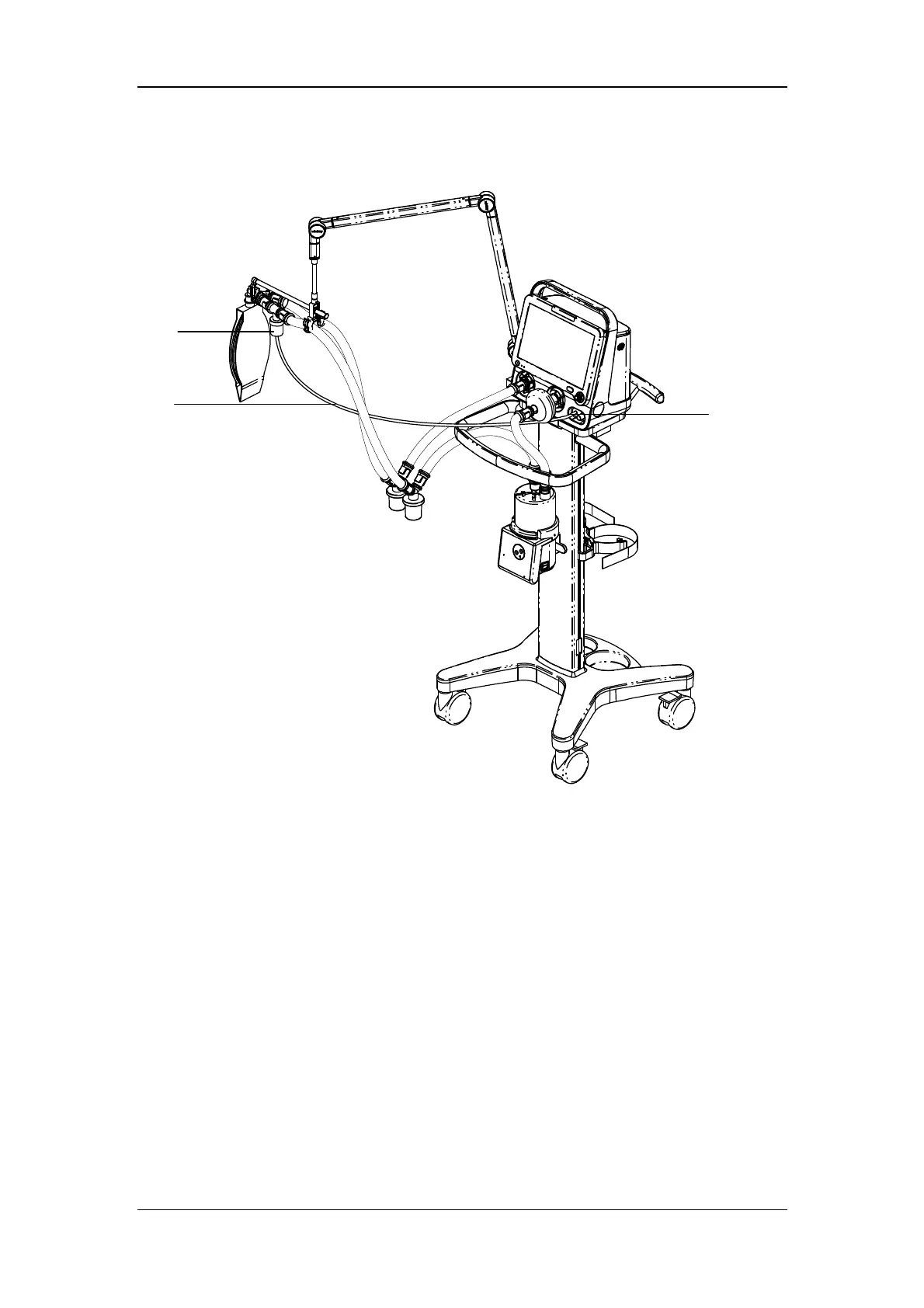

A. Nebulizer connector B. Nebulizer tube C. Nebulizer
 To disassemble the pneumatic nebulizer:
1. Pull out the nebulizer tube from the nebulizer connector.
2. Pull out the nebulizer tube from the nebulizer and remove the nebulizer.
 To install the pneumatic nebulizer:
1. Connect one end of the nebulizer tube to the nebulizer connector and the other end to the
nebulizer.
2. Install the nebulizer in the inspiratory limb via the tube.
