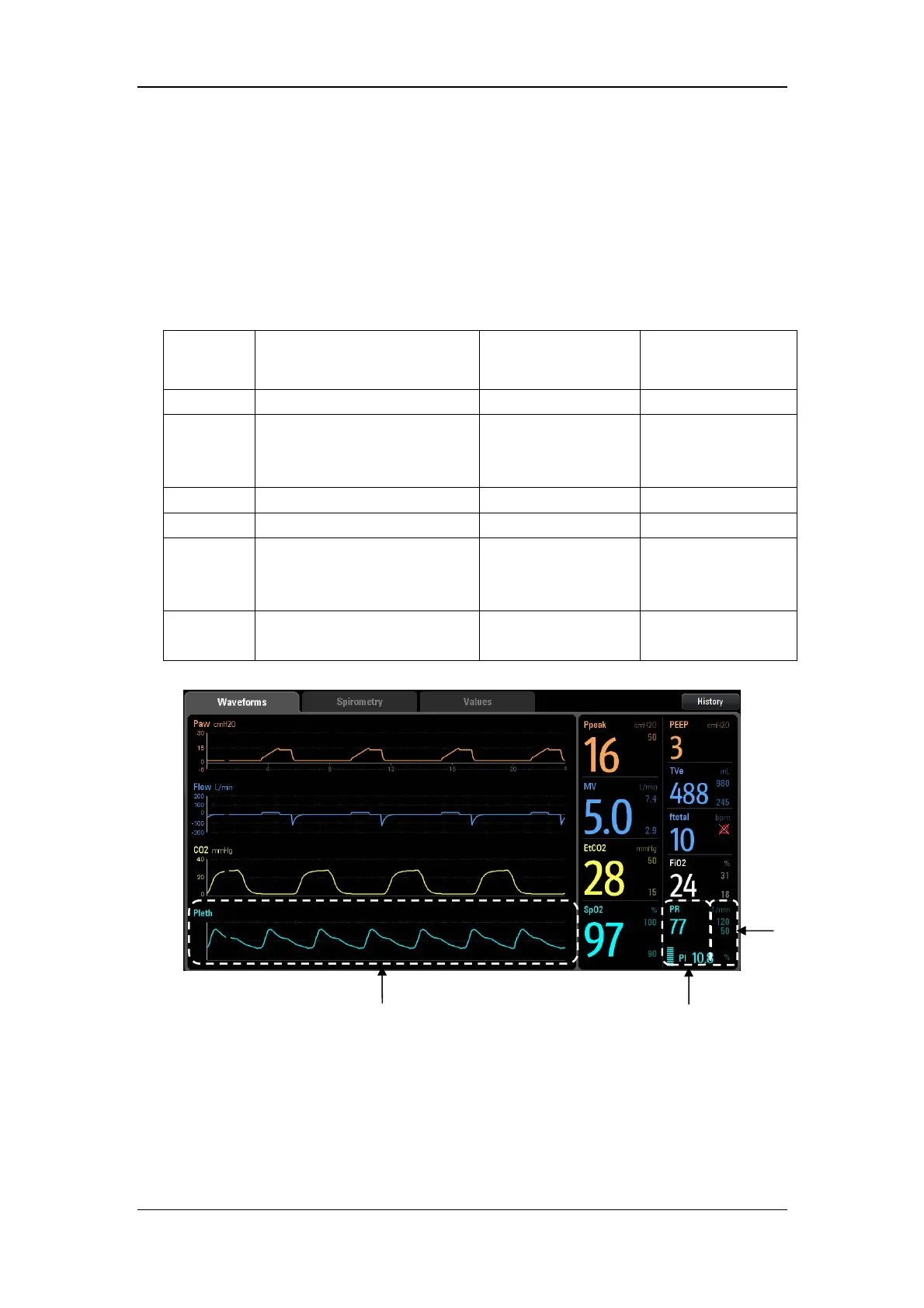

5.1.3 Colors
The colors of waveform, parameter, spirometry loop, and parameter alarm limit are linked. If
you set the color of waveform or parameter, the color of the relevant parameter, waveform, or
spirometry loop also changes. The color of related parameter alarm limit will be the dark
color of the set color.
The following table lists the waveforms, related parameters, spirometry loops and alarm
limits.
Waveform Waveform related
parameters
Waveform related
spirometry loop
Waveform related
alarm limits
Paw Ppeak, Pmean, Pplat, PEEP P-V loop, F-P loop Ppeak
Flow MV, MVleak, MVspn, TVe,
TVi, TVspn, ftotal, fmand,
fspn, TVe/IBW
F-V loop MV, TVe, ftotal
Volume / / /
/ FiO
2
/ FiO
2
CO
2
EtCO
2
, Vdaw, Vdaw/TVe,
Vtalv, V’alv, slopeCO
2
,
V’CO
2
, VeCO
2
, ViCO
2
,
V-CO
2
loop EtCO
2
Pleth SpO
2
, PR, PI / SpO
2
, PR, SpO
2
Desat
5.1.4 Defaults
1. Select [Setup]→[Setting]→[Screen Setup].
2. Set [Defaults] as required to restore the setting values in the screen setup menu to the
default values.
Waveform
Parameter
Alarm
limits

Mindray SV300 Specifications

General

Waveform Display	Pressure, Flow, Volume
Battery Backup	Up to 2 hours
Ventilation Modes	VCV, PCV, SIMV
Tidal Volume Range	20 to 2000 mL
FiO2	21 to 100%
Inspiratory Time	0.2-5.0 s
Monitoring Parameters	Paw, Ppeak, Pmean, Pplat, PEEP, VTI, VTE, MV, f, FiO2, I:E
Alarms	High/Low Airway Pressure, High/Low Minute Volume, High/Low Tidal Volume, High/Low Respiratory Rate, High/Low FiO2, Apnea, Power Failure
Power Supply	AC 100-240V, 50/60Hz
Peak Flow	180 L/min
Trigger Sensitivity (Flow)	0.5-10 L/min
