Mindray SV300 User Manual

1-8

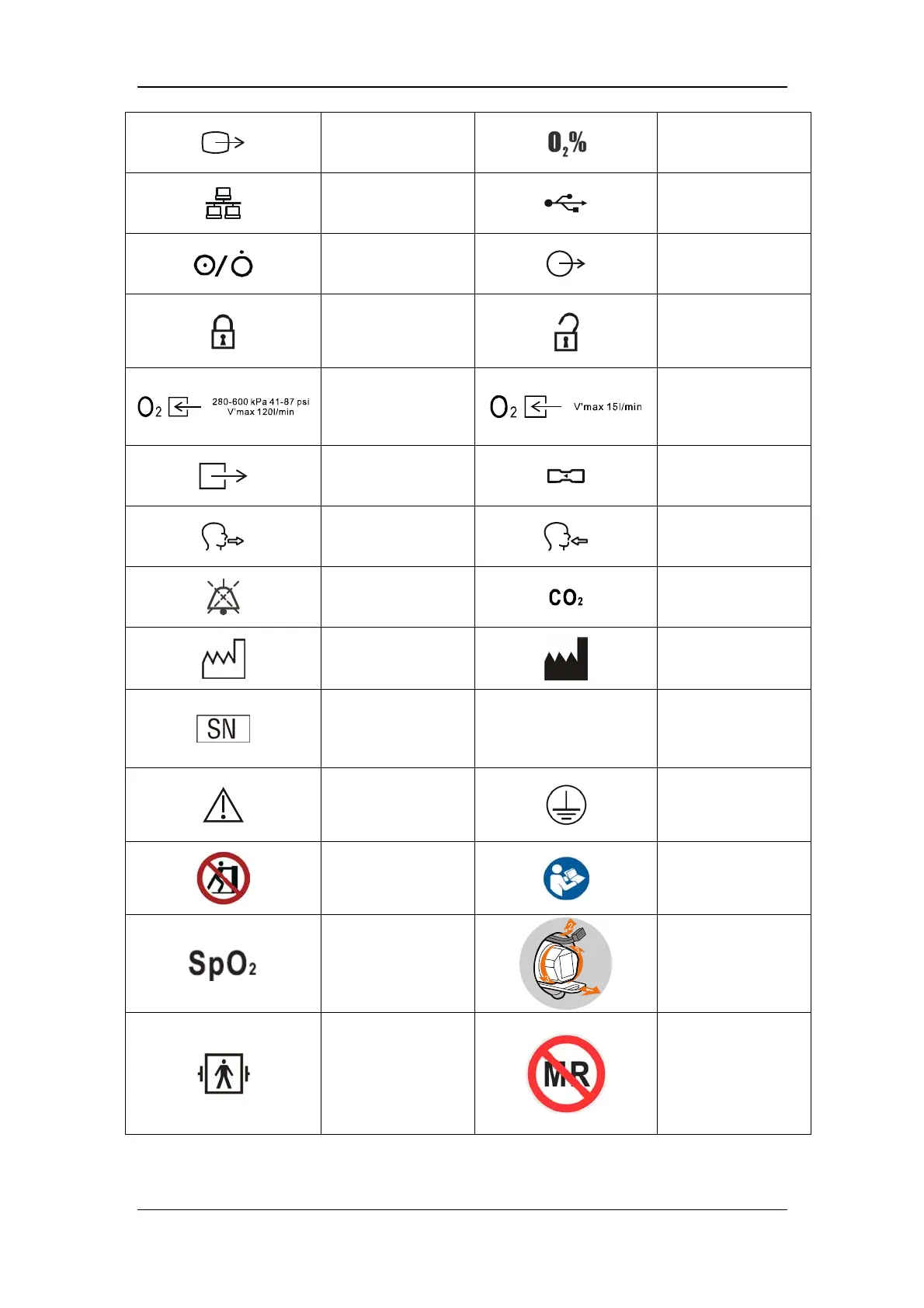

VGA output
connector
Oxygen sensor
connector
Network connector
USB connector
Power switch
Nurse call connector
Lock
Unlock
High-pressure
oxygen supply
connector
Low-pressure
oxygen supply
connector
Ventilator gas outlet
Flow sensor
Expiration
connector
Inspiration
connector
AUDIO PAUSED
CO
2
module
Date of manufacture
Manufacturer
Serial number
IP21
Degree of protection
provided by
enclosure
Caution
Protective earth
ground
no pushing
Refer to the
operator's manual
SpO
2
module
Disassemble the O
2
sensor
Type BF applied
part.
Defibrillation-proof
protection against
electric shock.
MR Unsafe - do not
subject to magnetic
resonance imaging
(MRI)

Mindray SV300 Specifications

General

Waveform Display	Pressure, Flow, Volume
Battery Backup	Up to 2 hours
Ventilation Modes	VCV, PCV, SIMV
Tidal Volume Range	20 to 2000 mL
FiO2	21 to 100%
Inspiratory Time	0.2-5.0 s
Monitoring Parameters	Paw, Ppeak, Pmean, Pplat, PEEP, VTI, VTE, MV, f, FiO2, I:E
Alarms	High/Low Airway Pressure, High/Low Minute Volume, High/Low Tidal Volume, High/Low Respiratory Rate, High/Low FiO2, Apnea, Power Failure
Power Supply	AC 100-240V, 50/60Hz
Peak Flow	180 L/min
Trigger Sensitivity (Flow)	0.5-10 L/min
