3-7
1. Loosen the fixing block knob. Place the fixing block onto the handle on the side of the
ventilator.
2. Tighten the fixing block knob.
WARNING
To prevent possible patient injury due to accidental extubation, check the support
arm joints and the connection security as necessary.
3. Adjust the support arm.
Support arm joint F or G: to adjust the upward-bending angle of the support arm, only
lift up the support bar to the desired position without the need to push the blue unlocking
button
. To adjust the downward-bending angle of the support arm, lift up the
support bar, and then push and hold the blue button
on support arm joint with
one hand, and hold the support bar and press it downward with the other hand. Release
the blue unlocking button
after adjusting the support bar to the desired position.
Support arm joint F or G can be adjusted for up to 130º.
Support arm joint D: swivel upward or downward to the desired position.
Hold the bottom of support arm or the support bar beside support arm joint G and swivel
it to the left, or to the right, with force to rotate the support arm to the desired position.
4. Place the patient tubing onto the tube hook.
NOTE

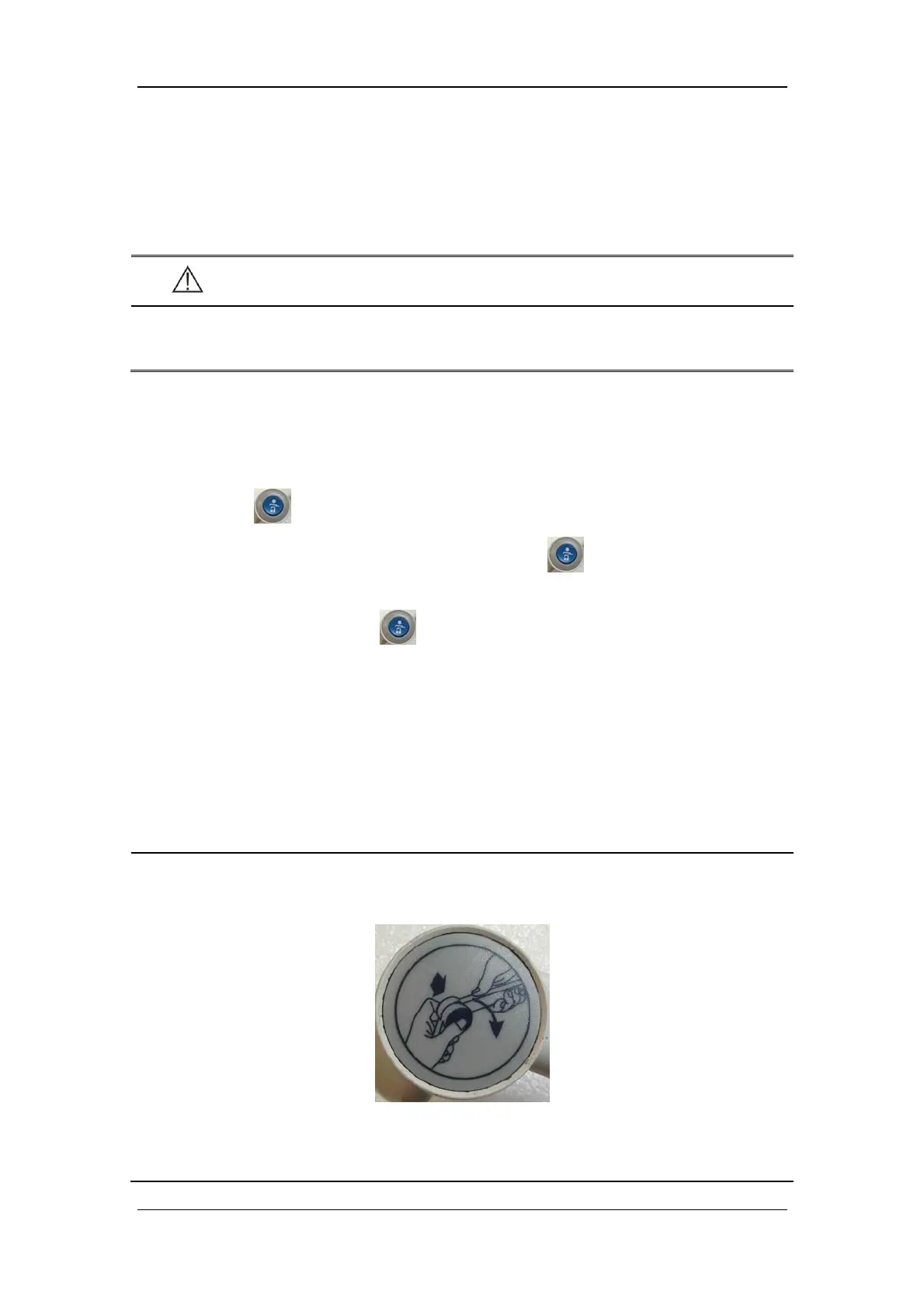

Operate support arm joint F or G with both hands as shown below. Operating with
a single hand will bring some risks.
The maximum weight of the support arm is 1 kg.
The support arm can be fixed onto the handle on the either side of the ventilator.
