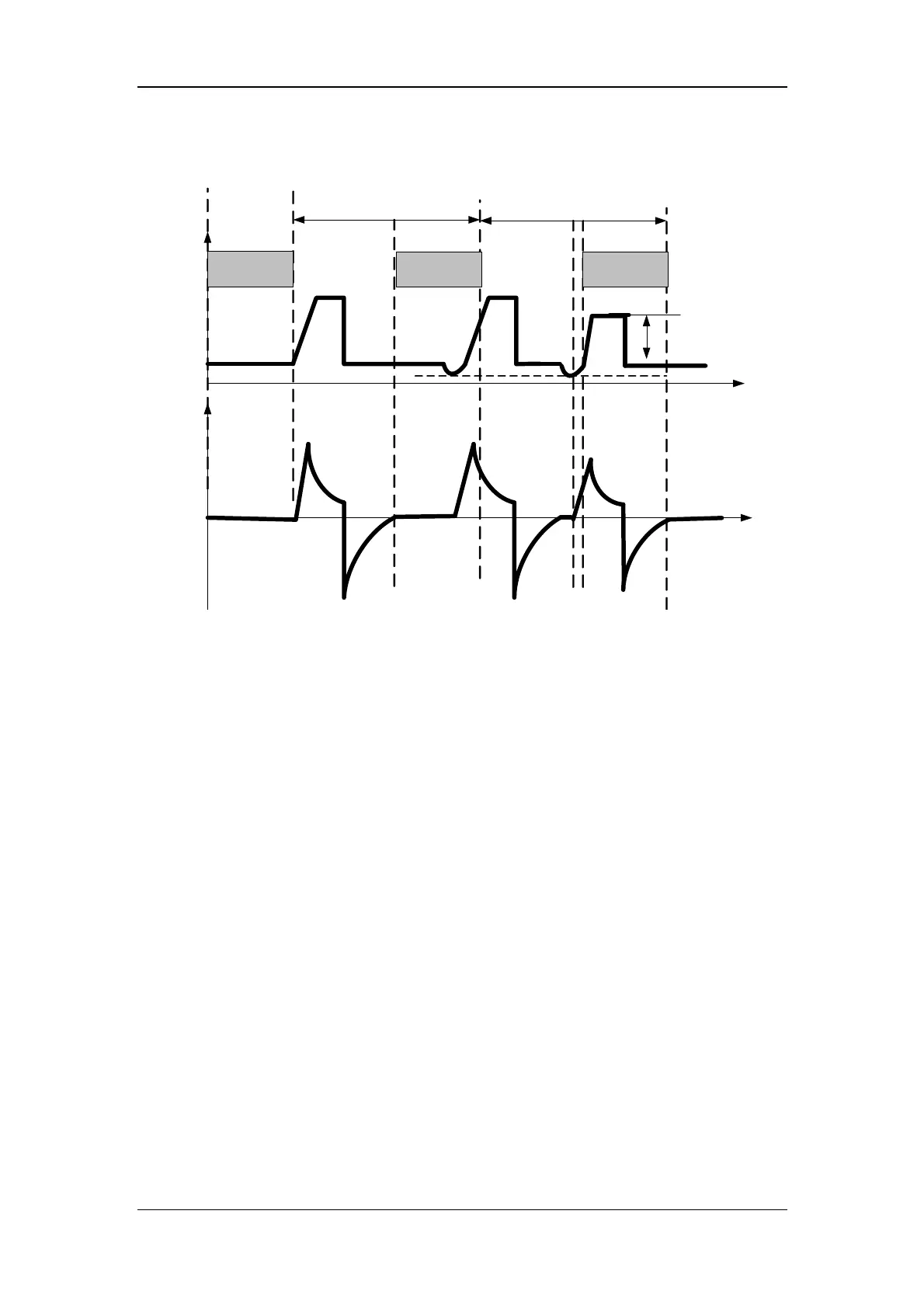

The following figure shows typical waveforms in P-SIMV+PSV mode.
Paw
Flow
Time
Time
Pressure
control
SIMV cycle
Trigger
window
SIMV cycle
Insp. trigger
△Psupp
P-SIMV+PSV
Trigger
window
Trigger
window
Pressure
control
In P-SIMV mode, you need to set the following basic ventilation parameters:
1. [O
2
%]: Oxygen concentration
2. [△Pinsp]: Inspiration pressure
3. [Tinsp]: Inspiration time
4. [fsimv]: Mandatory breathing frequency
5. [Tslope]: Time of pressure rising
6 [PEEP]: Positive end-expiratory pressure
7. [Exp％]: Expiration trigger level
8. [ΔPsupp]: Pressure support level
9. [F-Trig] or [P-Trig]: Inspiration trigger level
10. [Apnea Ventilation]: Switch for apnea ventilation
11. [TVapnea] or [ΔPapnea]: Tidal volume or inspiration pressure in apnea ventilation
cycle
12. [fapnea]: Frequency of apnea ventilation
13. [Apnea Tinsp]: Inspiration time of apnea ventilation
In P-SIMV mode, you can set the following sigh function parameters as required:
1. [Sigh]: Switch for turning on sigh function
2. [Interval]: Time interval between two sighs
