12
※1 When tension is applied with the application of tension type or
universal(compression/tension) type of load cell, and display of “+”
direction is required, connect “Green” with Terminal No.9 at
terminals 1, and “Blue” with Terminal No.8 at terminals 1
individually. As there is a case which standard wiring color is
different, please confirm the inspection data sheet of the load cell
being used.
※2 When the total length of CAB−502 specifies more than 30 m, the
accuracy may be out of warranty because the resistance of cable
makes the input voltage of the instrument decreased.
※3 When the total length of CAB−501 specifies more than 100 m, the
accuracy may be out of warranty, because the resistance of cable
makes the remote sensing function of the instrument deteriorated.
3

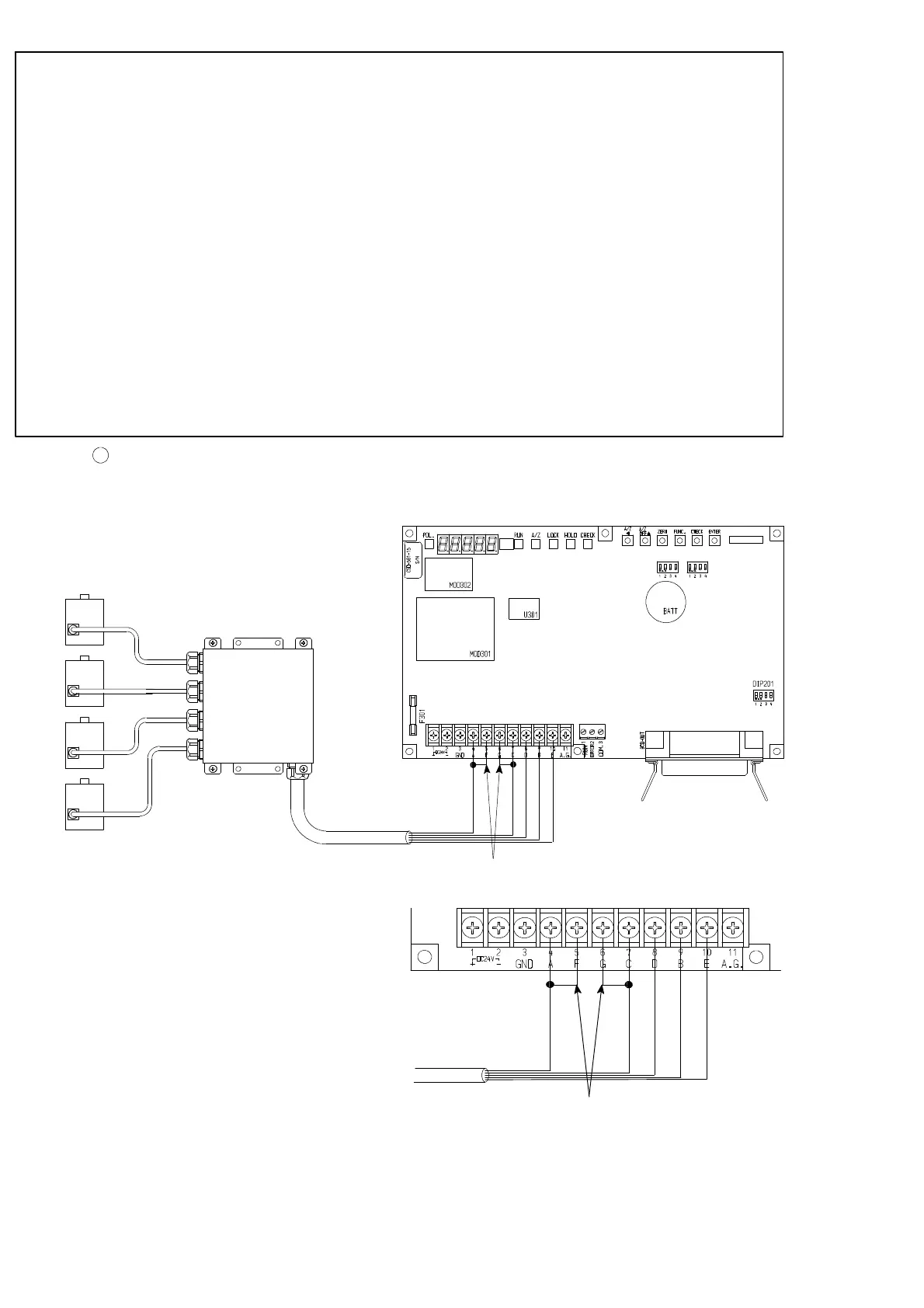

Connection with 2 to 4 points of Load cells and Summing type Junction box with balance
adjustment applied (B−307) and Digital indicator CSD−581−15
i) In case of application of CAB−502(4 cores cable)
※2 (Length of CAB−502 should be
30 m totally.)
B−307
Junction box
CAB−502
Enlarged figure for connecting section
WHT
※1GRN
※1BLU
Shield
RED
Attached short bars
Attached short bars
RED
WHT
※1BLU
Shield
※1GRN
CN202
DIP202
DIP203
To Next Page
