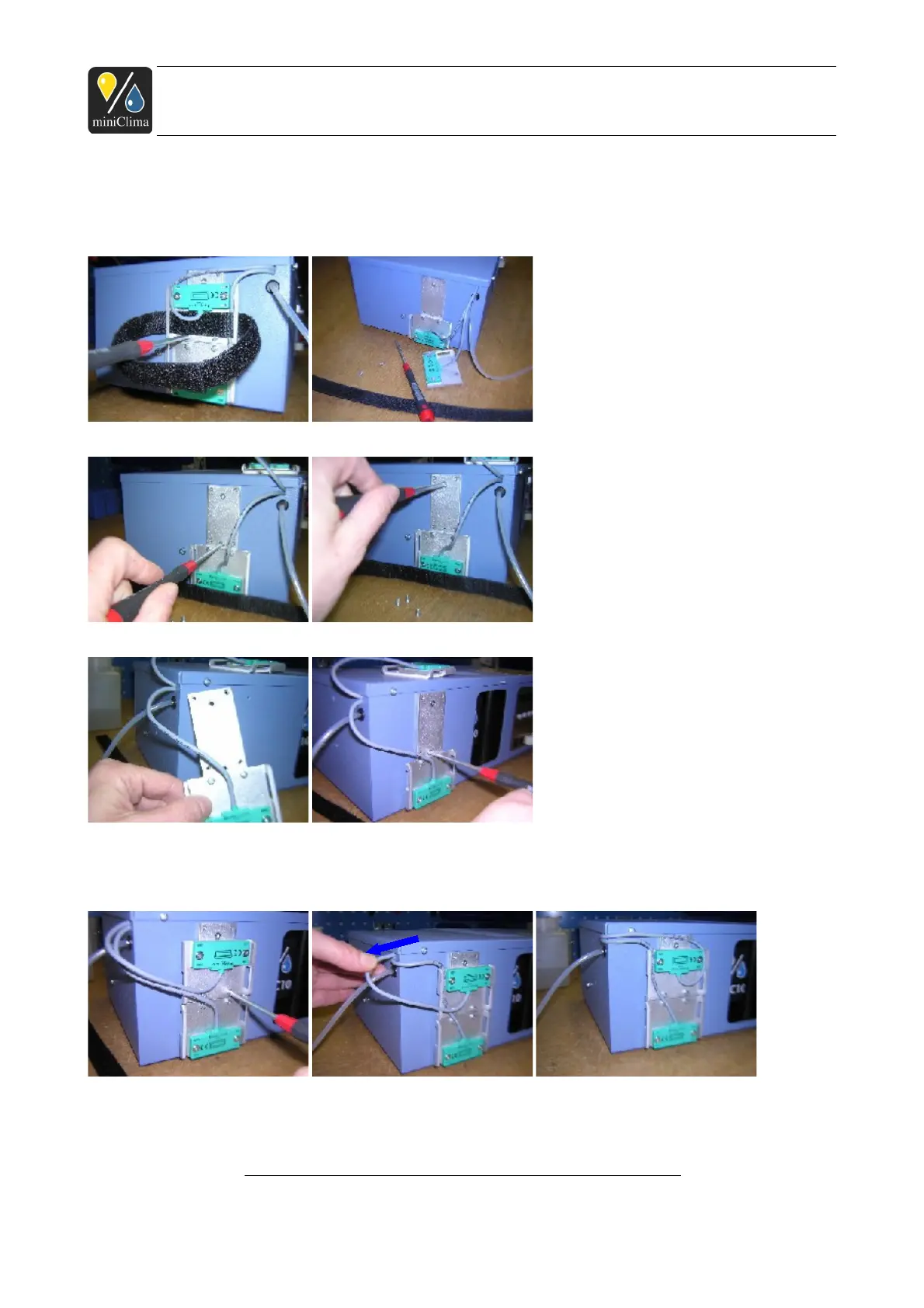

1) For units with 0.5l bottles: Unscrew the upper sensor holder (keep the screws) and pull off the hook-and-
loop-fastener:
2) Unscrew the anchor element (keep the screws):
3) Screw the anchor element to the two threaded holes (M3) on the front of the housing:
4) Where applicable: Screw the upper sensor holder back onto the anchor element and lead the cables (for
0.5l bottles) as shown. If the cables are too short, they can be pulled out of the EBC housing a bit (
CAUTION: Do not pull too hard and/or too far - stop pulling as soon as you can feel a higher resistance!):
5) Where applicable: Put the hook-and-loop-fastener back on the bracket as shown (the cable of the upper
sensor should be in front of the hook-and-loop-fastener; the one of the lower sensor (if any) underneath it
Applies analogously to the individual products of series EBC10/11/12 (Rev.3). As of 24.11.2014. Subject
to modification.
