Status of the EBC Display text LED Changeover contact for the
external display of the
EBC's on-off status
Changeover contact for the
external display of any alarm
currently issued by the EBC
Clamp 1,
Live Wire
Clamp 2,
Break
Contact
Clamp 3,
Make
Contact
Clamp 4,
Live Wire
Clamp 5,
Break
Contact
Clamp 6,
Make
Contact
No mains
connection
(Off) (Off) + + + +
Stand by Stand By Green + + + +
On No alarm 50% Humidify (or)
50% Dehumidify (or)
50% In Range
Green + + + +
On Bottle alarm 50% BottleALARM Red + + + +
On Reset bottle alarm, but persistent cause 50% BottleALARM Green + + + +
On Signal error alarm Signal ERROR Red + + + +
On Reset signal error alarm, but persistent cause Signal ERROR Green + + + +
On Pump alarm 50% PumpALARM Red + + + +
On Reset pump alarm, but persistent cause (EBC retries and in case
of failure issues the pump alarm again)
50% Humidify (or)
50% Dehumidify (or)
50% In Range
Green + + + +
On Humidity alarm 50% HumidityALARM Red + + + +
On Reset humidity alarm, but persistent cause (EBC retries and in
case of failure issues the humidity alarm again after 30 minutes)
50% Humidify (or)
50% Dehumidify (or)
50% In Range
Green + + + +

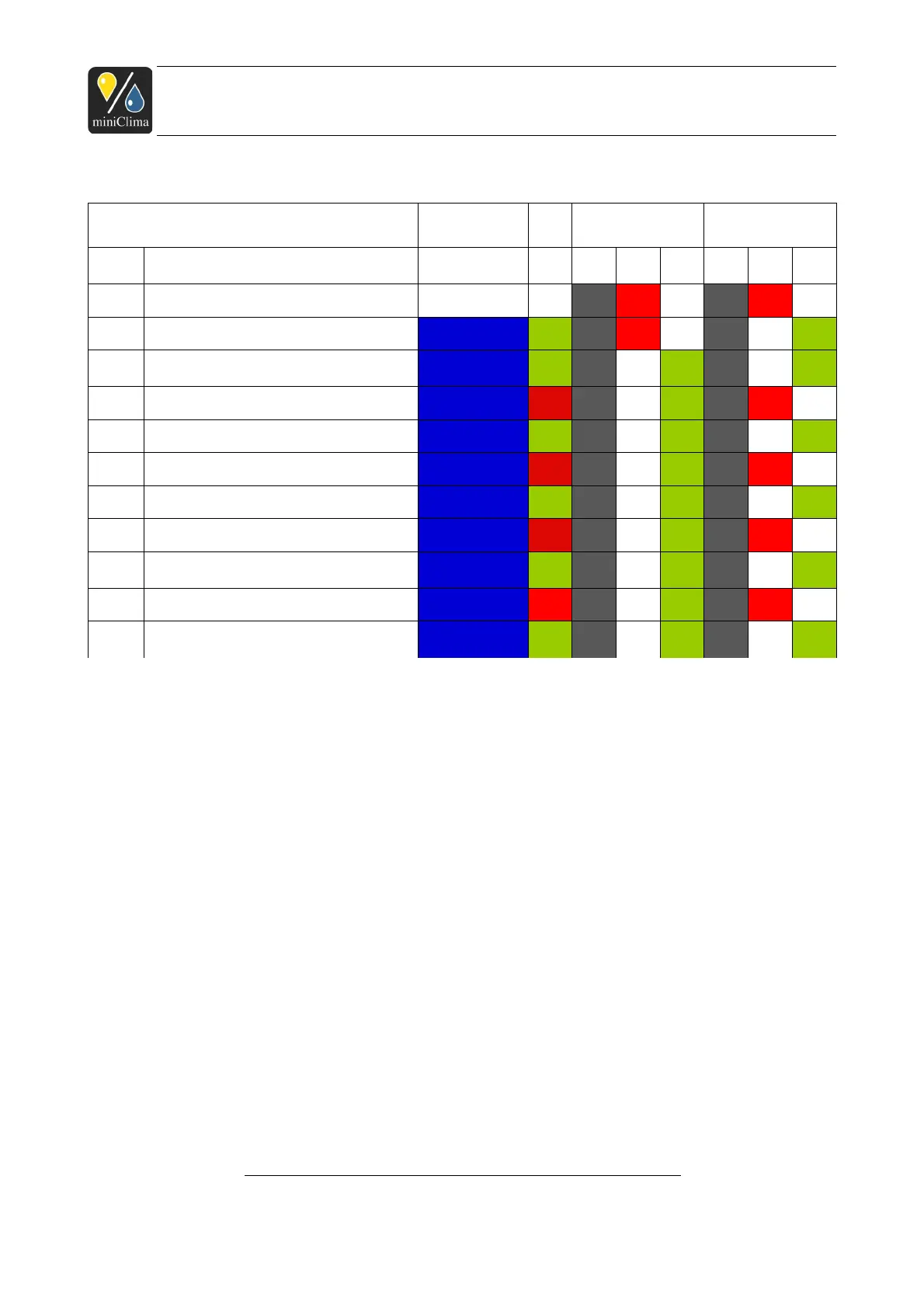

Table 1 - Possible alarm and status messages/signals (50% is used an exemplary value).
4 INITIAL AND CONTINUED OPERATION
As soon as all hosepipe connections and all required cable connections on the front panel are established,
you can continue with setting the device into operation. Proceed as follows:
4.1 Initial step 1 - bottle
 IMPORTANT: Do only use distilled water for the bottle. Demineralised water has proven to be insufficient
as a substitute. Using it consequently led to the necessity of sending in the EBCs for service far too soon.
 CAUTION: Do not spill water on the device! Keep distance from the EBC (or any other electric
devices/installations) when filling/emptying/cleaning the bottle!
Unscrew the cover of the bottle to fill the bottle halfway at first - in order to reserve space for the condensate,
which will be added to the distilled water in the bottle, every time the EBC is dehumidifying. On the other
hand, it is necessary to always leave at least some cm of water in the bottle, so as to avoid the pump alarm
Applies analogously to the individual products of series EBC10/11/12 (Rev.3). As of 24.11.2014. Subject
to modification.
