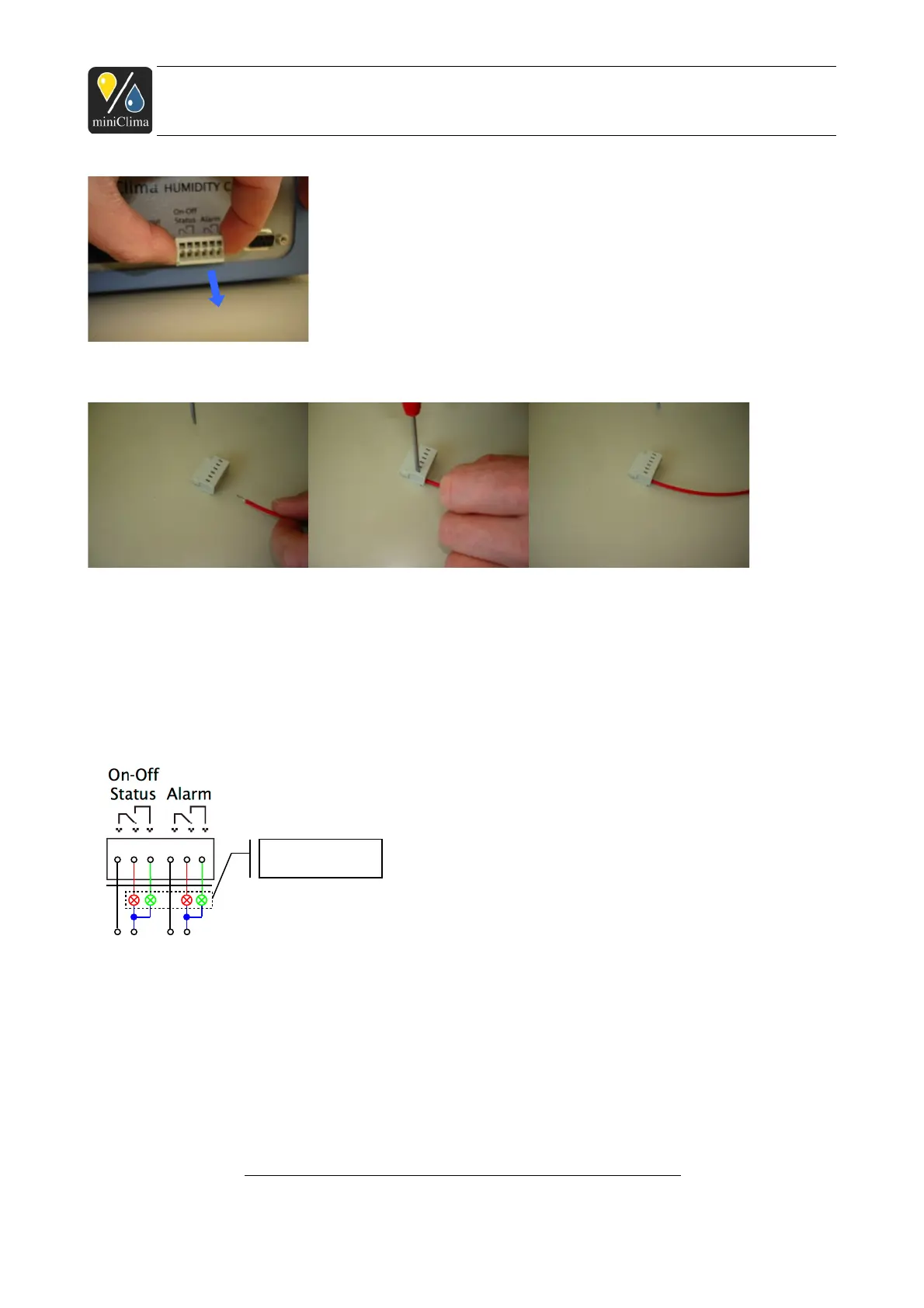

2) For removing or adding wires to the 6pin plug-in connector, press a small screwdriver into the hole to
open the according clamp beneath and pull/push the wire out/in at the same time:
3) It is best to accomplish all wished cable connections at once. For putting the plug-in connector back on
the device it has to be pressed onto the connection plug. Do hold the EBC with your free hand when
doing so, to keep it from slipping away.
Clamp positions: The live wire for each external signal has to be plugged to the resp. leftmost clamp, which
is clamp 1 for the on-off signal and clamp 4 for the alarm signal (left to right; see the diagram below).
Fig. 5 - Wiring diagram and clamp positions for the external signals
on the front plate of the EBC (max. voltage/amperage: 48V/4A).
The changeover contacts of the EBC, the EBC's display and the status LED react to the following
circumstances as noted here:
Applies analogously to the individual products of series EBC10/11/12 (Rev.3). As of 24.11.2014. Subject
to modification.
miniClima - Manual_EBC10-11-12(Rev.3)_en
21 / 54
+ - + -
Your external devices, i.e.
red and green lights.
