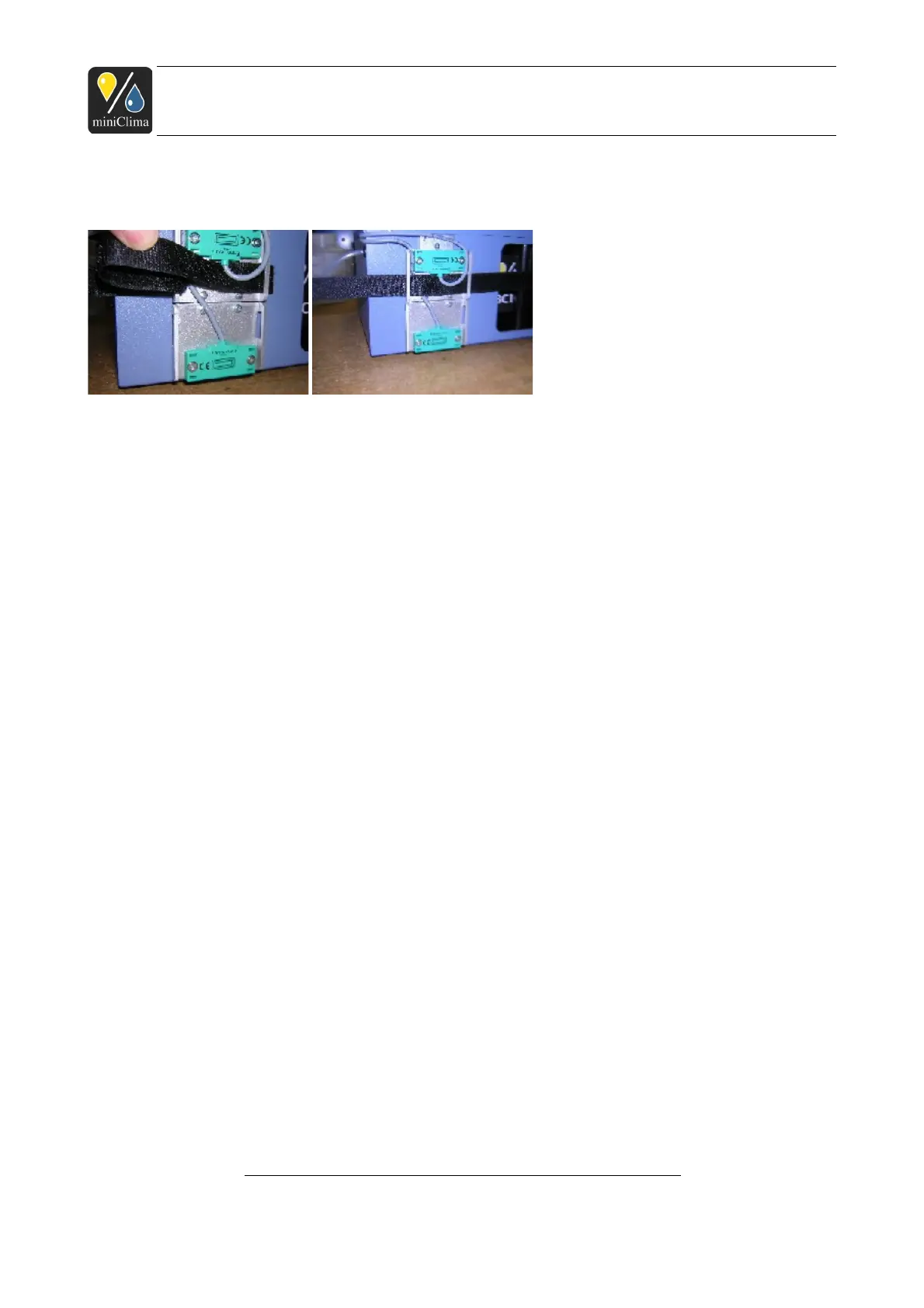

- or anyway, laid in a way so that the bottle will still touch the sensor, once fixed with the hook-and-loop-
fastener):
Rearranging the holders back to the left side of the EBC is done likewise.
IMPORTANT: Beware to not squeeze any cable or the silicone pipe when rearranging the holders! Also, do
not yet fill the bottle. Please continue with the installation as follows.
3.2 Setting up the EBC, establishing the hosepipe connections
NOTE: If you have ordered air-distribution-boxes (LVB25, LVB32, LVB40), filter capsules (FLT25, FLT32,
FLT40), or other accessories relevant for the hosepipe connections, do also regard their additional
installation manuals at this point.
The EBC should be positioned as close as possible to the case, to keep the air resistance, which increases
with the length of the used hosepipes, low. The EBC should not be located in the air-conditioned part of the
case itself, though
9
. The device has to be installed horizontally and firm in order to permit correct water level
control, and to avoid water running out of the inner evaporation tub during operation. The device has to be
given the possibility to emit its self-produced heat during the operation. It is therefore necessary to ensure,
that...
1) ...the device's place of installation (mostly the plinth of the case) is aired (e.g. by means of ventilation
holes in the plinth
10
, or by ventilation fans, if necessary);
2) ...the EBC is placed on a plain surface (no carpets or other materials that could block the cooling air slits
on the bottom of the EBC);
9
Users do report that this has been done successfully, still, we do not recommend it. If you intend to place your EBC inside the conditioned part of your case, you should be
aware of the fact that the EBC has to and will emit its self-produced heat. Furthermore you will have to take care against a shortcut of the air flow between the EBC's air inlet
and outlet, which are very close to each other. Finally it would become necessary to open the conditioned part of the showcase every time the EBC has to be handled
(filling/emptying the bottle, changing settings or reading out data via the menu, connecting a PC to the EBC, maintaining the cooling air slits/grills/filter,...).
10
Recommended sizes and positions for the ventilation holes: 2x150cm
2
per EBC10 or -11, 4x150cm
2
per EBC12; top & bottom panel of the plinth and/or both side panels of it.
Applies analogously to the individual products of series EBC10/11/12 (Rev.3). As of 24.11.2014. Subject
to modification.
