before the bottle becomes empty, too. Where neither of these alarms is required both sensors can be left
away and the EBC will be delivered without any bottle alarm.
The bottle sensors are turquoise rectangular plates mounted to aluminium brackets on the side (default for
EBC10 and -11) or front (option for EBC 10 and -11; by default the only option for EBC12
8
) of the EBC (see
Fig. 3). The top bracket also holds the black hook-and-loop-fastener ("Velcro®") for securing the bottle. If you
see a sensor on the top bracket, your unit is equipped with a water level sensor that issues an alarm before
the bottle can overflow. If you see a second aluminium bracket with a turquoise sensor below, your unit will
also recognise it when the bottle needs to be refilled.

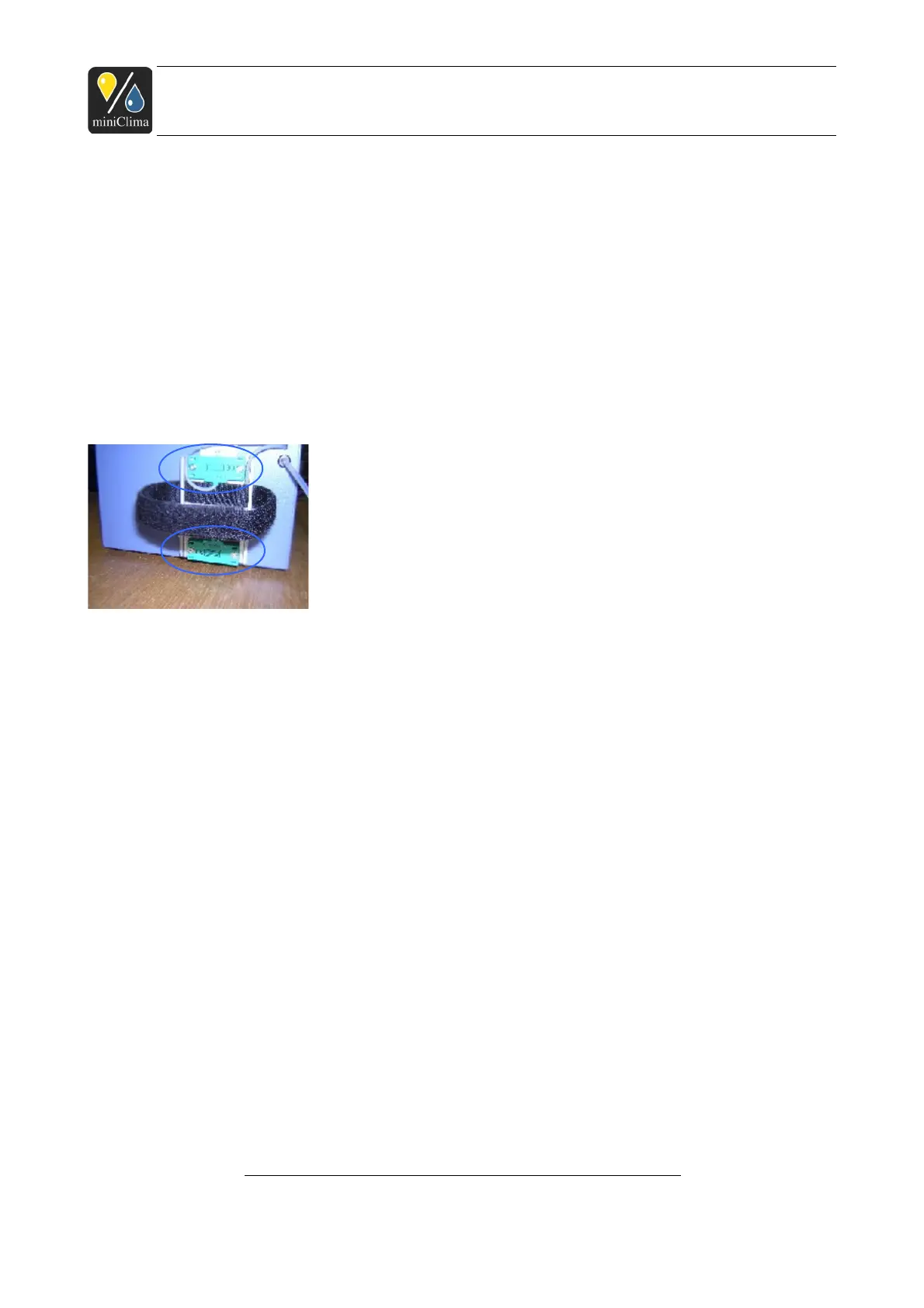

Fig. 3 - Water level sensors for the high and for the
low level alarm. In the sample image, the brackets,
that hold the sensors and the hook-and-loop-fastener
for securing the bottle, are mounted to the left side of
an EBC10 or -11. They can also be mounted to the
front of any EBC10 or -11, whereas on EBC12 they
are always positioned on the front plate; if you need
to have them mounted to the side of an EBC12
additional parts need to be ordered for that purpose.
3 INSTALLATION
3.1 Positioning the bottle
The bottle (0.5l or 2.0l) can be positioned to the left of the EBC10/11 as well as to the front of it (EBC12: By
default to the front only, with optional accessories to the side as well). By default the bottle holder(s) with the
water level sensor(s) (if any; see section 2.7 "Identifying the kind and number of the water level sensors" on
p. 9) and the hook-and-loop-fastener for securing the bottle are mounted on the side of any EBC10/11. If that
assembly shall not be changed, continue with section 3.2 "Setting up the EBC, establishing the hosepipe
connections" on p. 12.
If, on the other hand, you plan to put the bottle (0.5l or 2.0l) to the front of your EBC10 or -11, follow these
steps:
8
Additional parts for mounting the bottle holder to the side of an EBC12 are available.
Applies analogously to the individual products of series EBC10/11/12 (Rev.3). As of 24.11.2014. Subject
to modification.
miniClima - Manual_EBC10-11-12(Rev.3)_en
10 / 54
