MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems Page 8
ENCLOSURES AND ACCESSORIES INSTALLATION INSTRUCTIONS
MOUNTING THE UNIVERSAL TYPE LOBBY/ENTRY PANEL

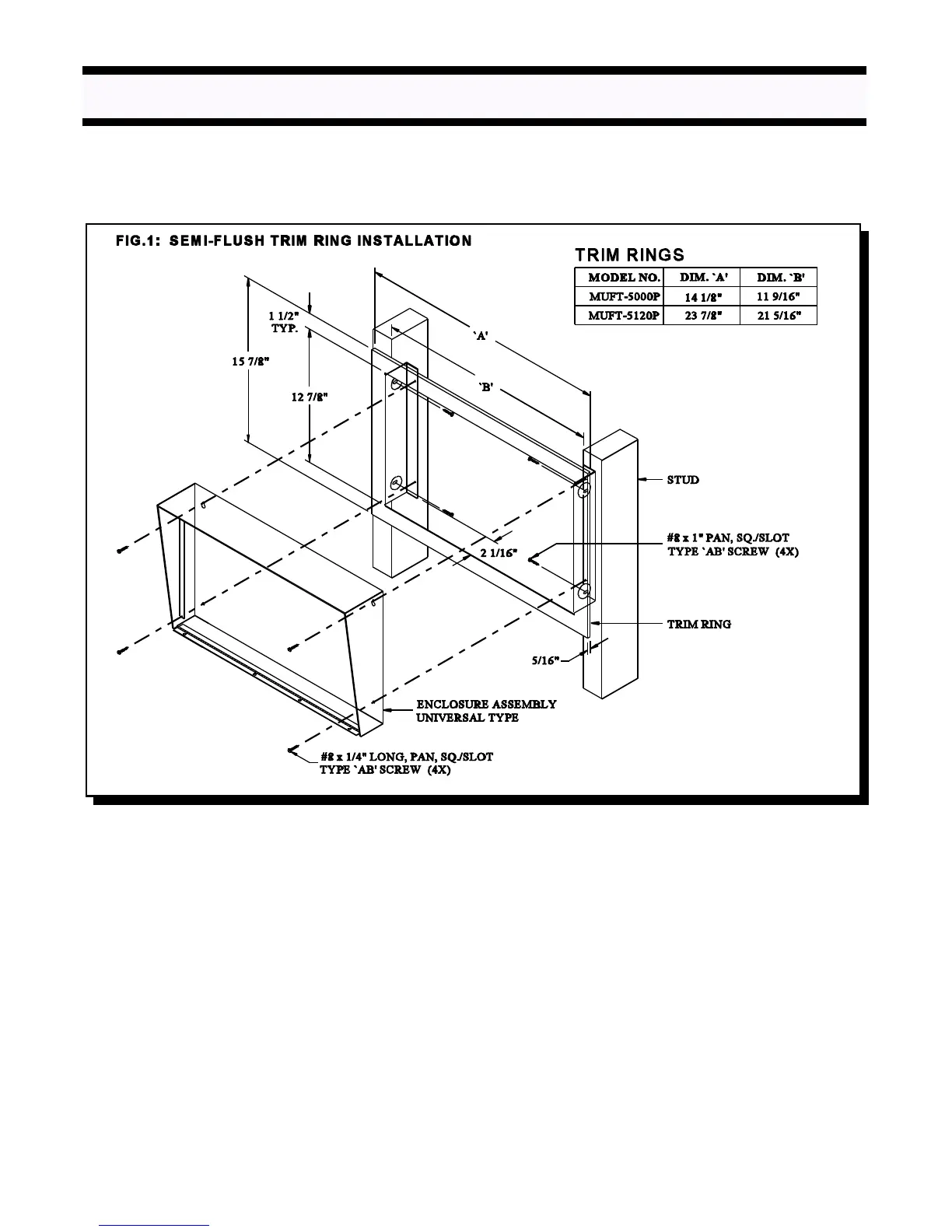

Mount the panel as shown in FIG.1, FIG.2, and FIG. 2A using the supplied screws.
