MIRCOM TECHNOLOGIES LIMITED,
ADC Series: Autodialer Telephone Access Systems
Page 15

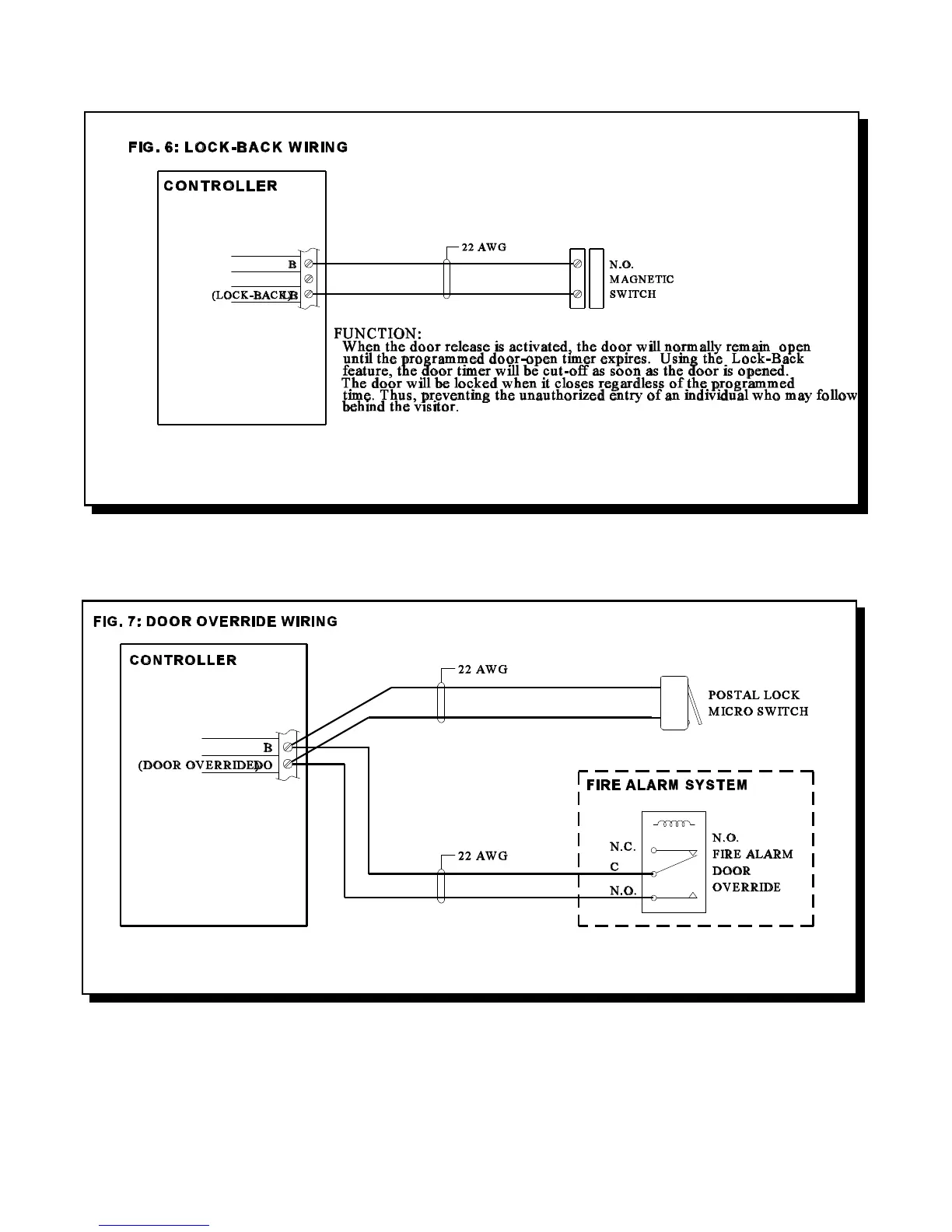

WIRING THE LOCK-BACK SWITCH
Wire the Lock-Back Switch as shown in FIG. 6 to enable automatic door-open timer cut-off.
WIRING THE DOOR OVERRIDE (Postal Lock & Fire Alarm)
Wire as shown on FIG.7.
