MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems Page 16

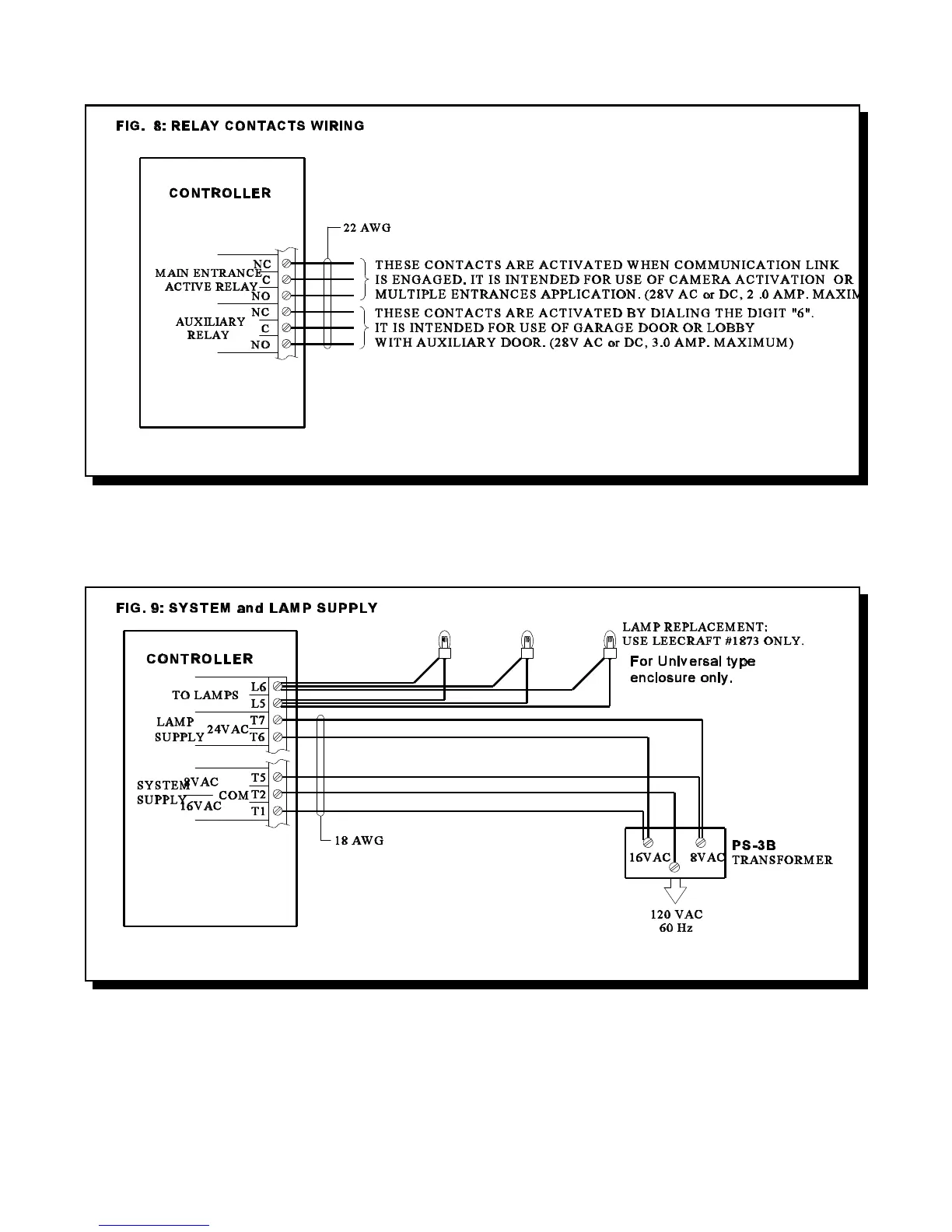

WIRING THE AUXILIARY RELAY and MAIN ENTRANCE ACTIVE RELAY CONTACTS
Wire as shown in FIG.8.
WIRING THE SYSTEM and LAMP SUPPLIES
Wire as shown in FIG. 9.
