MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems Page 11
MOUNTING THE THERMOSTAT HEATER KIT MODEL TH-101 (OPTIONAL)
Mount the Heater Kit according to the Fig 2B. Install the TH-101 Heater into bottom left hand corner of the universal
enclosure using the two spacers and two hex nuts provided. Use a pair of #18 AWG wires to connect from the TH-
101 unit to 24VAC tap on the PS-3B transformer. The transformer must be installed outside the enclosure.

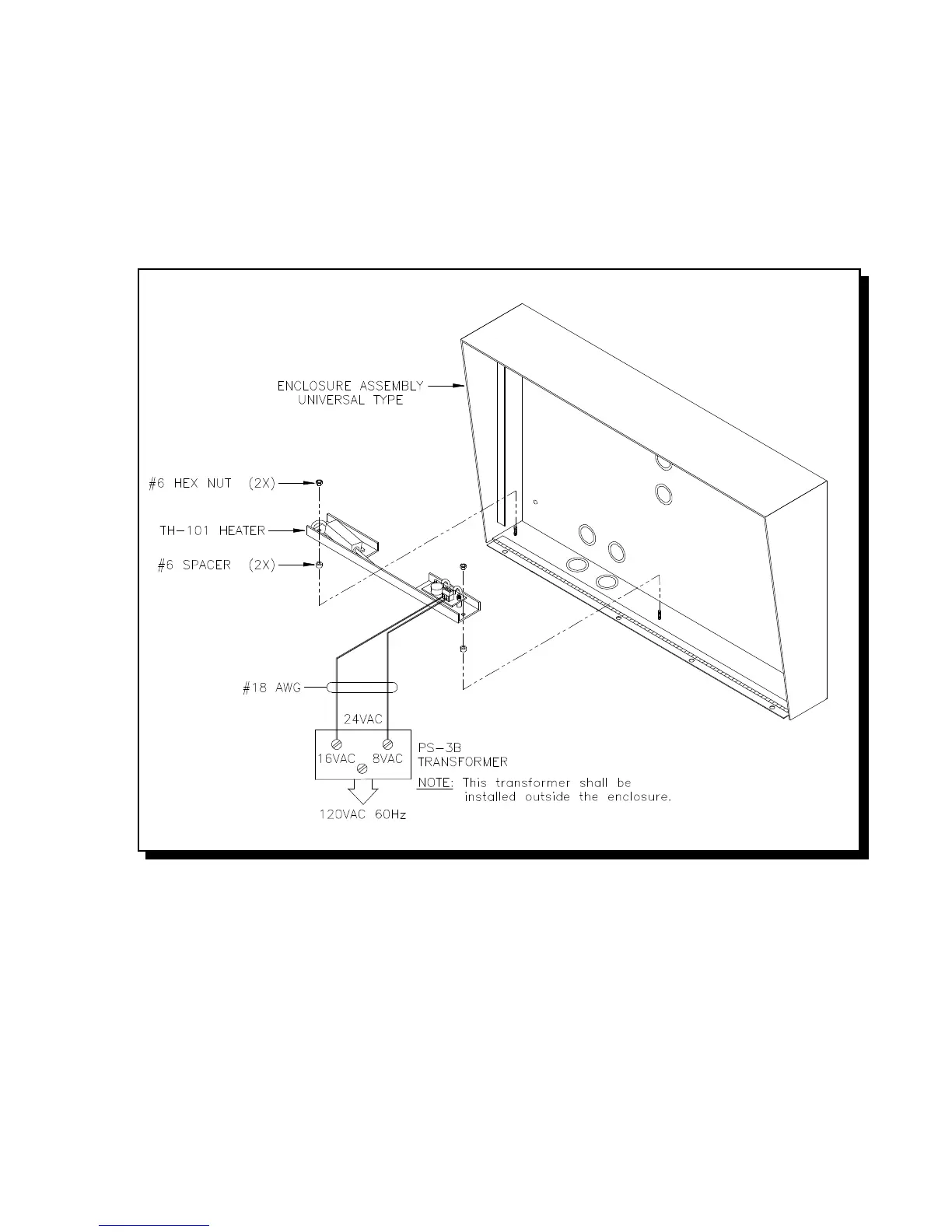

Fig. 2B HEATER INSTALLATION
