MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems Page 14
SYSTEM WIRING INSTRUCTIONS

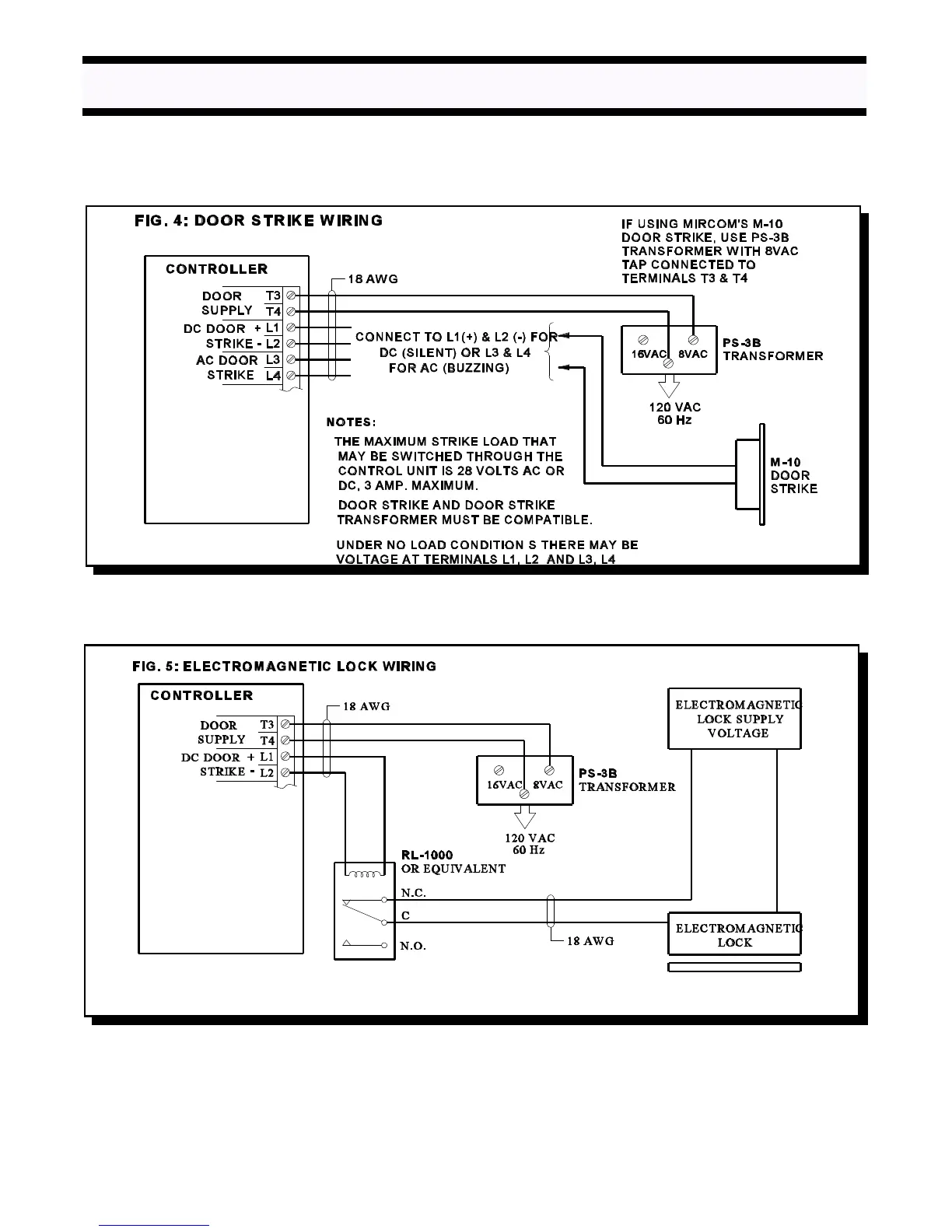

WIRING THE DOOR STRIKE
Wire the Door Strike as shown in FIG.4.
WIRING THE ELECTROMAGNETIC DOOR LOCK
Wire as shown in FIG. 5.
