`B'
`A'
2 3/8"
20 1/2"
1 7/16"
15 5/8"
WALL WALL
(SURFACE)
SIDE VIEW
(FLUSH)
SIDE VIEW
BOTTOM VIEW
FRONT VIEW
(SURFACE)
BOTTOM VIEW
(FLUSH)
5 15/16"
2"
1 5/16"
1"
1"
2 1/4" 2 3/16"
18 1/2"
1"
5/16"
7/8" & 1 1/8"
KNOCKOUTS (4X)
4 1/8"
PANEL MODEL NO.
MCS-6000, MCS-6000H, MPD-6240
MCS-6240, MCS-6240H, MPD-6480 23 5/8"
13 7/8"
DIM. `A'
DIM. `B'
9 3/16"
18 15/16"
BACKBOX (SURFACE)
BBS-6302
BBS-6301
WIDTH
13 11/16"
23 7/16"
HEIGHT
20 5/16"
20 5/16"
DEPTH
2 3/16"
2 3/16"
18 1/2"
18 1/2"
HEIGHT
BACKBOX (FLUSH)
BBF-6101
BBF-6102
11 1/4"
21"
WIDTH
2 3/16"
2 3/16"
DEPTH
20 5/16"
(DOOR NOT SHOWN)
BACKBOX
DOOR FRAME
BACKBOX

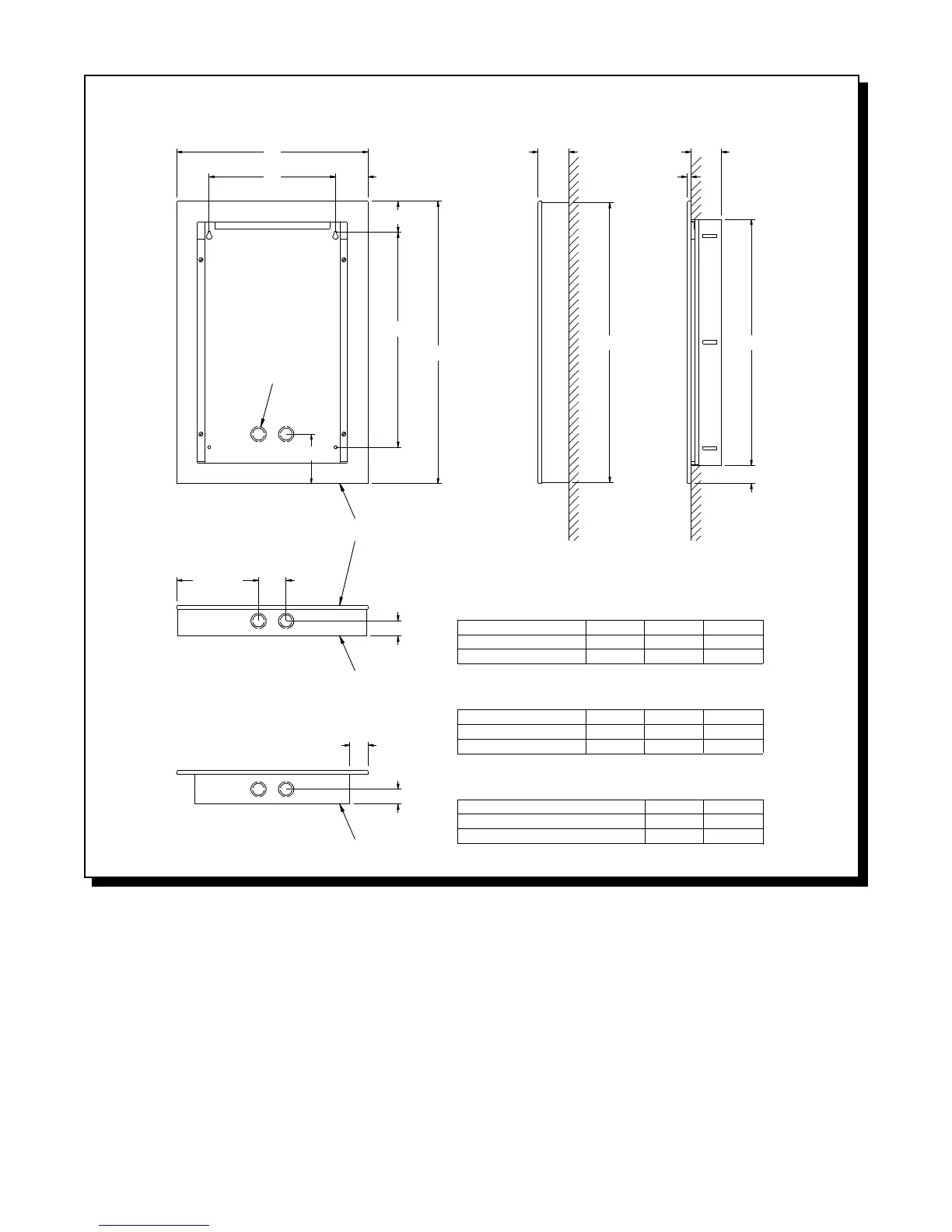

FIG. 3A: NON-SCROLLING DIRECTORY PANELS
MIRCOM TECHNOLOGIES LIMITED, ADC Series: Autodialer Telephone Access Systems Page 13
MOUNTING THE MAGNETIC LETTER KIT MLK-070 (OPTIONAL)
Mount the Magnetic Letter Kit according to the Installation Instruction (LT-460) that comes with the Kit. This kit is
used only for Continental type lobby/entry panel.
