Mircom QX-mini Programming Guide

Relay Input - QX-mini and FleX-Net™
39
8. Click next until the following window appears. Select appropriate stage, strobe protocol,
and select “Follow Sync Input” if NACs on QX-mini need to be in sync with NACs on
FACP.

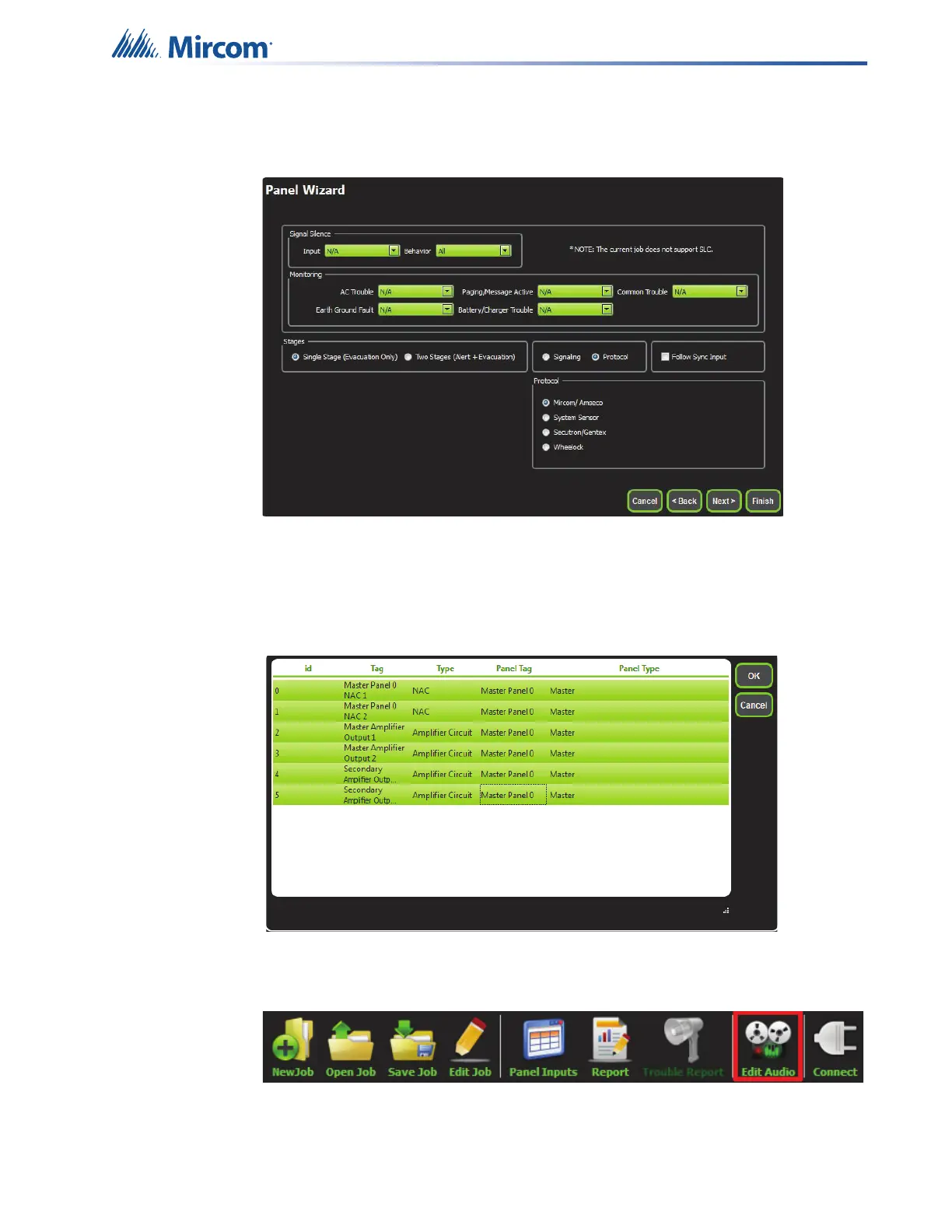

Figure 57 Follow sync input
Note: Signal silence cannot be performed via the relay input connection; this
feature is only available through an SLC connection with a Mircom
panel using addressable modules.
9. Create zones as per requirement and correlate them to NACs and speaker outputs.
Figure 58 Create zones
10. Click on “Edit Audio”.
Figure 59 Edit Audio button
