40
Relay Input - QX-mini and FleX-Net™
1
1.

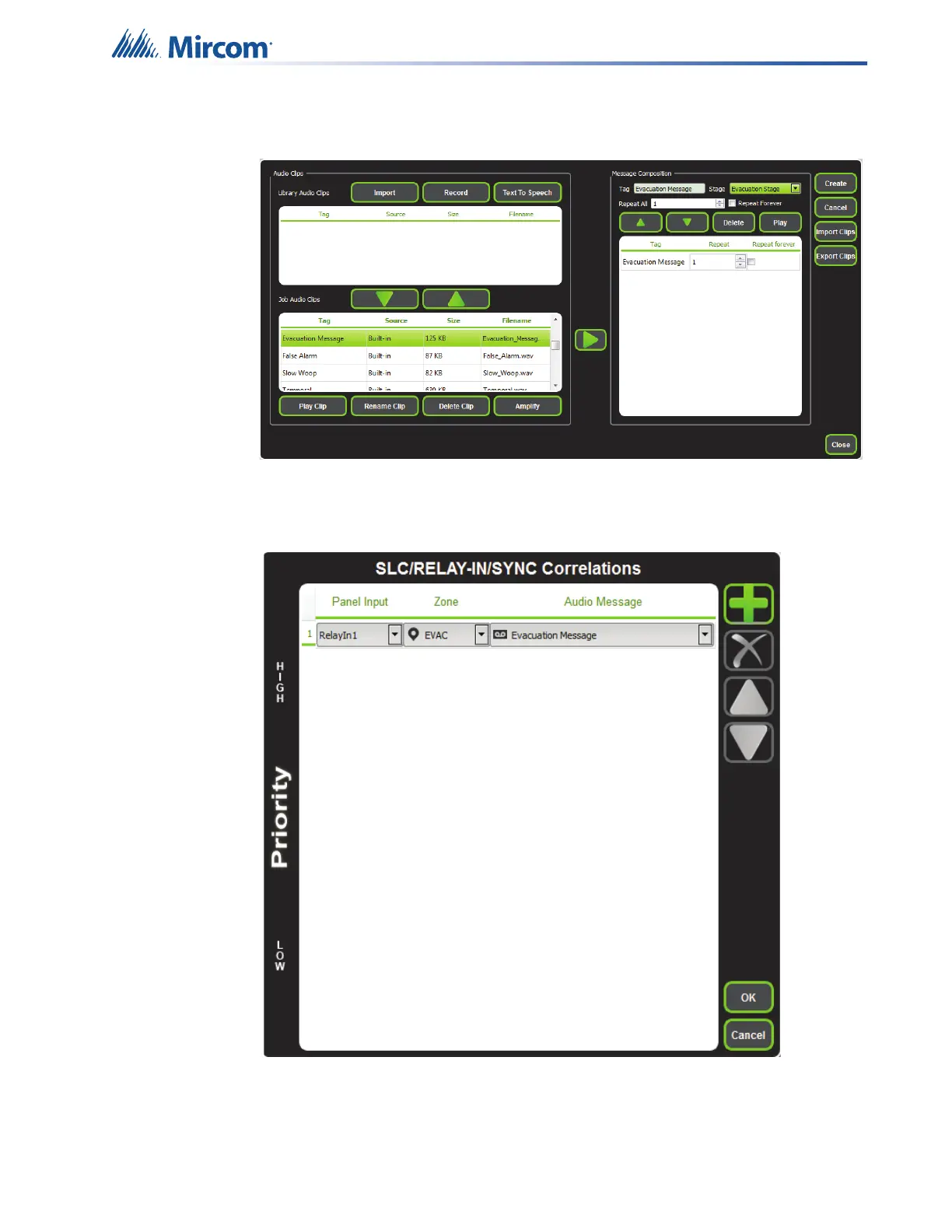

Click “Add” and create a message. Ensure that stage for Evac is selected from the drop
down.
Figure 60
Audio Clips
12.
Click on panel inputs, click on the ‘+’ sign. Select the relay input that has been wired to
activate EV
AC
zone.
Figure 61
SLC/R
ELA
Y
-IN/SYNC Correlations
39
41
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
5
2 Working with the Configurator
6
Creating a New Job
6
Panel Inputs
9
Configuring Audio Messages
10
Saving a Job
13
Connecting to a Panel
13
Sending a Job
14
Getting the Job
15
Backup Amplifier
15
3 Firmware Upgrade
17
4 SLC Integration - QX-Mini and Flex-Net™ - Two Stage
19
Introduction
19
Wiring
20
Configuration Steps
22
SLC Address Configuration
26
5 SLC Integration - QX-Mini and Flex-Net™ - Single Stage
27
Introduction
27
Wiring
28
Configuration Steps
29
SLC Address Configuration
34
6 Relay Input - QX-Mini and Flex-Net
35
Introduction
35
Wiring
36
Configuration Steps
37
7 SLC Integration - QX-Mini and FX-3500 - Two Stage
42
Introduction
42
Wiring
43
Sync-Class a
44
Sync-Class B
45
Configuration Steps
46
QX-Mini Steps
47
SLC Address Configuration
51
8 SLC Integration - QX-Mini and FX-3500 - Single Stage
52
Introduction
52
Wiring
53
Configuration Steps
55
Zone Correlations
59
SLC Address Configuration
59
9 Relay Input - QX-Mini and FX-3500
60
Introduction
60
Wiring
61
Configuration Steps
62
10 SLC Integration - QX-Mini and FX-2000 - Two Stage
66
Introduction
66
Wiring
67
Configuration Steps
69
SLC Address Configuration
74
11 SLC Integration - QX-Mini and FX-2000 - Single Stage
75
Introduction
75
Wiring
76
Configuration Steps
77
SLC Address Configuration
81
12 Relay Input - QX-Mini and FX-2000
82
Introduction
82
Wiring
83
Configuration Steps
84
13 QAS-2X8 Splitter Configuration - QX-Mini and FX-3500 - Two Stage
89
Introduction
89
Wiring
90
Configuration Steps
90
SLC Address Configuration
100
