Mircom QX-mini Programming Guide

Relay Input - QX-mini and FX-3500
63
9.3.2 QX-mini Steps
1. Open MGC ECS configurator.
2. Open an existing job or create a new job.
3. Select a unique password that will be assigned to the job specifically.
4. Define timing for page inhibit delay as per local requirement.
5. Select either Class A or Class B depending on the inter-panel wiring.
6. Click on “New Job” or “Edit Job” for an existing file and choose “None” under SLC type.

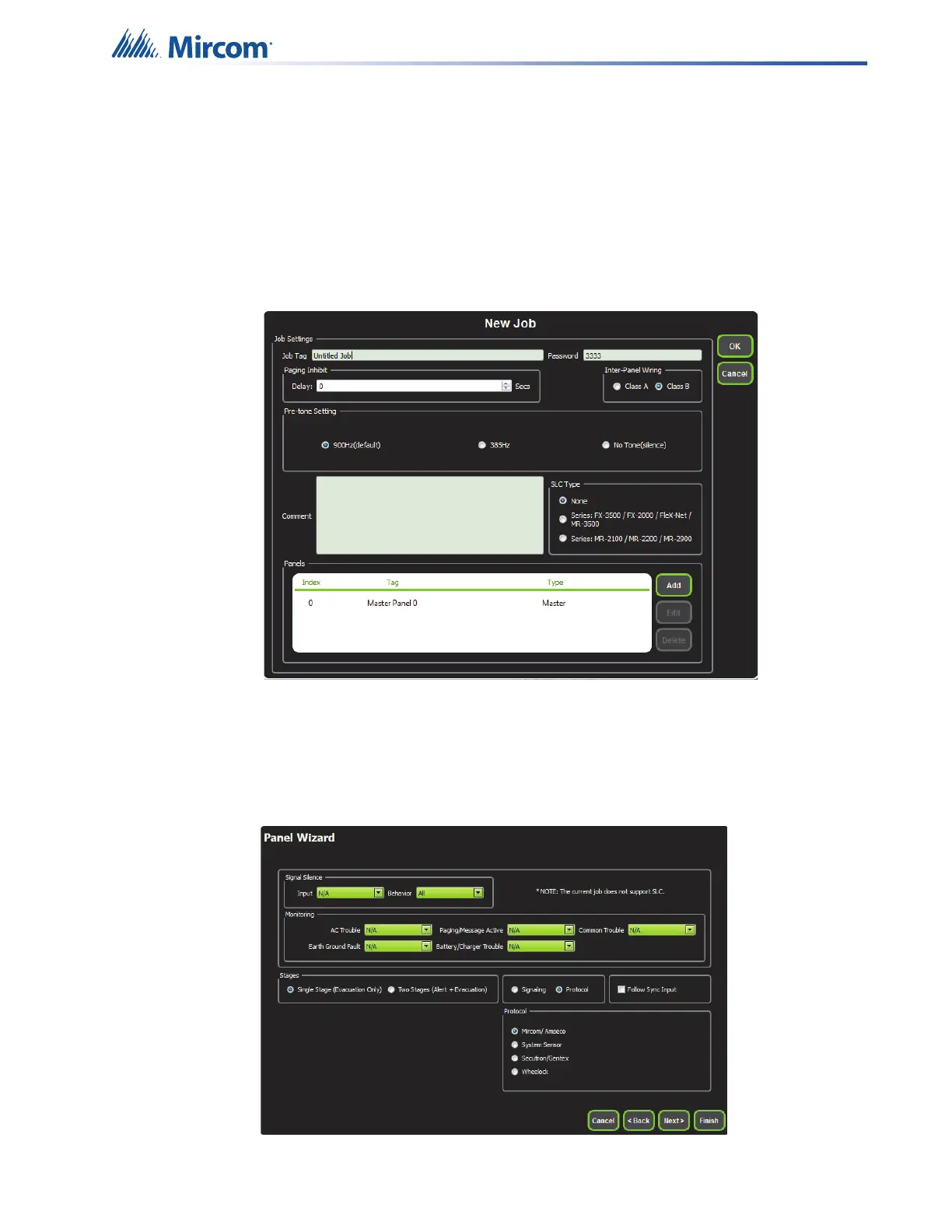

Figure 90 New Job window
7. Click on “Master Panel 0” and then click “Edit”
8. Click next until the following window appears. Select appropriate stage, strobe protocol,
and select “Follow Sync Input” if NACs on QX-mini need to be in sync with NACs on
FACP.
Figure 91 Follow sync input
