Relay Input - QX-mini and FX-3500
65
12. Click on panel inputs, click on the ‘+’ sign. Select the relay input that has been wired to
activate EVAC zone.

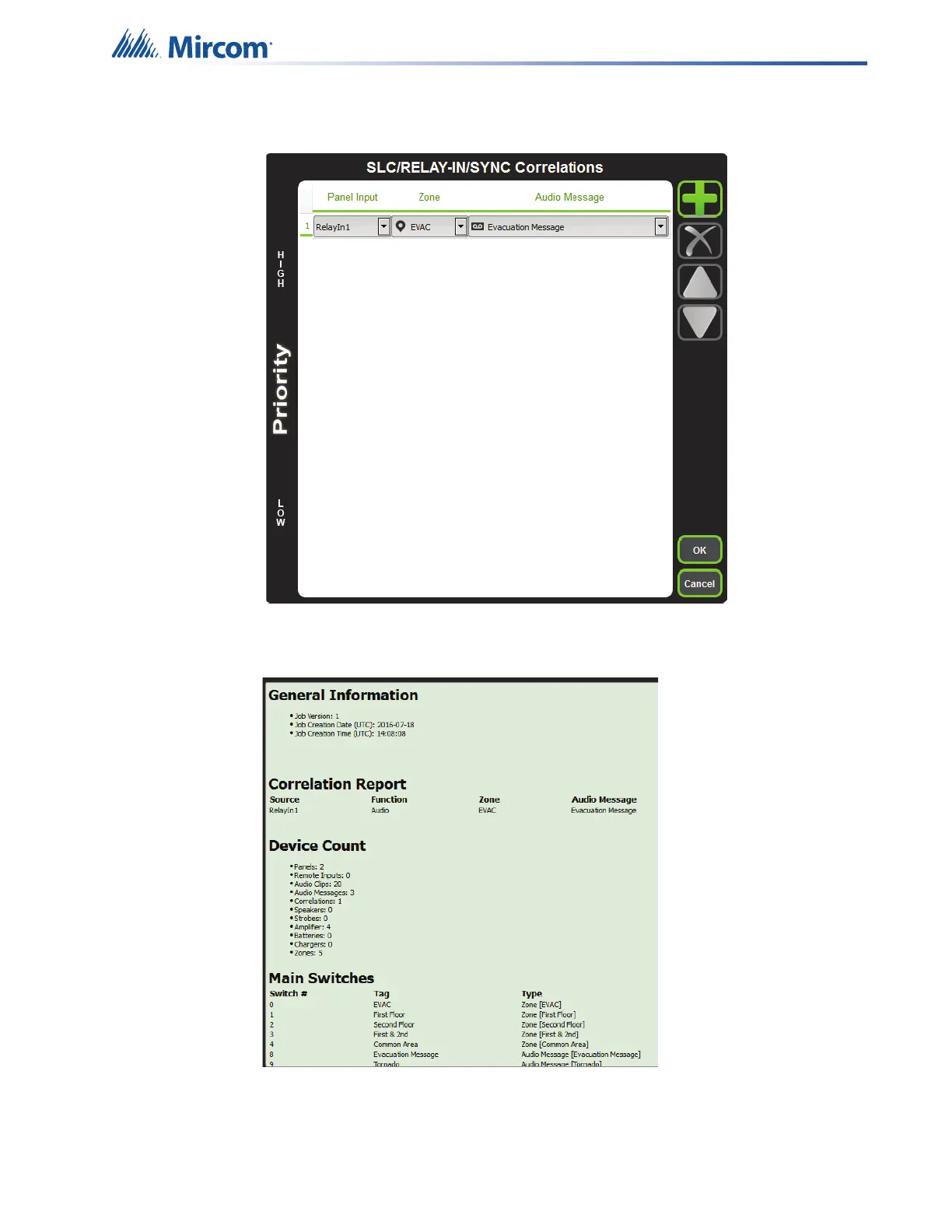

Figure 95 SLC/RELAY-IN/SYNC Correlations
13. All the correlations in job file can be viewed in “Report” as shown below.
Figure 96 Report
14. Save the job, connect to QX-mini and send the job.
15. After job has been successfully sent to the panel, disconnect the USB connector.
