Working with the Configurator
7
6. In the Edit Job window, click “Master Panel 0” then click “Edit” to make further changes
to the job. Click “Add Zone Selector” if an extra zone selector has been installed.
Microphone gain can be selected as per requirements.

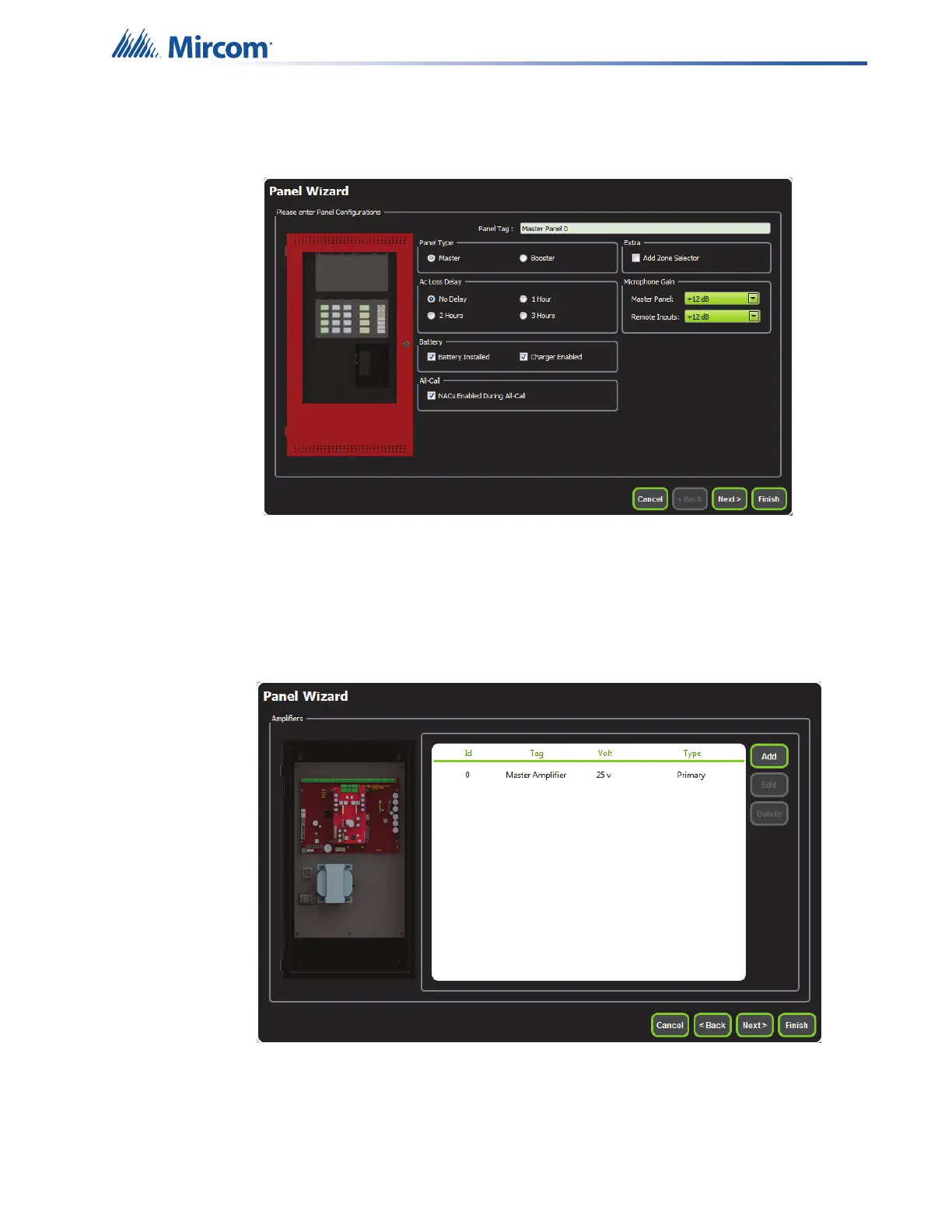

Figure 3 Edit Job window
Note: "NAC's enabled during All-Call" feature allows strobes to flash while
paging. If strobes are not required to flash during ‘all call’, this feature
must be unselected.
7. Primary amplifier is included in the job by default. If a second amplifier has been
installed, it can be configured by clicking “Add” under the “Amplifiers” window.
Figure 4 Amplifiers window
