Mircom QX-mini Programming Guide

SLC Integration - QX-mini and FX-2000 - Single Stage
79
8. Click next until the following window appears. Choose corresponding addresses as
FACP for each reporting function. See section 11.4 on page 81 for details.

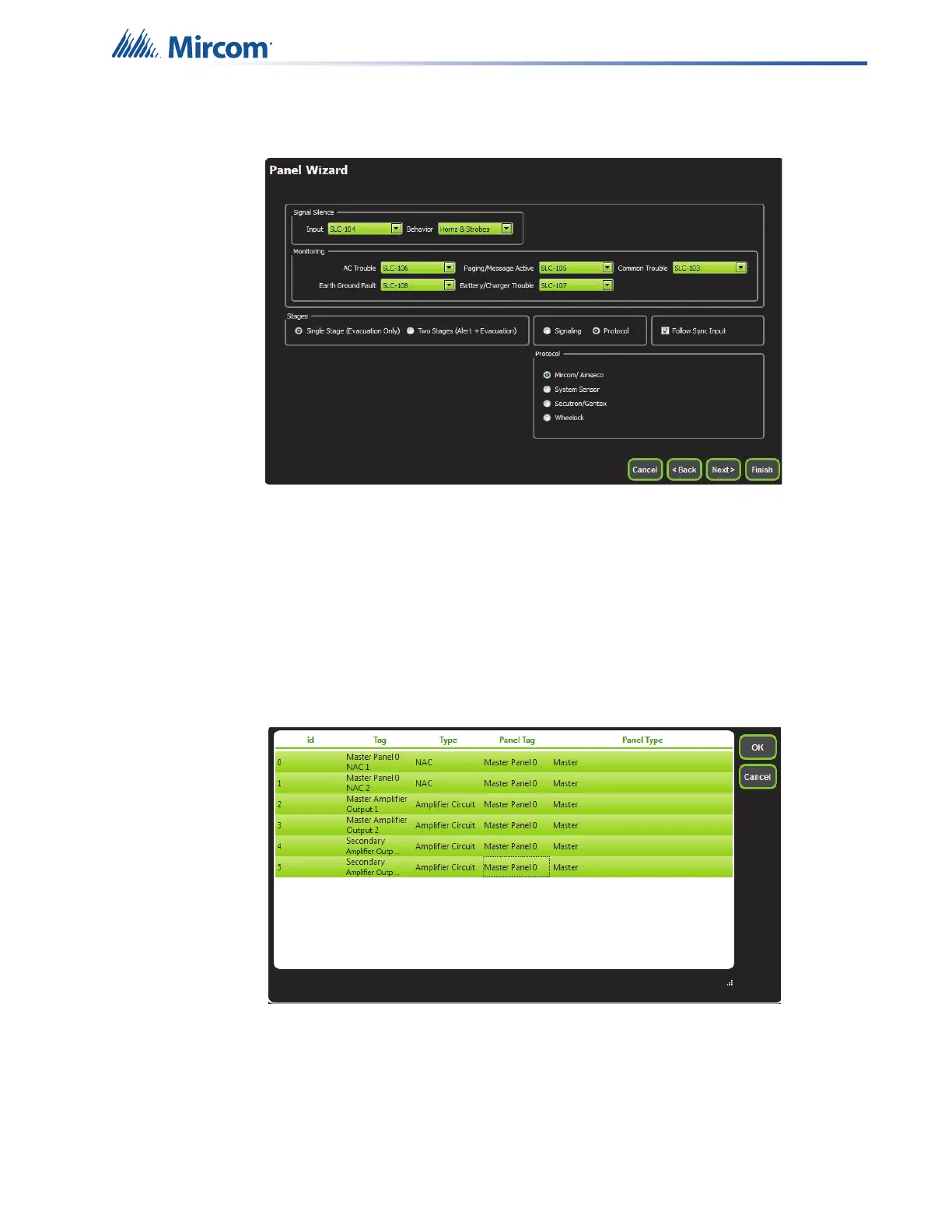

Figure 115 Configure all the reporting addresses corresponding to addresses on
FACP.
Note: Under signal silence, three different behaviors are available for
selection: All, Speakers, Horn & Strobes. “All” turns off all the outputs,
“Speakers” turns off speaker outputs only, and “Horn & Strobes” turns
off NACs when signal silence on FACP is pressed.
9. If NACs on FACP need to be in sync with NACs on QX-mini, select appropriate stage,
strobe protocol, and select “Follow Sync Input”
10. Create a zone for EVAC. Correlate the NACs and amplifier outputs to that zone and
assign an audio message.
Figure 116 Create zones
