QAS-2X8 Splitter Configuration - QX-mini and FX-3500 - Two Stage
97
4. Click “OK” to close the “Edit Job” or “New Job” window.
Add Inputs for Splitter Outputs
1. In the “Zones” section on the left, right-click “Master Splitter Output 1” under “Floor 1
Alert” and select “Add input for splitter output”.

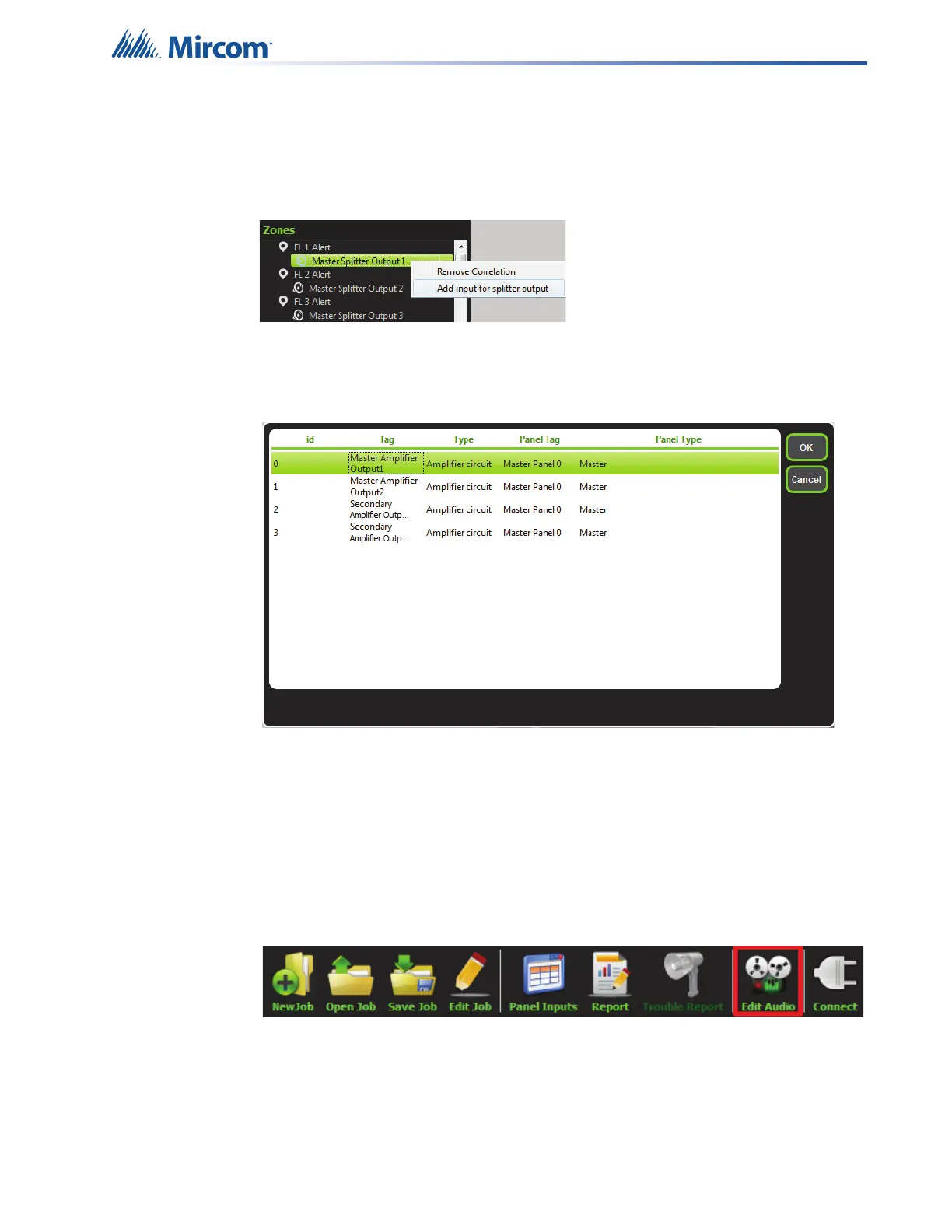

Figure 137 Add input for splitter output
2. In the window that appears, select the output that acts as an input to this zone, then click
“OK”.
Figure 138 Select Master Amplifier Output 1
3. Do the same for the other zones.
In the example shown in Table 2, Master Amplifier Output 1 serves as input to the alert
zones, and Secondary Amplifier Output 1 serves as input to the evacuation zones.
4. Click “OK” to close this window.
Create Messages
1. Click “Edit Audio”.
Figure 139 Edit Audio button
2. Click “Add” and create an alert and evacuation message based on the requirements.
Ensure that the correct stage is selected from the “Stage” menu as shown in Figure 140.
