QAS-2X8 Splitter Configuration - QX-mini and FX-3500 - Two Stage

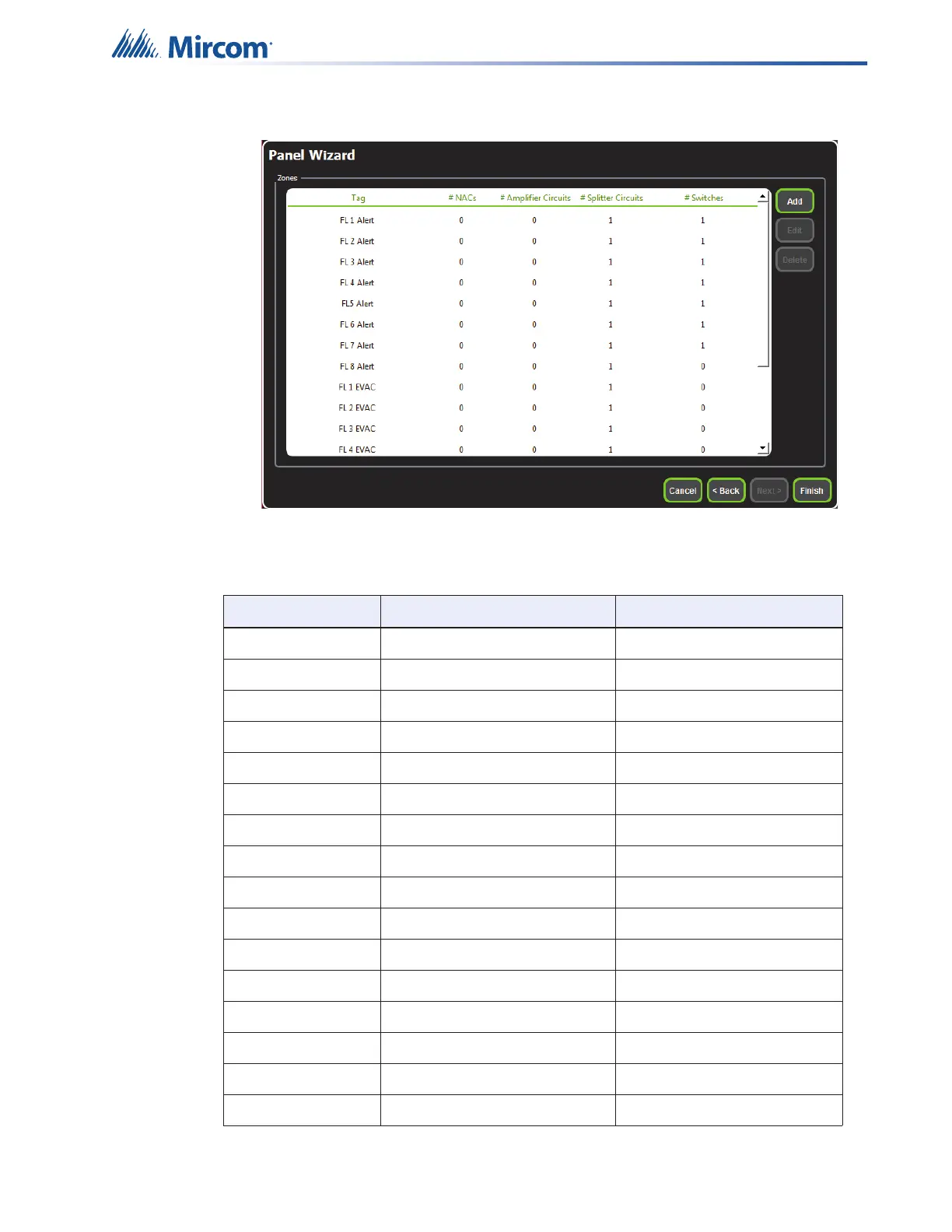

Figure 136 Create zones

3. In the Panel Wizard, click “Finish”.

Table 2 Alert and Evac Zones Example

Zone Master Splitter Output Amplifier Output

Floor 1 Alert Master Splitter Output 1 Master Amplifier Output 1

Floor 2 Alert Master Splitter Output 2 Master Amplifier Output 1

Floor 3 Alert Master Splitter Output 3 Master Amplifier Output 1

Floor 4 Alert Master Splitter Output 4 Master Amplifier Output 1

Floor 5 Alert Master Splitter Output 5 Master Amplifier Output 1

Floor 6 Alert Master Splitter Output 6 Master Amplifier Output 1

Floor 7 Alert Master Splitter Output 7 Master Amplifier Output 1

Floor 8 Alert Master Splitter Output 8 Master Amplifier Output 1

Floor 1 Evac Master Splitter Output 1 Secondary Amplifier Output 1

Floor 2 Evac Master Splitter Output 2 Secondary Amplifier Output 1

Floor 3 Evac Master Splitter Output 3 Secondary Amplifier Output 1

Floor 4 Evac Master Splitter Output 4 Secondary Amplifier Output 1

Floor 5 Evac Master Splitter Output 5 Secondary Amplifier Output 1

Floor 6 Evac Master Splitter Output 6 Secondary Amplifier Output 1

Floor 7 Evac Master Splitter Output 7 Secondary Amplifier Output 1

Floor 8 Evac Master Splitter Output 8 Secondary Amplifier Output 1
