Mircom QX-mini Programming Guide

QAS-2X8 Splitter Configuration - QX-mini and FX-3500 - Two Stage
95

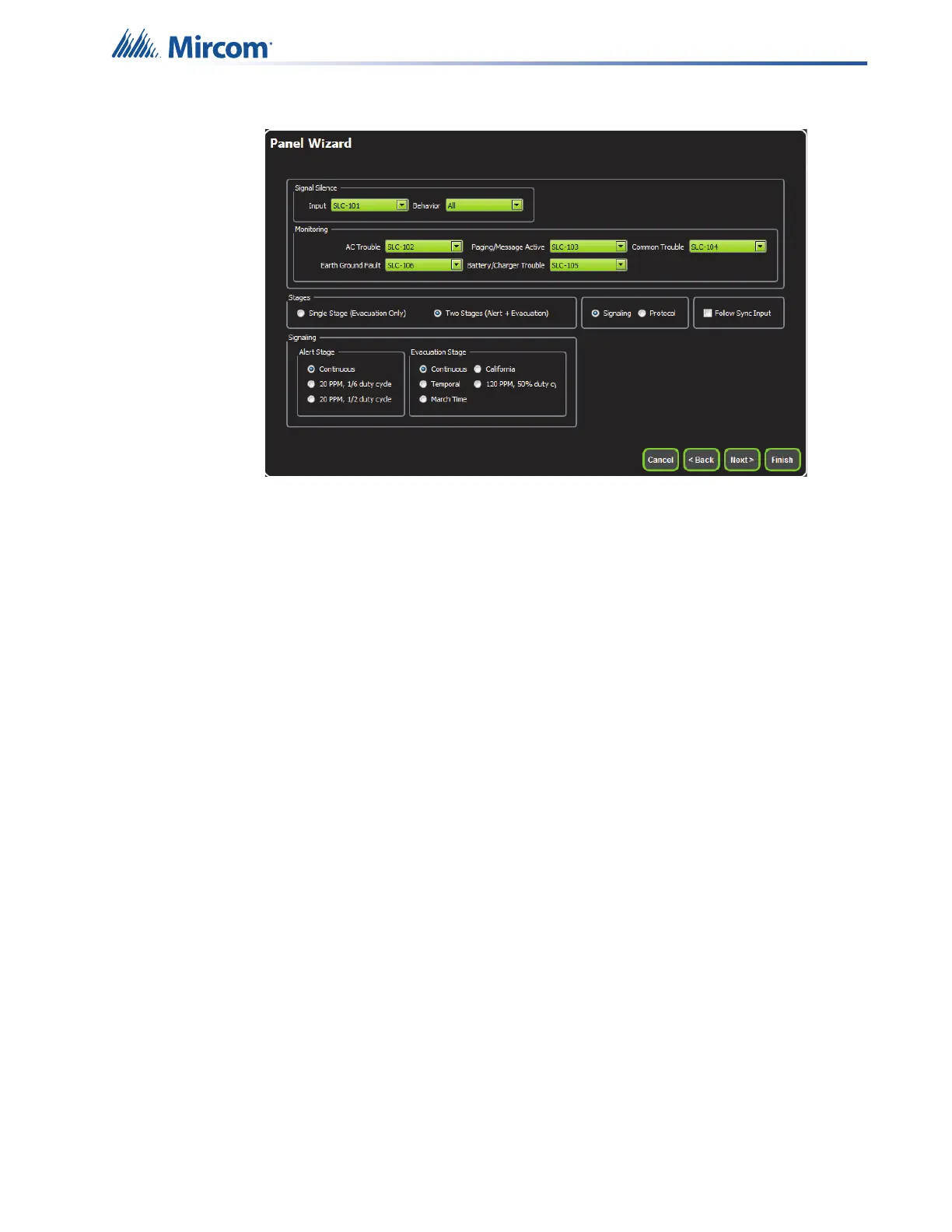

Figure 135 Configure all the reporting addresses corresponding to addresses on
FACP
Note: Under signal silence, three different behaviors are available for
selection: All, Speakers, Horn & Strobes. “All” turns off all the outputs,
“Speakers” turns off speaker outputs only, and “Horn & Strobes” turns
off NACs when signal silence on the FACP is pressed.
11. If the NACs on the FACP need to be in sync with the NACs on the QX-mini, select the
appropriate stage and strobe protocol, and select “Follow Sync Input”.
Create Zones and Correlate them to Master Splitter Outputs
1. In the Panel Wizard, click “Next” until the window shown in Figure 136 appears.
2. Create zones as per the requirement and correlate them to NACs and speaker outputs.
In this example, there are 8 evacuation zones and 8 alert zones, for a total of 16 zones.
See Table 2.
The alert zones are labeled “Floor 1 Alert” to “Floor 8 Alert” and each one is correlated
with a different Master Splitter Output.
The evacuation zones are labeled “Floor 1 Evac” to “Floor 8 Evac” and each one is
correlated with a different Master Splitter Output.
Note: The amplifier outputs shown in Table 2 are correlated in the next step.
