16

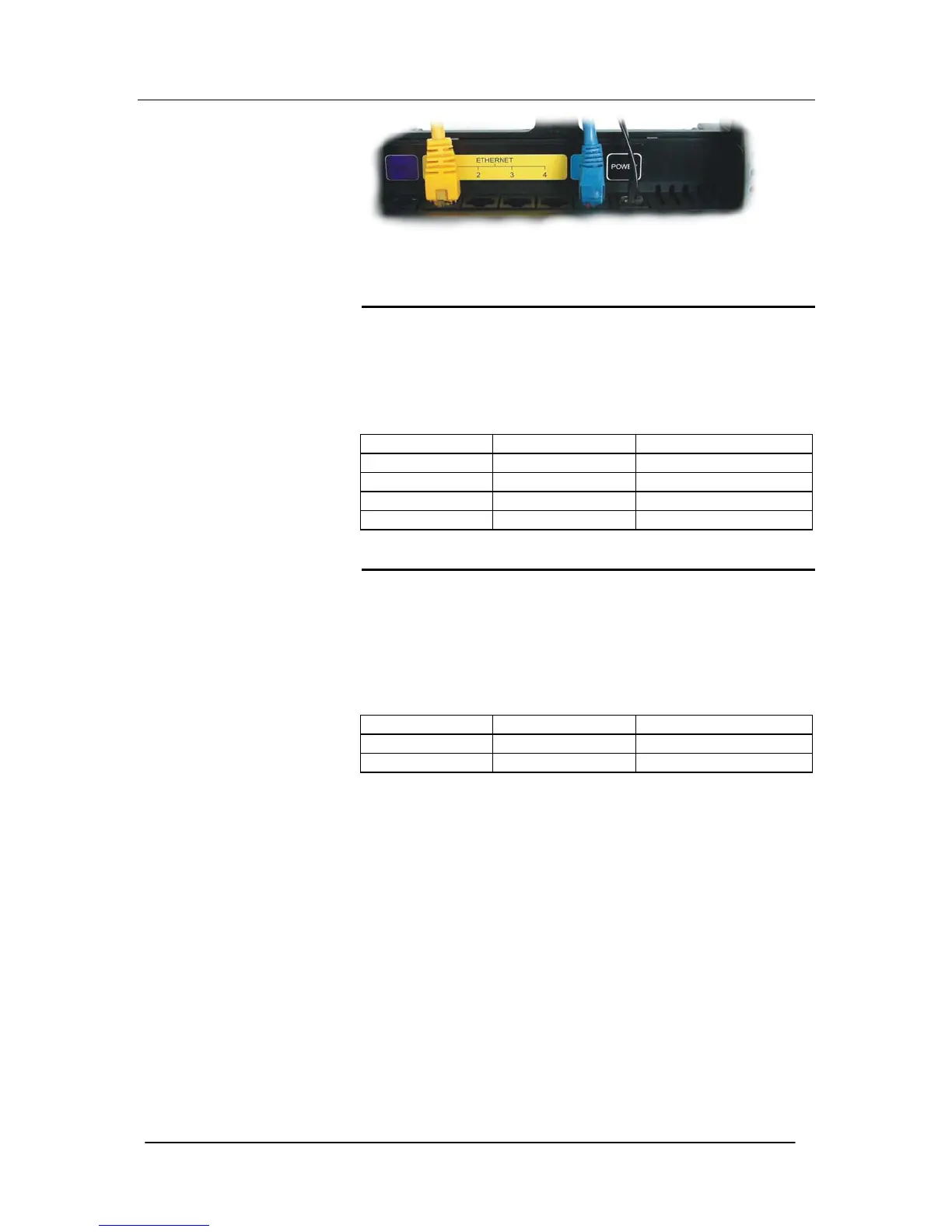

Program as an IP Gateway see page 83.
Cabling Featurephone
The Featurephone can be connected directly to the system using
the telephone cord. If you wish to locate the phone further away
from the Mitel 1000 you can do so by running telephone cable and
using telephone sockets.
Four wires are needed to connect the Feature phones
Socket Pin Out Function RJ11 Pin Out
A Speech Pin 3
B Speech Pin 4
C Data Pin 2
D Data Pin 5
Cabling Standard telephones
Standard telephones can be connected directly to the system using
the telephone cord. If you wish to locate the phone further away
from the Mitel 1000 you can do so by running telephone cable and
using telephone sockets. It is recommended that two pair cable is
used with the same connections as for a Featurephone. You can
however use a single pair.
Socket Pin Out Function RJ11 Pin Out
A Speech Pin 3
B Speech Pin 4
