6 UTILITY PACKAGE (GX Configurator-PT)

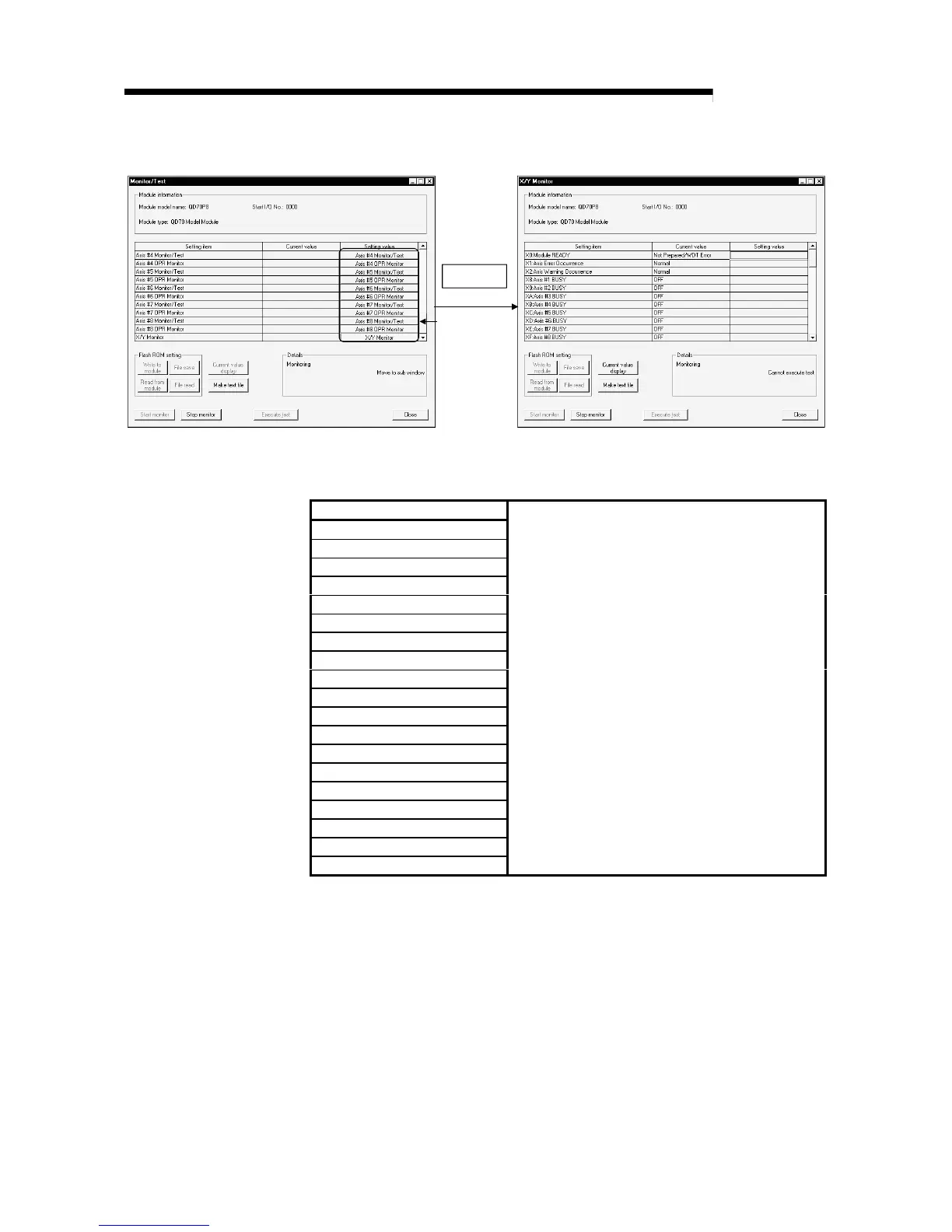

<X/Y Monitor>
Move to
sub window
X/Y Monitor
Select items
to be moved
to sub window.
[Explanation of items]
(1) Setting item list
Setting item
Module READY
PLC READY
Axis Error Occurrence
Axis Warning Occurrence
Axis #1 BUSY
to
Axis #n BUSY
Axis #1 Error Status
to
Axis #n Error Status
Axis #1 Warning Status
to
Axis #n Warning Status
Axis #1 Monitor/test
Axis #1 OPR Monitor
to
Axis #n Monitor/test
Axis #n OPR Monitor
X/Y Monitor
n indicates the axis No.
QD70P4: 1 to 4 QD70P8: 1 to 8
(2) Contents of the screen display
Setting item : Displays the I/O signal or buffer memory name.
Current value : Displays the I/O signal status or present buffer memory value for
monitoring.
Setting value : Select or enter a value to be written to the buffer memory with a
test operation (Axis Error Reset).
