MELSEC-Q
6 UTILITY PACKAGE (GX Configurator-PT)
(3) Explanation of the command buttons
Current value display
Displays the current value of the selected item.
(This command button is used to check text that
cannot be displayed in the current value field.
However, in this utility package, all items can be
displayed in the display fields).
Make text file
Makes a file consisting of the displayed screen
contents in a text file format.
Start monitor
/ Stop monitor
Selects whether or not to monitor the current
values.

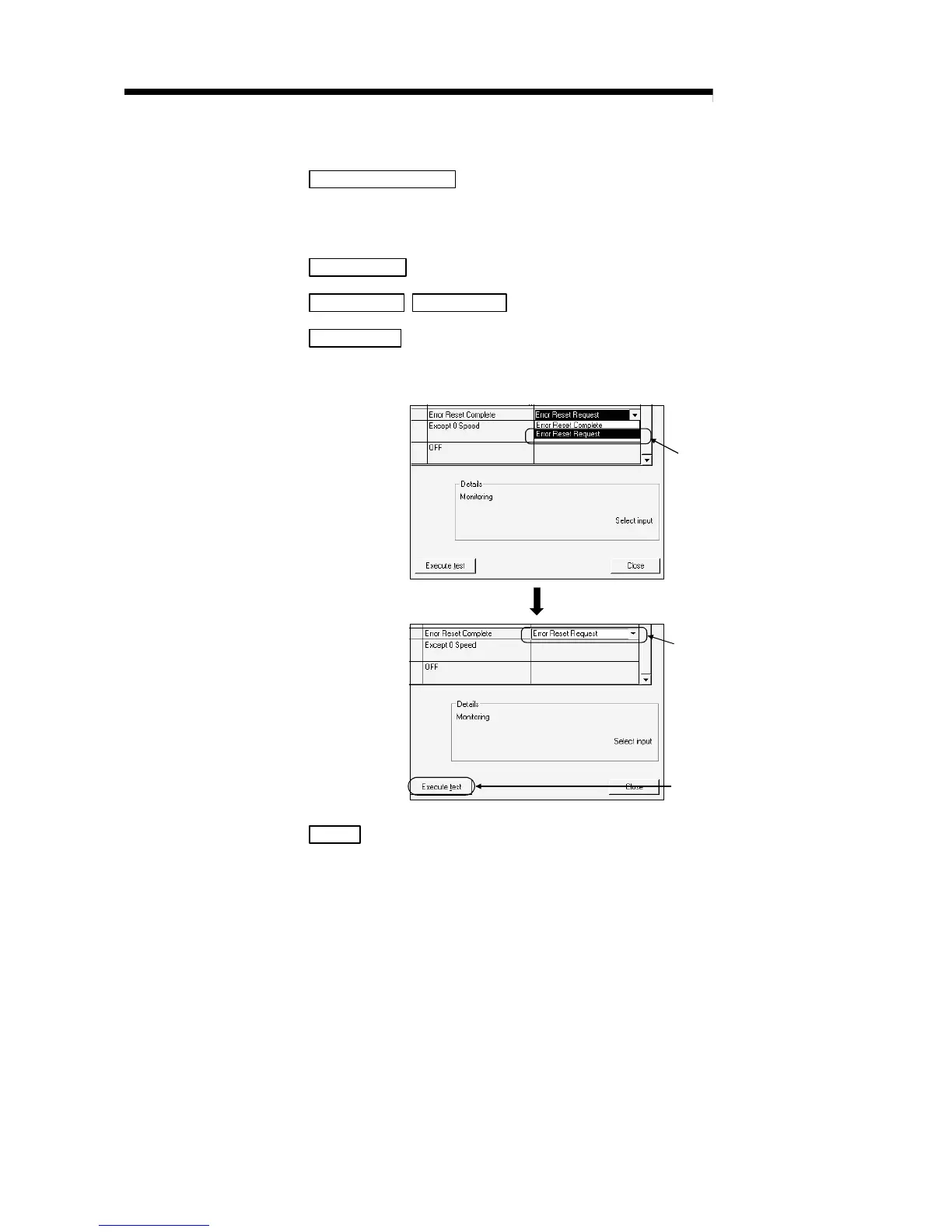

Execute test
Tests the selected item (Axis Error Reset).
Click this button after selecting "Error Reset
Request" in the Setting value field of "Axis Error
Reset" on the Axis monitor/test sub window.
Select "Error Reset Request
Place cursor at "Error Reset
Request"
Click "Execute test"
Close
Closes the currently displayed screen and
returns to the previously displayed screen.
