9 - 14 9 - 14
MELSEC-Q
9 POSITIONING CONTROL

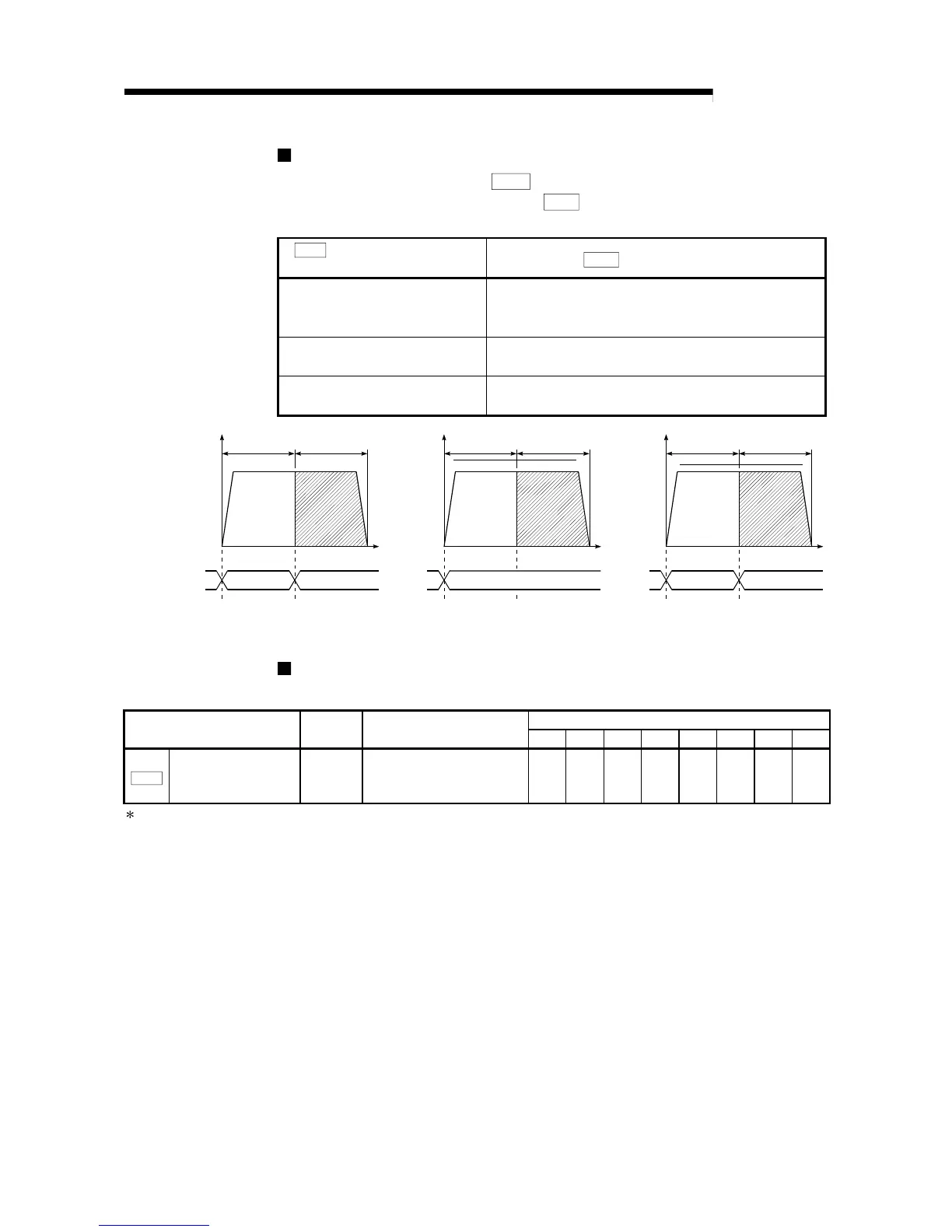

Current feed value during speed-position switching control (INC mode)
The following table shows the "
Md. 1
Current feed value" during speed-position
switching control corresponding to the "
Pr. 4
Current feed value during speed
control" settings.
"
Pr. 4
Current feed value during
speed control" setting
Md. 1
Current feed value
0: No update
The current feed value at control start is maintained during
speed control, and updated from the switching to position
control.
1: Update
The current feed value is updated during speed control
and position control.
2: Clear to 0 and no update
The current feed value is cleared (set to "0") at control
start, and updated from the switching to position control.
t
0
Updated from 0
t
Speed
t
Position control
Maintained
Updated
Speed control
Speed
Position control
Speed control
Speed
Position control
Speed control
Updated
(
a
)
Current feed value not updated
(
b
)
Current feed value updated
(
c
)
Current feed value zero cleared
Speed-position switching signal setting
Set the following item to use the speed-position switching signal "CHG".
Buffer memory address
Setting item
Setting
value
Setting details
Axis 1 Axis 2 Axis 3 Axis 4 Axis 5 Axis 6 Axis 7 Axis 8
Cd. 5
Speed-position switching
request
1
Set "1: Validates (enables) the
speed-position switching
signal".
54 154 254 354 454 554 654 754
Refer to "Section 4.7 List of control data" for more information on the setting details.
