IPB-5000A
5. Installation and Connection
5-3
Be sure to use SK-05741 [SENS] cable when connecting IPB-5000
ith Welding Transformer ITD-360A6 or ITB-780A6 (See 11.(2)③ for
[SENS] cable).
Be sure to ground the equipment.
Be sure to install the Terminal Cover after wiring.
Be sure to install an earth leakage breaker of 40A rated current
or more.

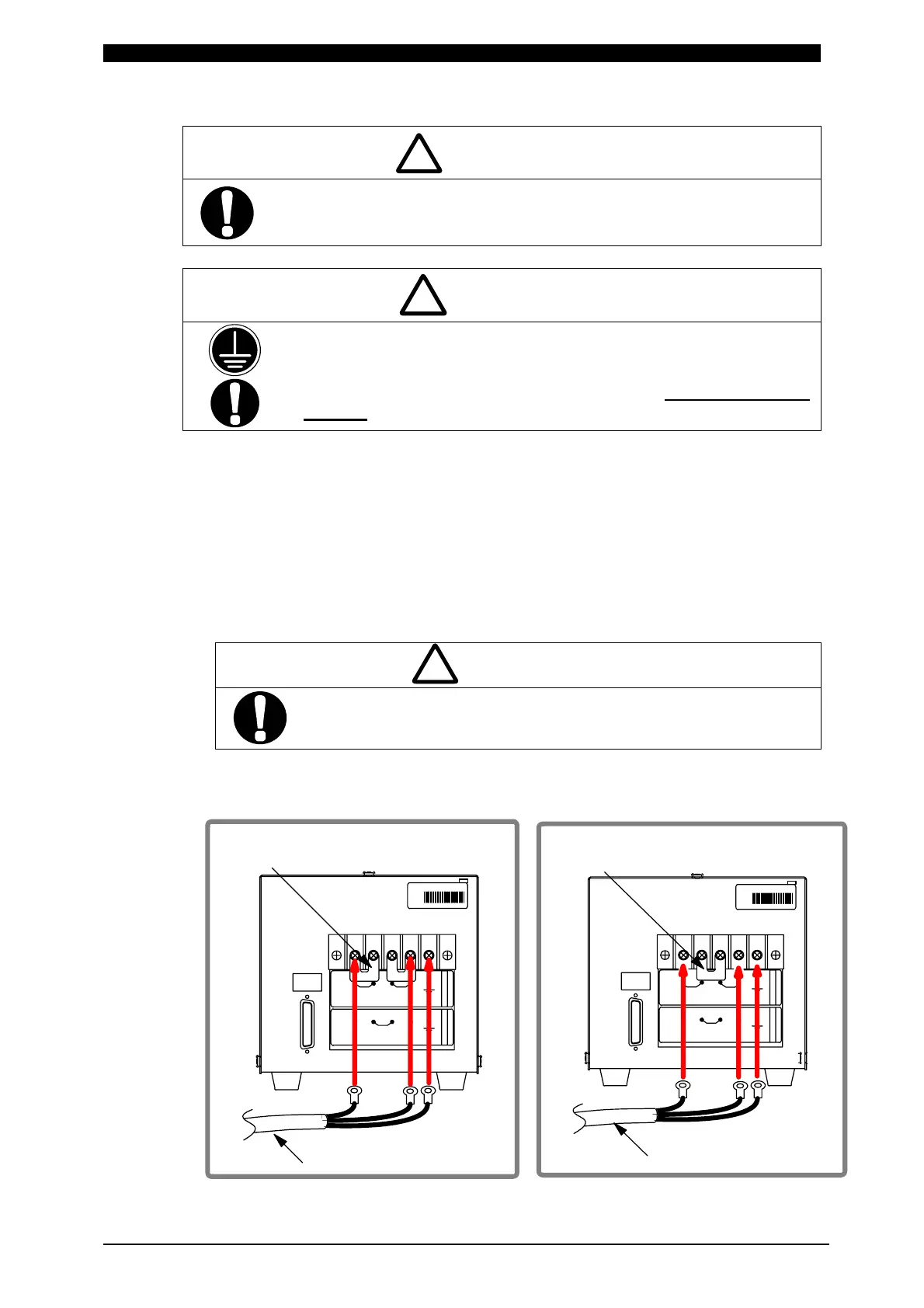

(1) Connecting Input Terminal Block of transformer.
Connect the Output Cable from the Input Terminal Block of the welding
transformer to the Terminal block for Welding Power Output (See 4.(2)⑤)
on the rear panel of IPB-5000A.
The ways of connecting the Input Terminal Block of Welding Transformer are
different from each other, depending on the input voltage of IPB-5000A.
Connect in such way as ① below in the case of 200V System (200 to 240V)
and as ② in 400V System (380 to 480V).
If the connection is done as the figure ① below in the case of
400V System, it may damage IPB-5000A or Welding Transformer.
① IPB-5000A-00-00 for use ② IPB-5000A-00-01 for use
(200V System Power Supply) (400V System Power Supply)
CAUTION
!
WARNIN
!
SENS
SERIAL
NO.
JAPAN
MIYACHI TECHNOS CORP.
MADE
IN
A1
SHORT
短絡
1234 5
5
SHORT
短絡
SHORT
短絡
INPUT
入力
INPUT
入力
INPUT
入力
INPUT
入力
Welding Transformer
Input Terminal Block
Output Cable
Short Circuit Piece
SENS
SERIAL
NO.
JAPAN
MIYACHI TECHNOS CORP.
MADE
IN
A1
SHORT
短絡
1234 5
5
SHORT
短絡
SHOR T
短絡
INPUT
入力
INPUT
入力
INPUT
入力
INPUT
入力
Welding Transformer
Input Terminal Block
Output Cable
Short Circuit Piece
CAUTION
!
To Next Page
