CONNECTION WITH a YEOMAN TYPE PLOTTER

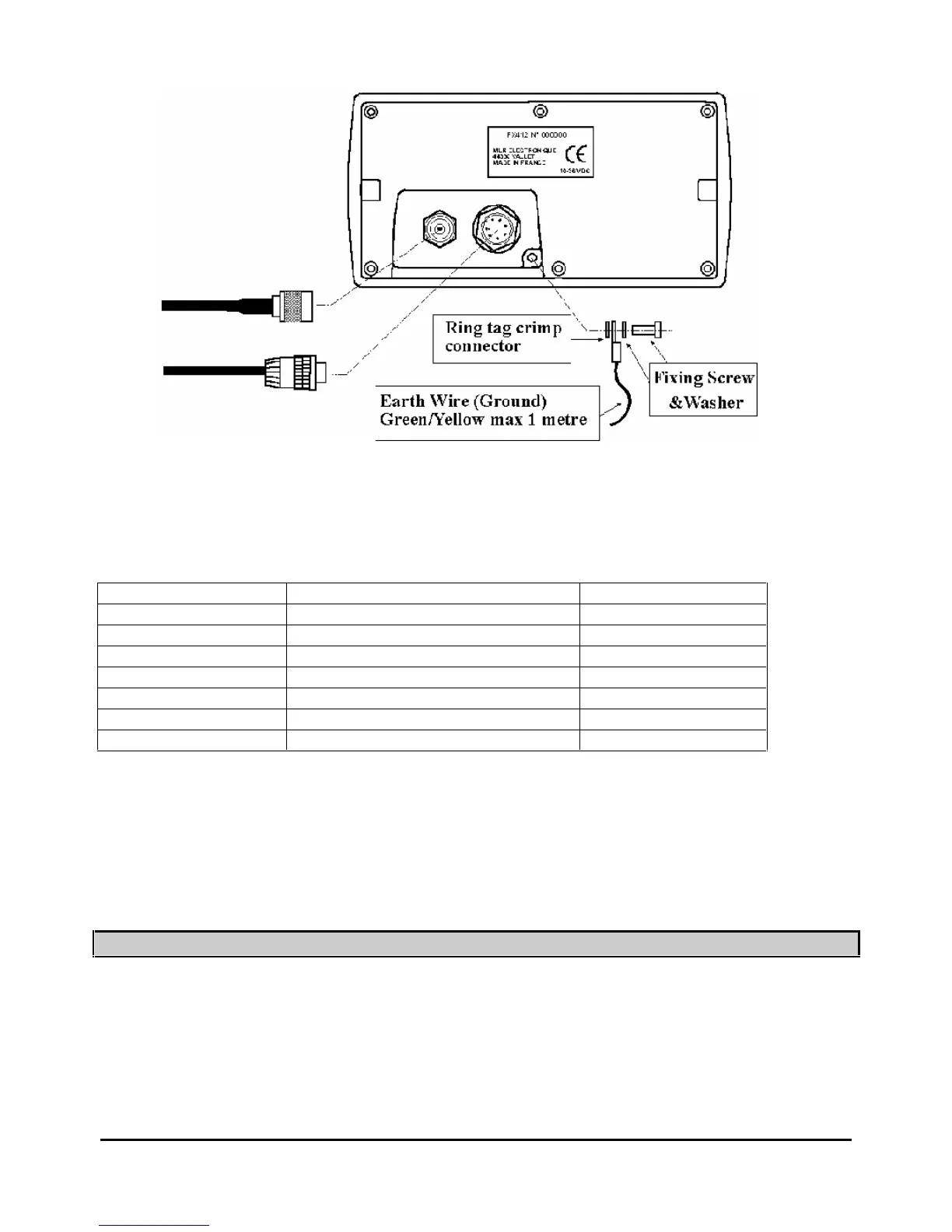

To construct your electronic chart from a YEOMAN plotter connect it to your FX312 as detailed
below:
FX312/FX412 Wiring
FX312/FX412 Designation
Yeoman Wiring
Blue
- 0 Volt
Blue
Red
+10 to 36 Volts DC
Red
Brown or orange
Reference RS422 (NMEA OUT)
Yellow
Outpu
t RS422 (NMEA OUT)
Green
Reference RS232
Black
Black
Input RS232
Green
White
Output RS232
White
Connect the 2 black wires of YEOMAN with the two blue wires.
____________________
2
–
SITING THE ANTENNA
The antennas of the FX312 and the FX412 are different. Therefore, you will find hereafter 2
specific paragraphs for each antenna model.
