Section 5 --- Equipment
Cayman 2005
180
To Extend the Patio Awning:
1. Locate the awning pull rod.
2. Locate the loop of the pull strap and hook it with
the awning pull rod. Draw the awning away from
the motorhome to the desired extension.
WARNING:
Always use the pull strap for extending and
retracting awning. Never retract awning
while holding onto the awning arm. Hands
or fingers caught between the awning arm
channel and brace channel during
awning retraction may result in serious
injury.
3. Slide the inner bracing rafters to the top of each arm
ensuring the bracing is locked in place. Tighten the
black locking knob.
NOTE:
Ensure the locking tab on the support brace is
latched through the hole in the end cap.
4. If equipped with Canopy Clamps, fasten the clamps at
this time.
5. Release the outer arm extension lock handle to slide
outer arm upward for additional clearance. Lift front of
awning to the desired height. Support the weight of the
awning with one hand while relaxing release lever and
allow the engaging pin to set into a hole in the lower
arm. Go to the other awning arm and do the same.
Ensure the awning is straight.
6. Slide the center pull strap to one end of the awning and
store it by wrapping the strap around the awning leg.

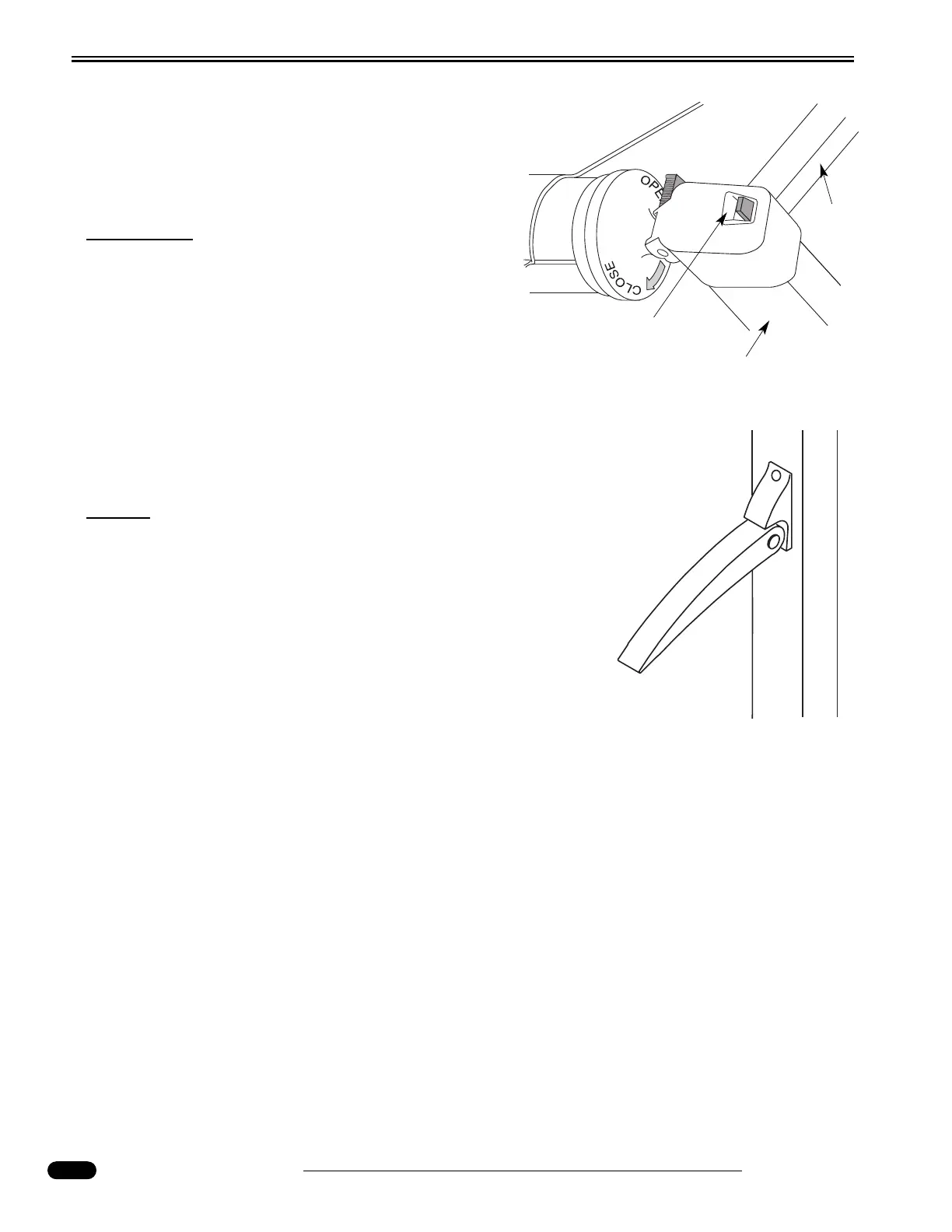

030841b
030841e
Inner
Arm
Inner Arm Lock
Outer Arm
Ensure inner arm
lock is in proper
position.
Outer arm extension
lock handle shown in
released postion.
