SYSTEMS CONTROL CENTER
The System Control Center enables a central location
for many of the switches and control monitors use to oper-
ate the motorhome. This panel is a flush wall-mounted
unit.

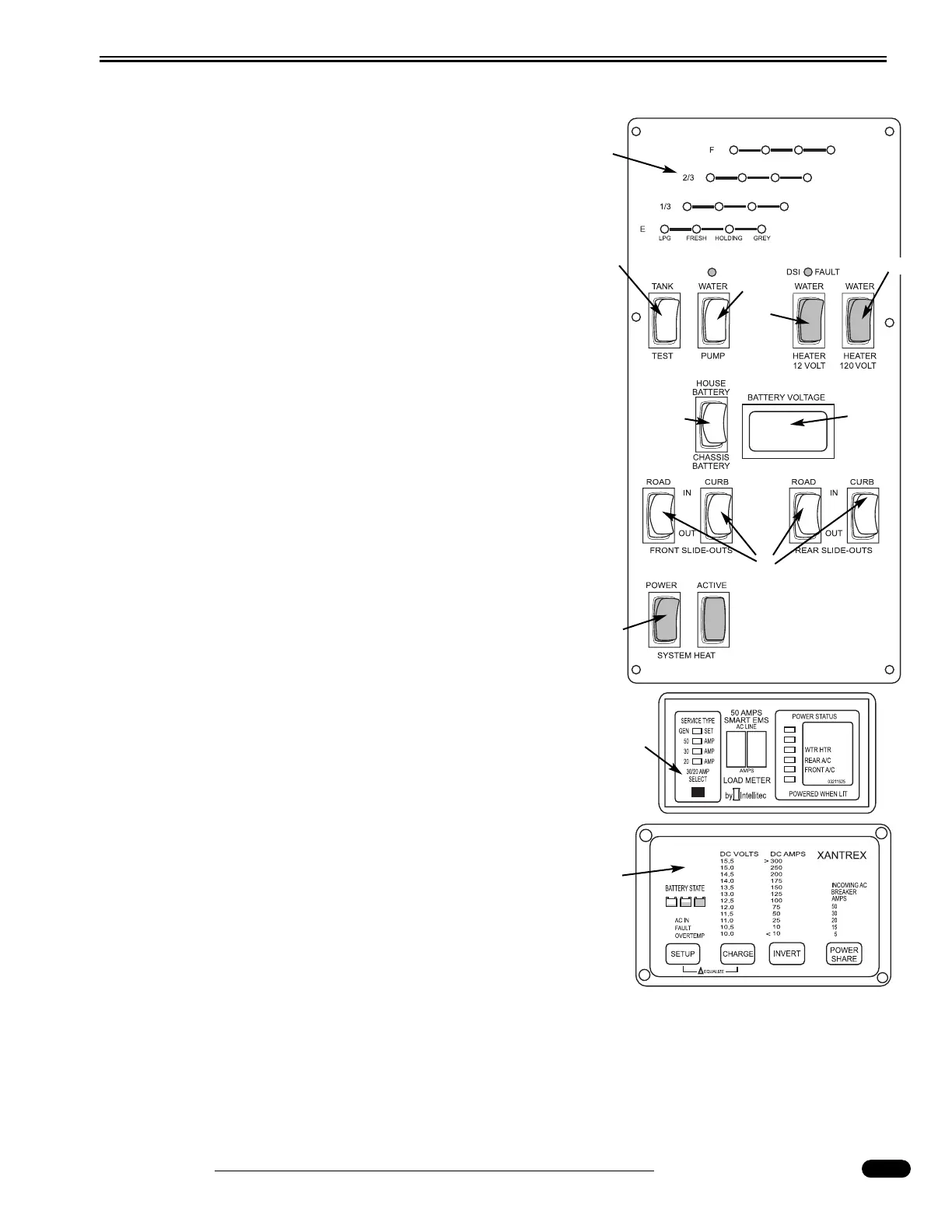

1. Tank Monitor Panel - Displays the status of the
holding tanks, fresh tank and LP tank. Holding Tank 1
is the black tank and Holding Tank 2 is the grey tank.
2. Tank Test Switch - Spring loaded switch used to dis-
play tank status on the monitoring panel.
3. Water Pump Switch - Applies 12 Volt DC power to
operate the Water Pump if operating from the on-
board fresh water supply.
4. Water Heater Switch - Applies 12 Volt DC power to
ignite the Water Heater, if preferring to operate the
Water Heater with LP Gas. If the Water Heater fails to
ignite, the DSI FAULT lamp will illuminate.
5. Water Heater Switch - Applies 120 Volt AC power
to the Water Heater if preferring to operate the Water
Heater with 120 Volts.
6. Battery Test Switch - A two-position test switch
used to provide a quick reference test of the battery
voltage.
7. Battery Voltage Meter - A LCD Display.
8. Slide-out Room Controls - Provides power to oper-
ate the slide rooms.
9. System Heater - Basement Heater.
10. 50 Amp Smart Energy Management System
(Optional) - Provides circuit protection for all 120
Volt AC loads and manages 120 Volt AC distribution.
11. Inverter Remote Panel (Optional) - This panel
controls the functions of the Heart Inverter.
