Monaco Cayman 2005 - Window Awning (OPT); Front Door Awning (OPT)

Equipment --- Section 5
Cayman 2005
183

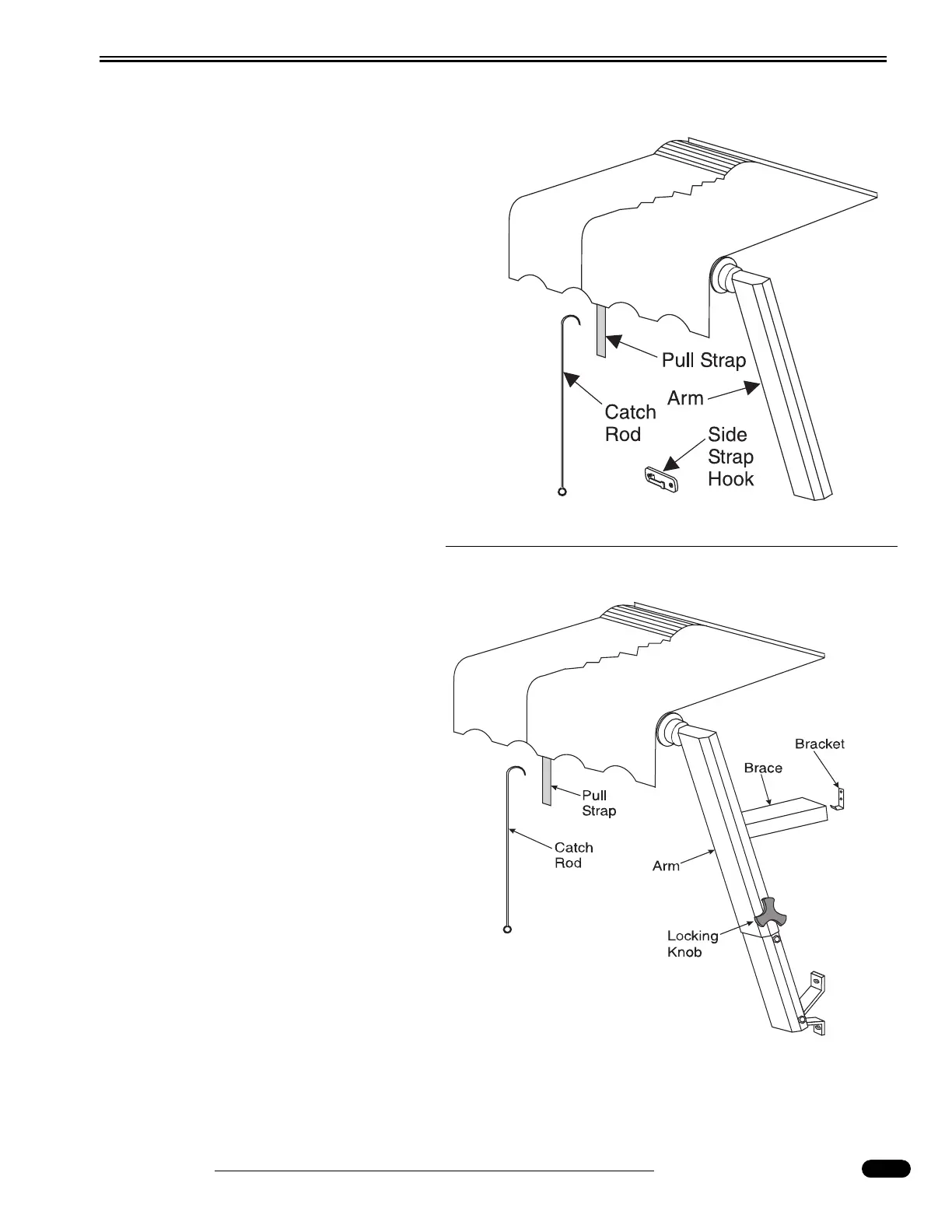

Window Awning (Optional)
To Extend the Awning:
• Hook loop of pull strap with catch rod and
pull awning, reel assembly and side arms to
extend fully away from motorhome.
• Hook pull strap on side strap hook, remove
catch rod from pull strap and store.
To Retract the Awning:
• Hook catch rod on pull strap, remove pull
strap from side strap hook and slowly allow
awning to retract.
• Remove catch rod from pull strap and store.
Front Door Awning (Optional)
To Extend the Awning:
• Hook the pull strap loop with awning
pull rod.
• Pull strap until awning is at full exten-
sion. With free hand, lever out inner
arms.
• Mate the slot of inner arm with hook on
side of the motorhome. Repeat proce-
dure for other arm.
• Release strap slowly ensuring inner
arms are secure. Slide the strap to rear
of awning roll tube and tie to rear arm.
• Loosen locking knobs for both arms and
extend arms so the canvas will clear
door in the open position.
030792
030851
