Section 10 --- Chassis Information
Cayman 2005
338
Drag Link
The drag link connects the steering box pitman arm to the steer axle. The movable joint (ball joint) uses
sealed boots to prevent water intrusion. Do not rupture the boot when applying grease. Grease interval is
six months or every 5,000 miles.
NOTE:
It will be necessary to start the motorhome and turn the steering wheel to access
fitting(s).
Center Link
The center link is located on the backside of the steer axle. The center link attaches the two wheels
together causing the right front to track with the left front. Greasing interval is every six months or 5,000
miles.

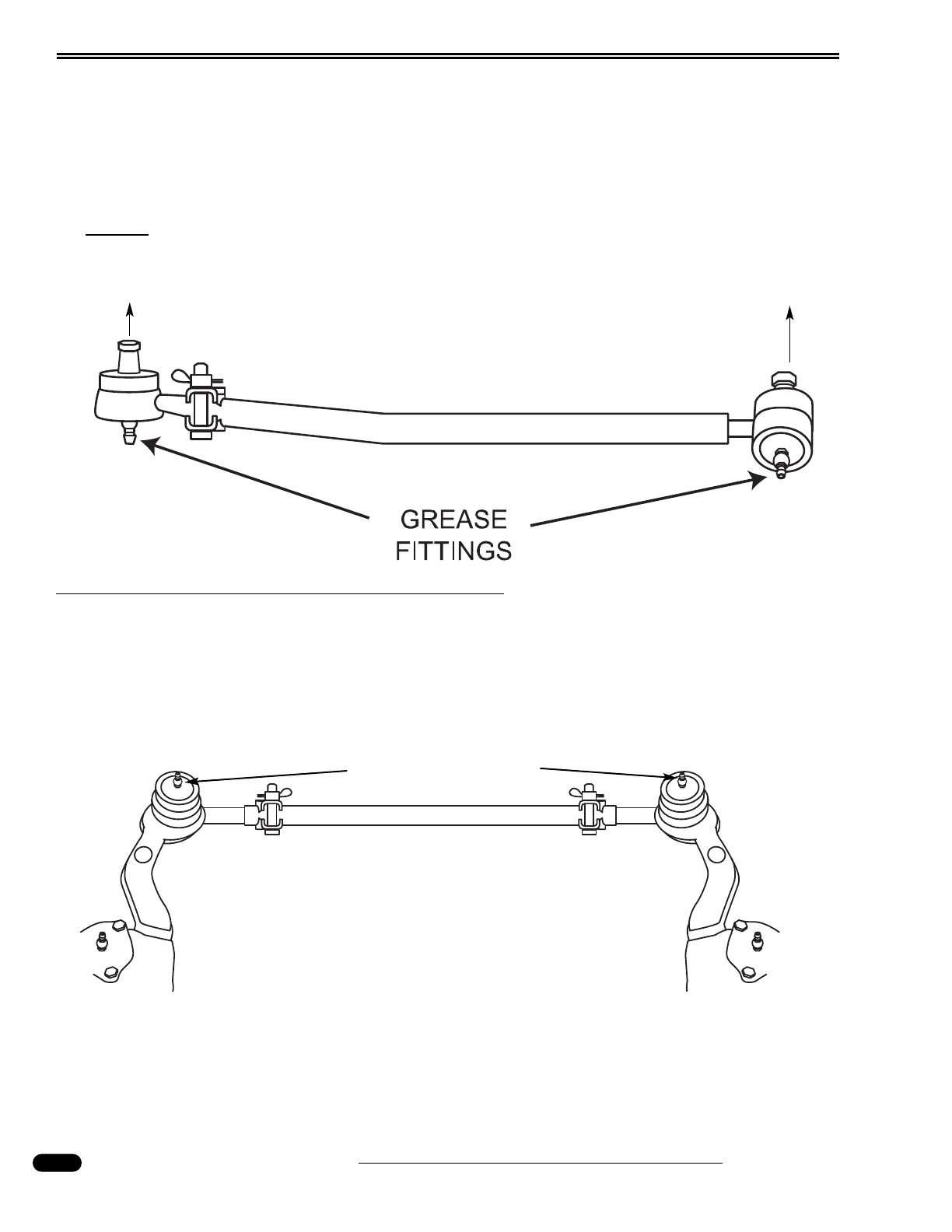

GREASE FITTINGS
CENTER LINK
(BOTTOM VIEW)
090354
To Steering Box
To Steering Spindle
