WALL THERMOSTAT
The wall thermostat operates the HVAC (Heating, Ventilating and Air Conditioning) system. The
thermostat requires 12 Volts DC to operate. The thermostat operates the roof air conditioner functions
as well as the LP-Gas furnace.
Fan Operation:
• Move the Fan switch to the On position.
• Set the thermostat to the desired temperature.
• Use the Hi/Low switch to select the fan speed.
Air Conditioner Operation:
• Move the System switch to Cool and the Fan
switch to On.
• Set the thermostat to the desired temperature.
• Use the Hi/Low switch to select the fan speed.
NOTE:
The thermostat in the bedroom performs
the same function as the living room ther-
mostat. The Furnace position on the bed-
room thermostat is nonfunctional.
Furnace Operation:
• Set the Fan switch to Auto to turn off AC fan.
• Set the thermostat to the desired temperature.
• Set the System switch to Furnace.
Comfort Control (Optional)
The comfort control operates the HVAC (Heating, Ventilating and Air Conditioning) system. The
comfort control is located in the hallway on the monitor panel. The comfort control will operate both
roof air conditioners and the LP-Gas furnace. The comfort control uses a liquid crystal display to show
the current mode status.
050235b

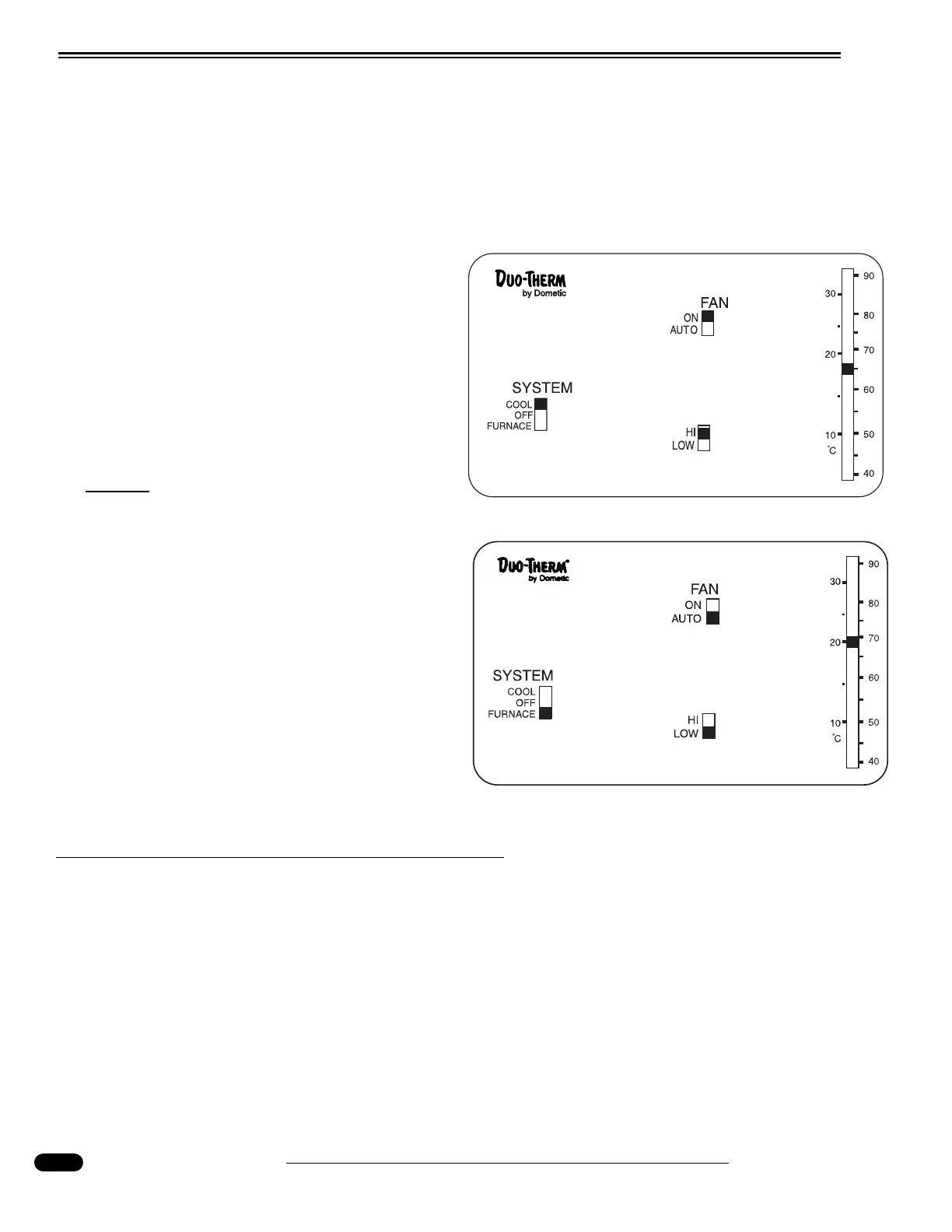

Standard Wall Thermostat
050235 Furnace
Wall Thermostat w/ Furnace Selected
