To Retract the Awning:
• Loosen locking knobs for both arms. Lower arms to stop bolts. Tighten knobs.
• Untie the pull strap and slide strap to center of awning roll tube.
• Pull down on pull strap with a firm grip until tension is off the inner arms. Fold inner
arms and attach them to the velcro.
• Carefully allow material to wind onto awning roll tube while holding strap in a neutral
position. This will allow material to roll up evenly.
• Awning end caps should be against the rubber bumpers. If one end cap is off, pull
down on awning pull strap while holding strap slightly to opposite side, allowing
awning to roll back up into position.
CAUTION:
When the awning is at full extension do not allow the awning to snap back
into the retracted position. Personal injury or damage to the awning or
motorhome may occur.

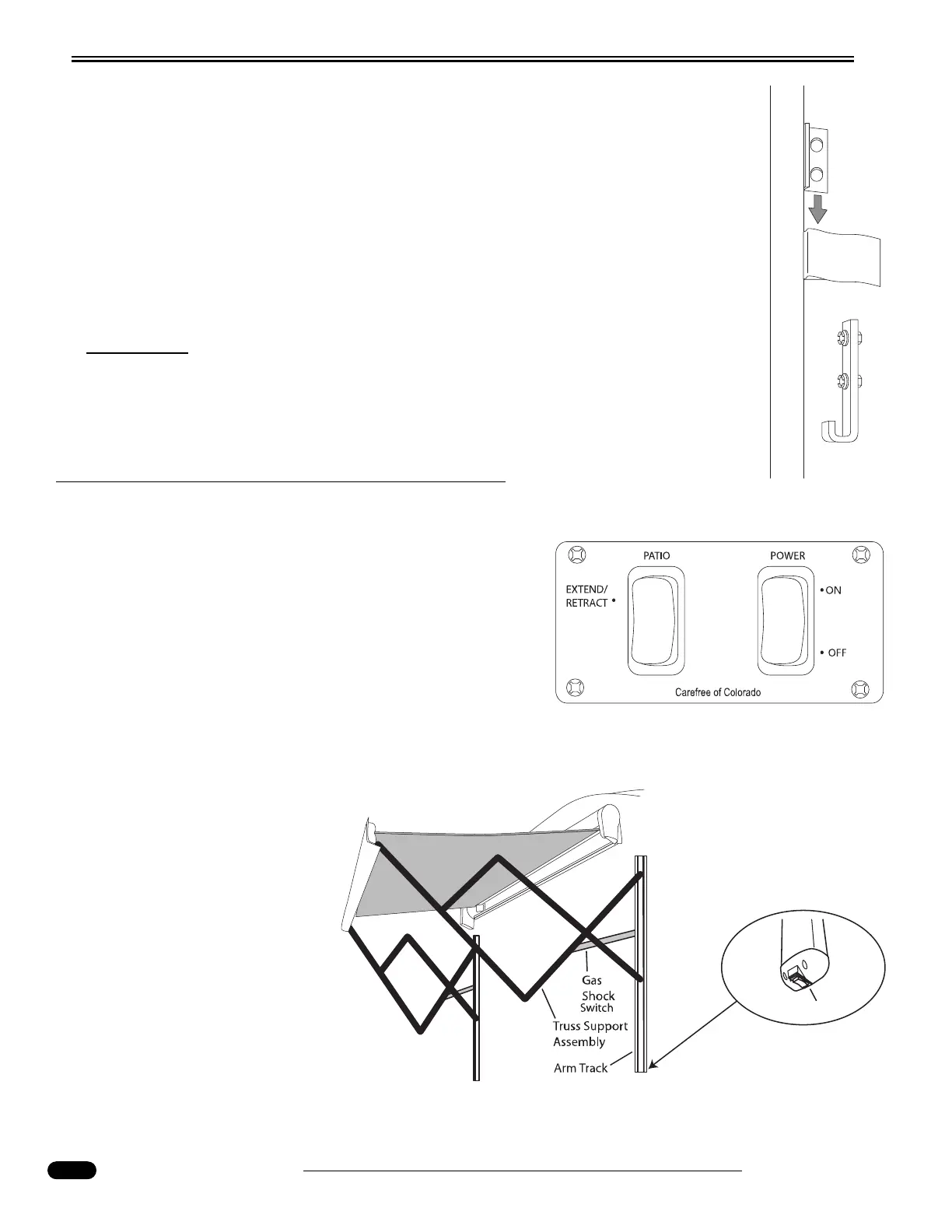

Patio Awning - Eclipse (Optional)
The Eclipse is a box awning that operates on 12 Volts DC
by the push of a button. The awning requires 10’ of lateral
side clearance.
To Operate Awning:
• Push and hold switch to extend the awning. Release the
switch at any time for partial extension.
• Push and hold the switch to retract awning.
• The interior awning power switch needs to be on to oper-
ate both interior and exterior awning switches.
If the awning fails to operate:
• Ensure ignition is off.
• Check power at 15 Amp mini
breaker in front electrical bay
on the roadside.
010743
Before travel, slide travel lock
into position.
030851d
030581d
Interior Switch
Exterior Switch
