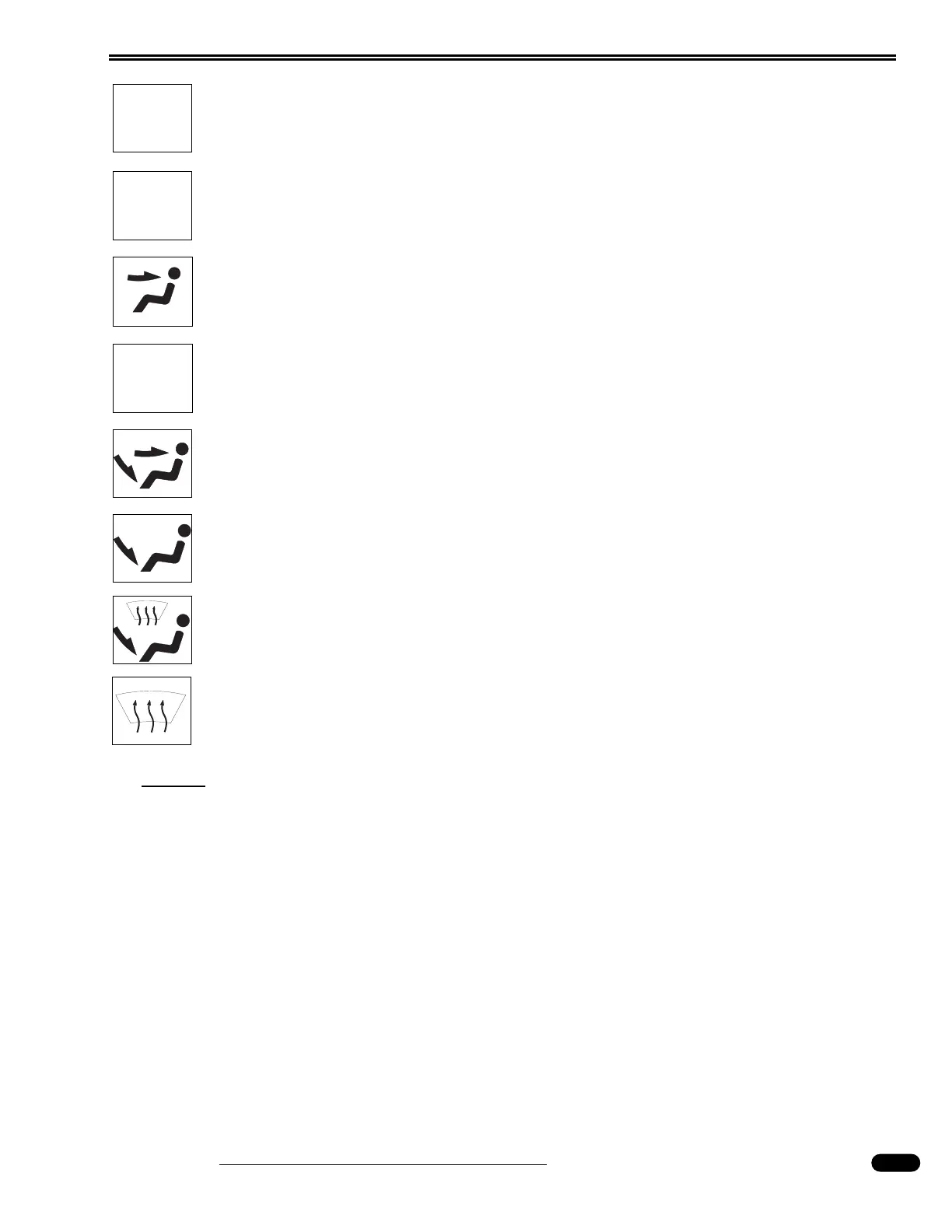

MAX A/C - Recirculated air is drawn from the passenger area and discharged
through the dash louvers.
A/C - Fresh Air is drawn from outside into the system and discharged through
the dash louvers.
VENT - Fresh air is drawn in and discharged throughout the dash.
OFF - The blower motor does not operate. The fresh air inlet door will close,
minimizing outside air infiltration into the motorhome.
BI-LEVEL - Fresh air is drawn in and discharged through the dash and the
floor.
FLOOR - Fresh air is drawn in and discharged through the floor louvers.
MIX - Fresh air is drawn in and discharged through the floor and defrost lou-
vers. The A/C system operates to dehumidify the discharged air.
DEFROST - Fresh air is drawn in and discharged through the defrost louvers.
The A/C system operates to dehumidify the discharged air.
NOTE:
The air conditioning compressor operates in all modes except VENT, FLOOR and
OFF to dehumidify the air. Rotate the temperature control switch to set discharge air
temperature.
Heat and Defrost Operation:
• Set the Mode Control Switch to the desired position.
• Set the Temperature Control Switch to the red zone.
A/C Operation:
• Setting the Mode Control Switch to A/C will allow outside air into the system.
• Setting the Mode Control Switch to MAX A/C will recirculate inside air. Select this posi-
tion when maximum cold air is desired.
• Set the Temperature Control Switch to the blue zone.
MAX
A/C
A/C
OFF
