Section 2 --- Driving & Safety
Cayman 2005
32
Mirror Adjusting:
• Tools needed: A 3/16" Allen wrench
and a 3/4" socket.
• Adjust the driver seat to travel posi-
tion.

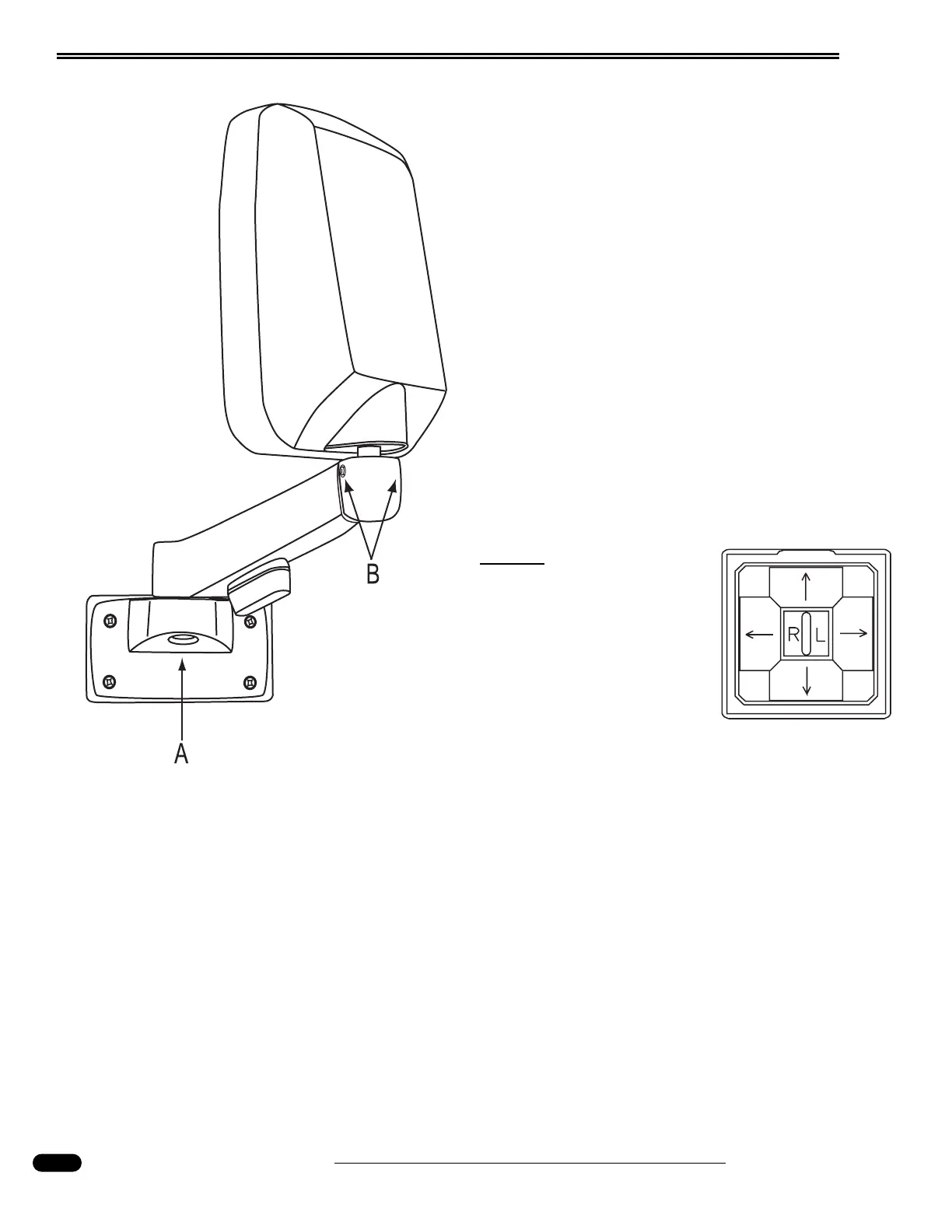

• Using a 3/4" socket, have the assis-
tant loosen the bolt located at the
base of the mirror (see A on illustra-
tion).
• Adjust the mirror for a clear side
view of the motorhome.
• Tighten the base bolt once proper
adjustment is made.
• To adjust the head of the mirror,
loosen the Allen screws located at
point B. Adjust to the left or the
right.
• Ensure Allen set screws and bolt are
tight.
NOTE:
Use the mirror select and
adjust switch located on
the roadside console to
fine tune the view.
070204
080378
Mirror Adjust Switch
