Monarch NICE 5000 User Manual

4 Use of the Commissioning Tools NICE5000 User Manual
- 74 -

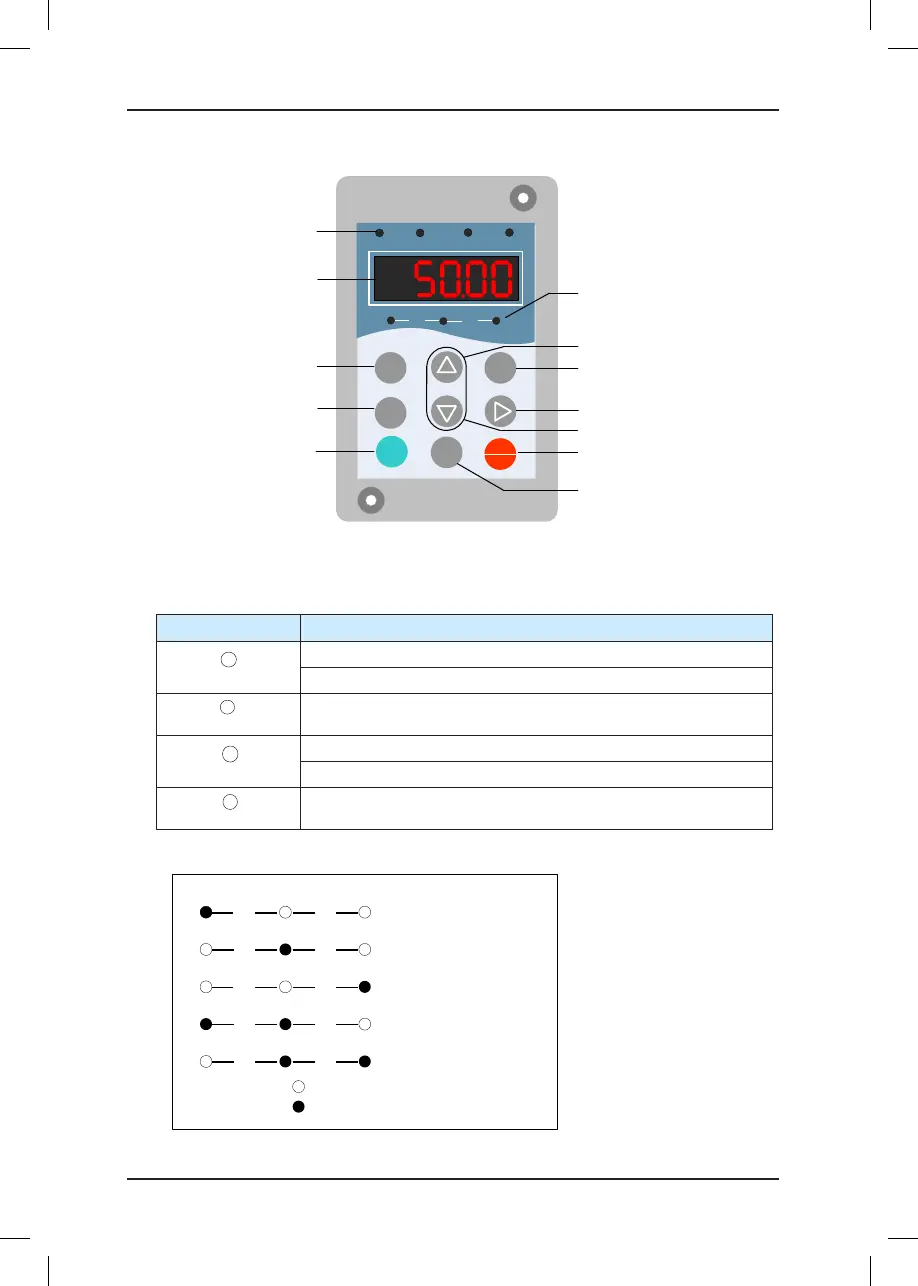

Figure 4-4 Diagram of the LED operation panel
MF.K
RUN
STOP
RES
QUICK
PRG
ENTER
RUN
LOCAL/REMOT FED/REV TUNE/TC
RPM
%
A VHz
Data display
Programming
key
Function
indicator
RUN key
Fault hiding key
Stop/Reset key
Shift key
Increment key
Decrement
key
Confirm key
Unit indicator
Quick key
4.2.1 Description of Indicators
•
Status Indicators
Indicator Indication
RUN
OFF indicates the controller is in the stop state.
ON indicates the controller is in the running state.
LOCAL/REMOT
Reserved
FWD/REV
OFF indicates elevator in up direction.
ON indicates elevator in down direction.
TUNE/TC
ON indicates in auto-tuning state.
•
Unit Indicators
RPM
%
Hz A V
RPM %
Hz A V
RPM %
Hz A V
RPM
%
Hz A V
RPM %
Hz A V
Hz: Unit of frequency
A: Unit of current
V: Unit of voltage
RPM: Unit of motor speed
%: Percentage
Indicator is OFF.
Indicator is ON.
