6 - 32 Maintenance

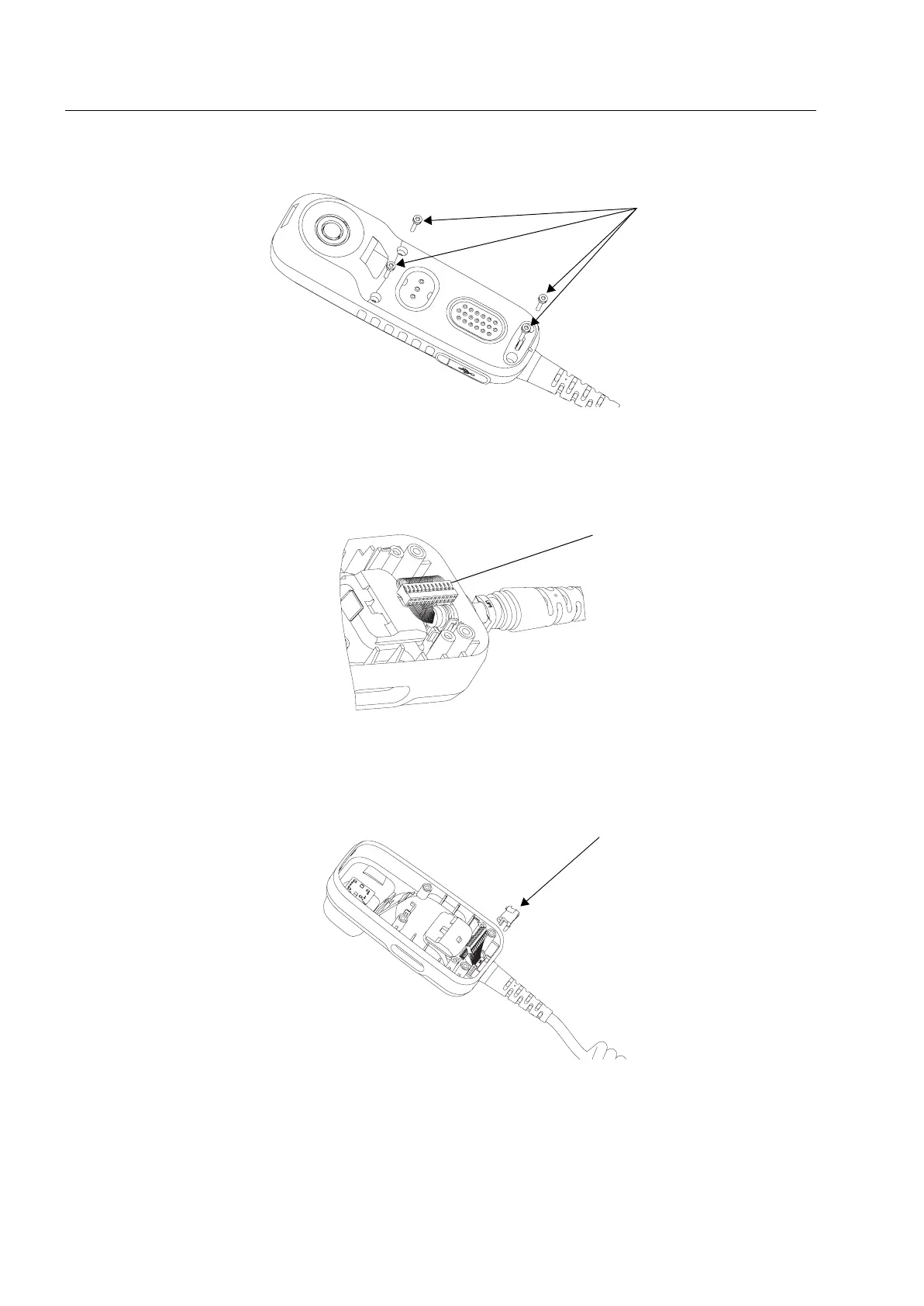

Figure 6-44 Back Housing Assembly
13. Twist the spiral cord wire to board connector to vertical postion as shown below and insert
through the Cradle front housing as illustrated in Figure 6-45.
Figure 6-45 Spiral Cord Connector
14. Assemble the spiral cord cable retainer to the Cradle front housing.
Figure 6-46 Spiral Cord Cable Retainer Assembly
ZWG0130215-O
Machined screws
ZWG0130215-O
Twist the wire to board connector
to vertical position before inserting
through the front housing
ZWG0130215-O
Spiral cord cable
retainer
