Maintenance 6 - 33
15. Connect the spiral cord cable wire to board connector to the Cradle main PCB.

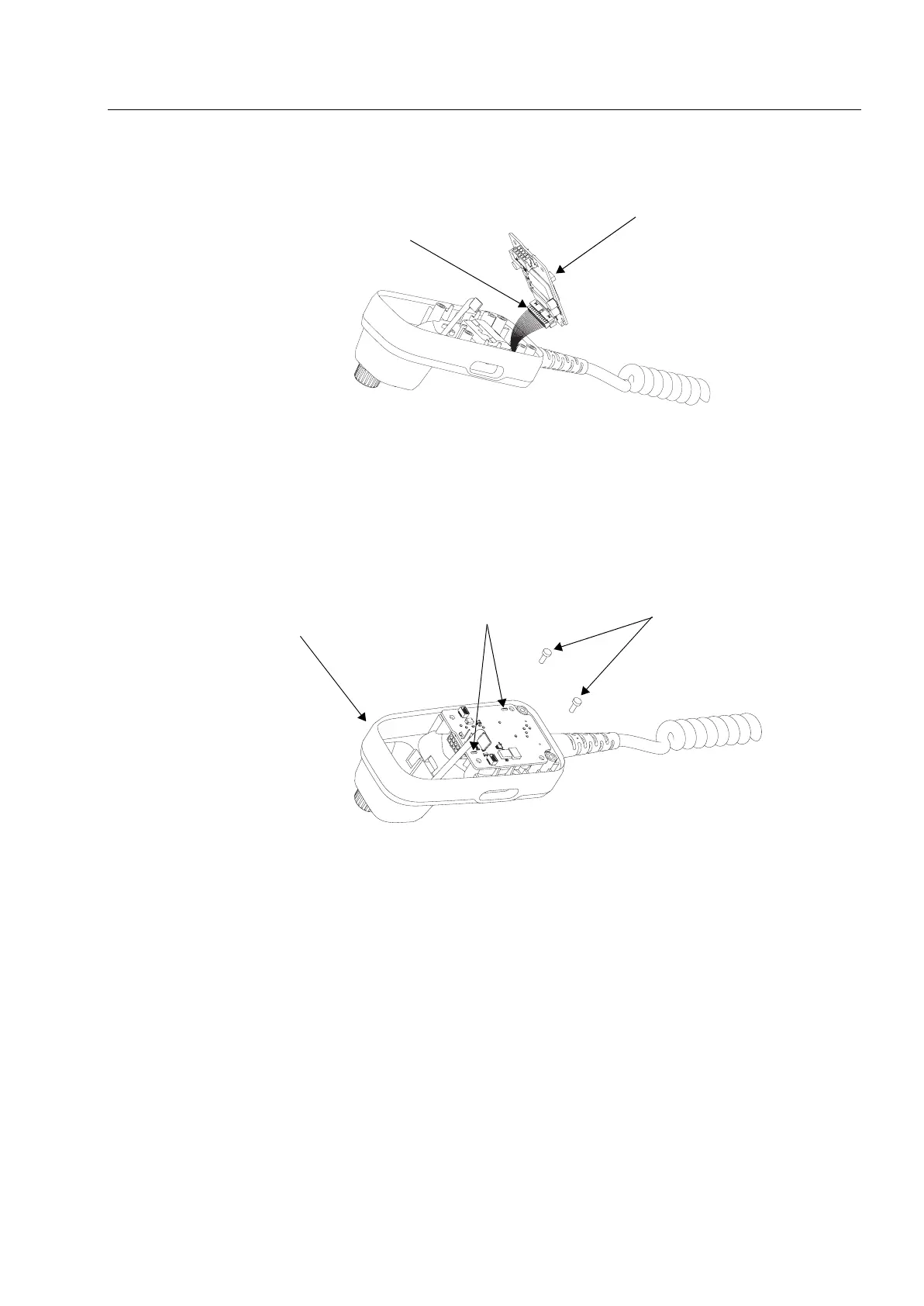

Figure 6-47 Spiral Cord Cable Connector Assembly
16. Assemble the Cradle main PCB to the Cradle front housing by aligning the PCB to the front
housing guide pins.
17. Fasten the two self tapping screws to Cradle front housing by using a T10 TORX™ screw bit
with 5.0+/-0.1 lb-in torque. Refer to Figure 6-48.
Figure 6-48 Cradle Main PCB Assembly
18. Connect the wire harness wire to board connector, top control flex BTB connector and RJ50
flex BTB connector to the Cradle main PCB in sequence.
19. Assemble the Cradle back housing assembly to the Cradle front housing assembly by tongue
in the back housing assembly to the front housing assembly. Fasten the four main screw
assembly to the front housing by using a T10 TORX™ screw bit with 5.0+/-0.1 lb-in torque.
ZWG0130215-O
Cradle main PCB
Spiral cord cable
wire to board connector
ZWG0130215-O
Self tapping screws
Cradle front housing
Guide pins
To Next Page
