Motorola MTR3000 Basic Service Manual

E-4 MTR3000 Third Party Controllers: Community Repeater Panel
E.2.4 CPS Configuration
The MTR3000 Base Station/Repeater will need to be configured via the CPS application as shown in
Figure E-4 and Figure E-5. More specifically, the affected parameters are as follows:
• Audio Type
- Rx and Tx Flat
• Disable Repeat Path
- Checked
• GPIO Pin number 2, 11
- Ext Mic PTT
- Active Low
• GPIO Pin number 4
- Carrier Squelch (CSQ) Detect
- Active High
• Squelch Type (Rx)
-CSQ
• Squelch Type (Tx)
-CSQ

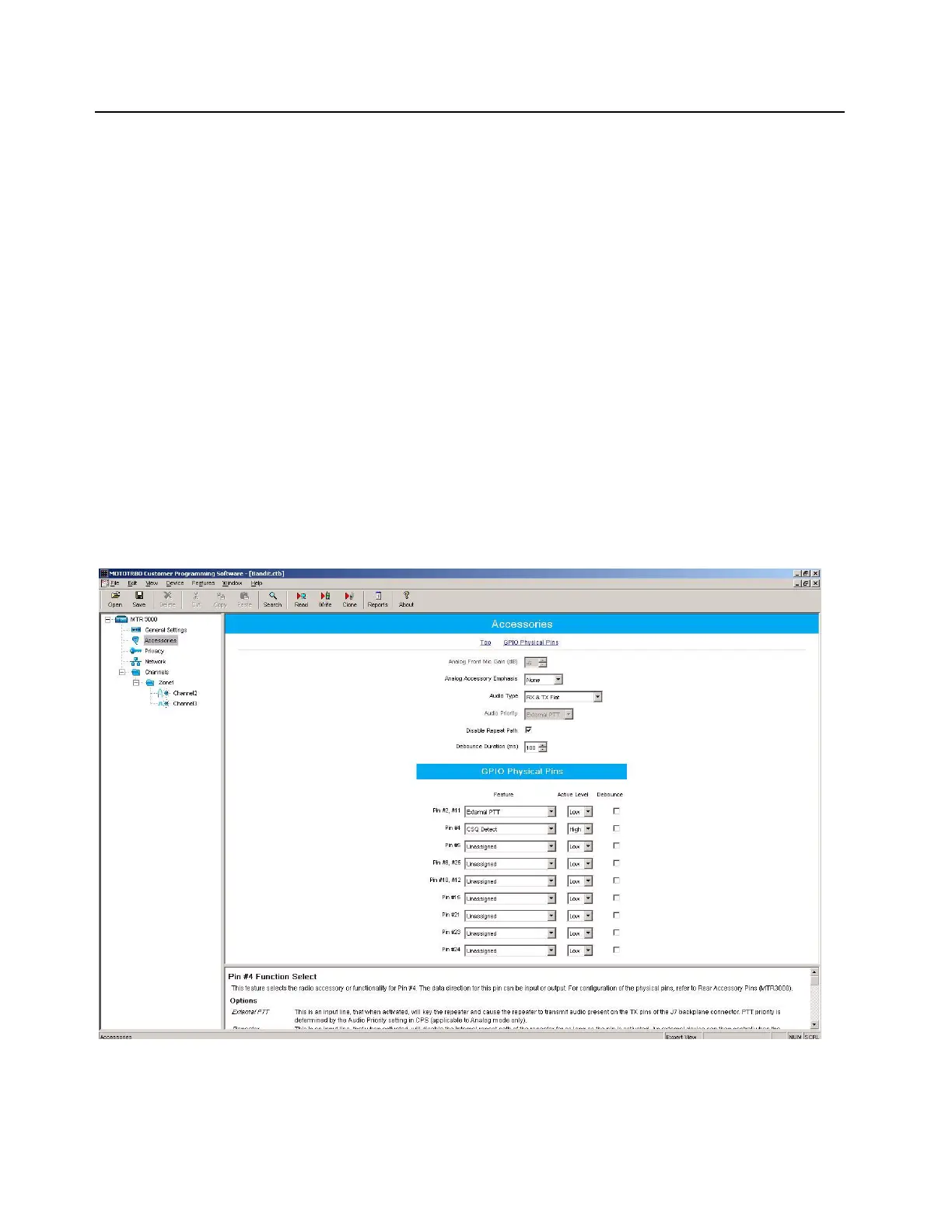

Figure E-4 CPS Configuration for Community Repeater Panel (1 of 2)
