E-14 MTR3000 Third Party Controllers: Trunking Controllers
E.4.5.3 Channel Steering
Leave jumper S7 in position B (factory default) to match the MTR3000 Base Station/Repeater’s
active low setting for the Channel Steering 1, Channel Steering 2, Channel Steering 3, and Channel
Steering 4 GPIO signaling.
E.4.5.4 Monitoring
Leave jumper S8 in the “IN” position (factory default) to match the MTR3000’s active low setting for
the Monitor GPIO signaling.
E.4.5.5 PTT
Leave jumper S5 in the “IN” position (factory default) to match the MTR3000’s active low setting for
the PTT GPIO signaling.
E.4.5.6 Wildcard 1 (optional)
Leave jumper S6 in position A (factory default) to match the MTR3000’s active low setting for the
Repeater Disabled GPIO signaling.
E.5 Trunking Controllers
E.5.1 Description
The MTR3000 Base Station/Repeater is capable of supporting LTR trunking operations with the
Trident’s Marauder and Raider controllers. Additionally, the MTR3000 Base Station/Repeater also
supports Passport trunking as well with Trident’s NTS controller.
Refer to the respective Trident Instruction Manuals (supplied with the controllers) for specifications,
operation, installation, alignment, programming, and repair information.

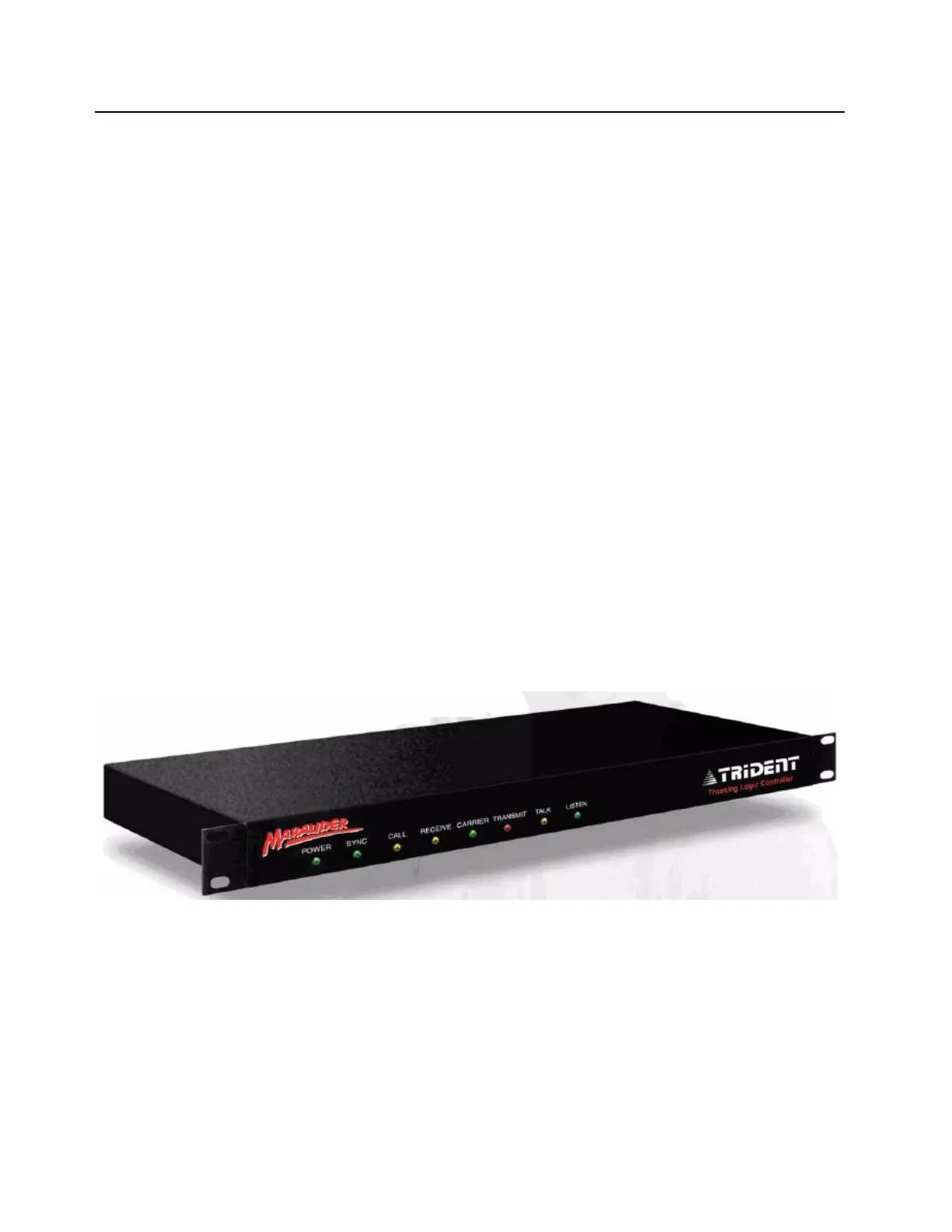

Figure E-13 Model Trident’s Marauder
