E-10 MTR3000 Third Party Controllers: Tone Remote Adapter
E.4 Tone Remote Adapter
E.4.1 Description
When a dispatch console or deskset sends out signals to a remote base station/repeater, it does so
over a Wireline. Two types of signals are sent:
• Audio signal
• Command signals (function tones) that are used to perform the remote control functions.
The MTR3000 Base Station/Repeater is capable of decoding function tones, sent over a Wireline
from a remote analog deskset or console, via the Motorola Tone Remote Adapter (Model L3276).
When properly configured, the Tone Remote Adapter will perform the following functions in
conjunction with the MTR3000 Base Station/Repeater:
• Transmit and Receive Audio
•PTT
•Monitor
• Channel Select (up to 15 frequencies)
• Repeater Disabled (repeaters only).
Refer to the Motorola Tone Remote Adapter Manual (supplied with the Tone Remote Adapter) for
specifications, operation, installation, alignment, programming, alternate configurations, and repair
information.

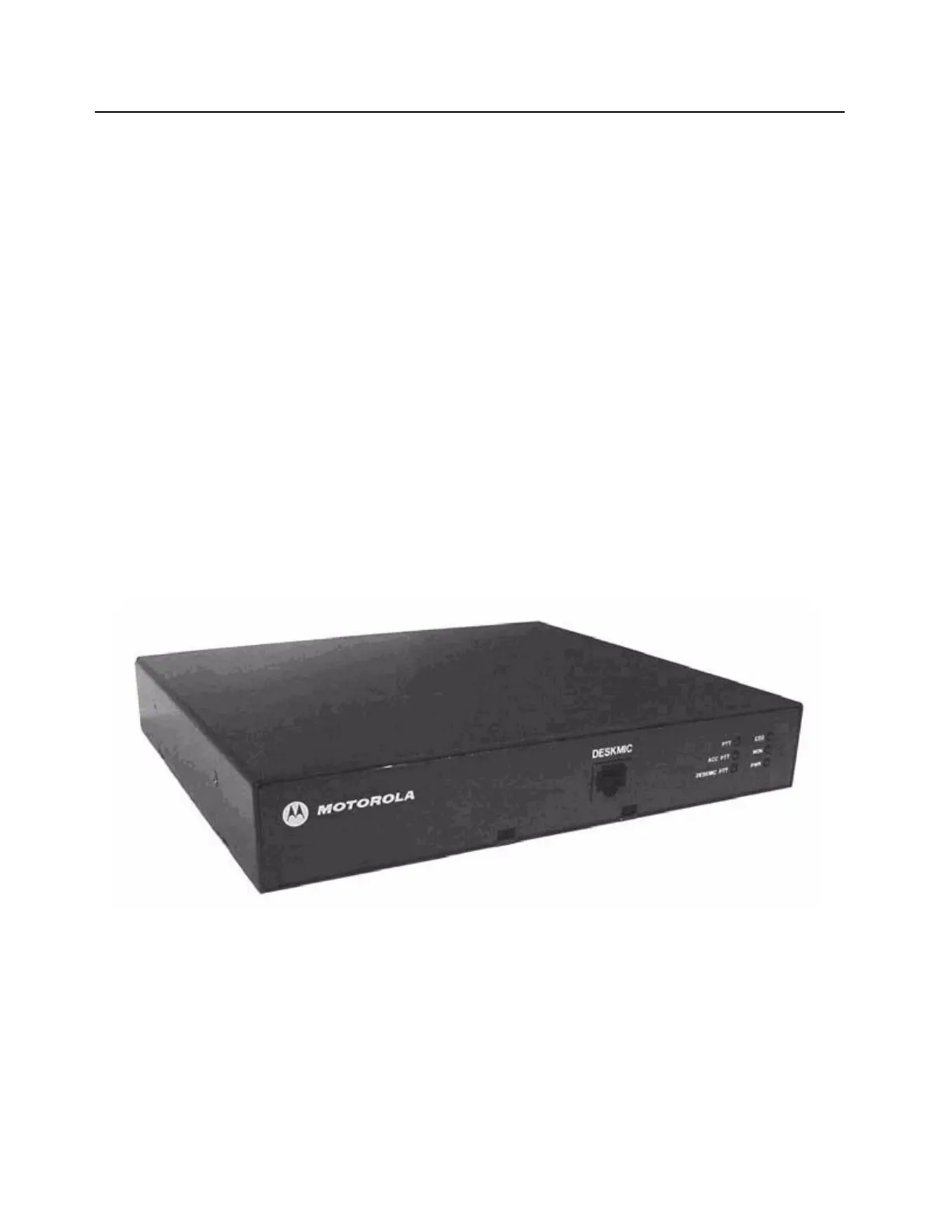

Figure E-10 Model L3276 Tone Remote Adapter
E.4.2 Compatibility
Model L3276 Tone Remote Adapter is compatible for all versions of MTR3000 Software and
Hardware.
