AWK-1151C Series

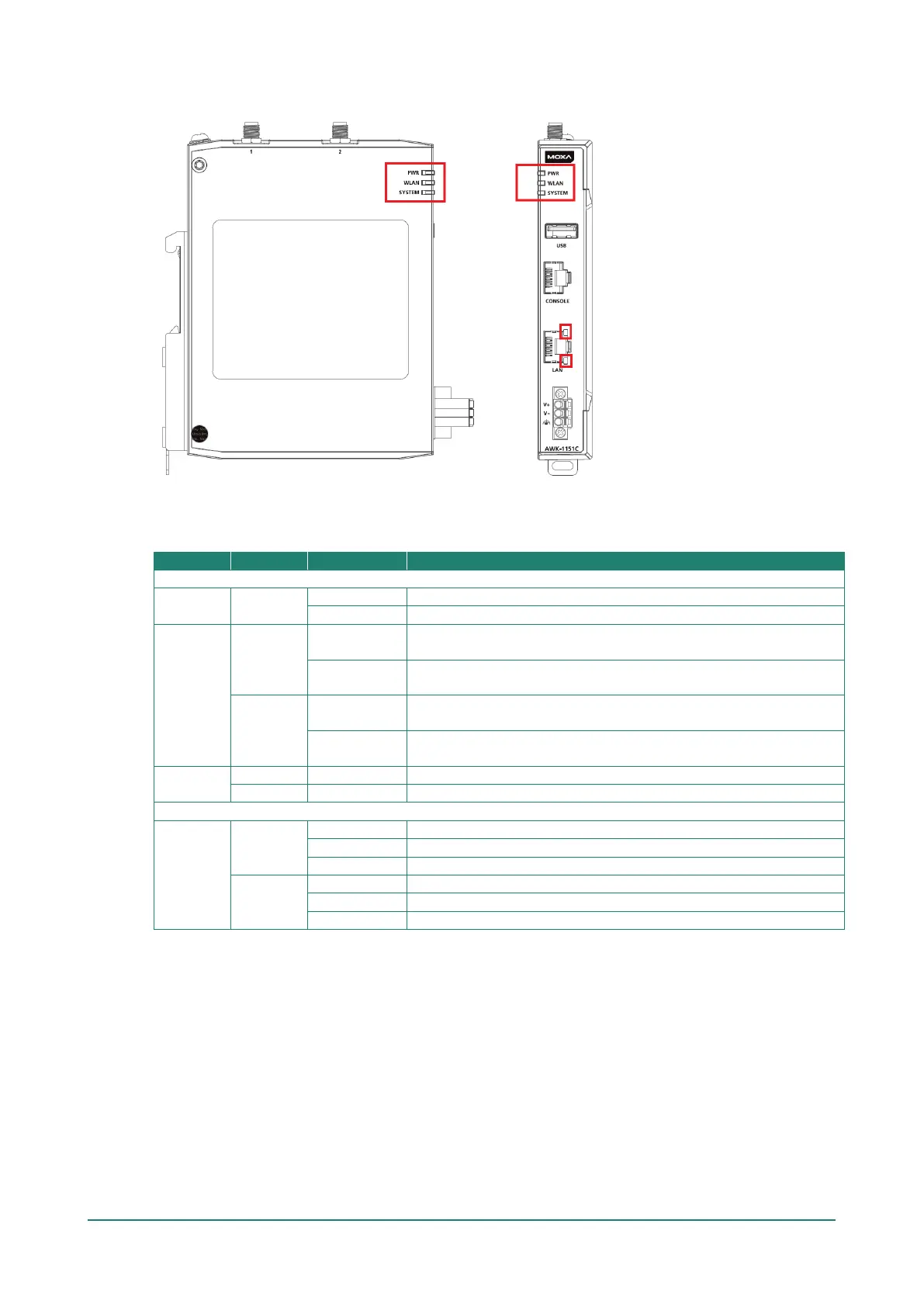

The following table summarizes how to read the device’s wireless settings from the LED displays.
LED
Color
State
Description
Front Panel LED Indicators (System)
PWR Green
On
Power is being supplied from DC to the PWR socket.
Off
Power is not being supplied from DC to the PWR socket.
WLAN
Green
On
Client/Client-Router/Slave has established a Wi-Fi connection to an
AP/Master with a SNR value of 35 or higher.
Blinking
Data is being transmitted over the wireless interface (2.4 GHz or 5
GHz).
Amber
On
Client/Client-Router/Slave has established a Wi-Fi connection to an
AP/Master with a SNR value of less than 35.
Blinking
Data is being transmitted over the wireless interface (2.4 GHz or 5
GHz).
SYSTEM
Red
On
System initialization failure, configuration error, or system error.
Green
On
System startup completed and is operating normally.
LAN LED Indicators (RJ45 Port)
LAN
Green
On
Link established on the LAN port at 1000 Mbps.
Blinking
Data is being transmitted at 1000 Mbps.
Off
LAN port’s 1000 Mbps link is inactive.
Amber
On
Link established on the LAN port at 10/100 Mbps.
Blinking
Data is being transmitted at 10/100 Mbps.
Off
The LAN port’s 10/100 Mbps link is inactive.
