MiiNePort E2/E3 Introduction
1-10

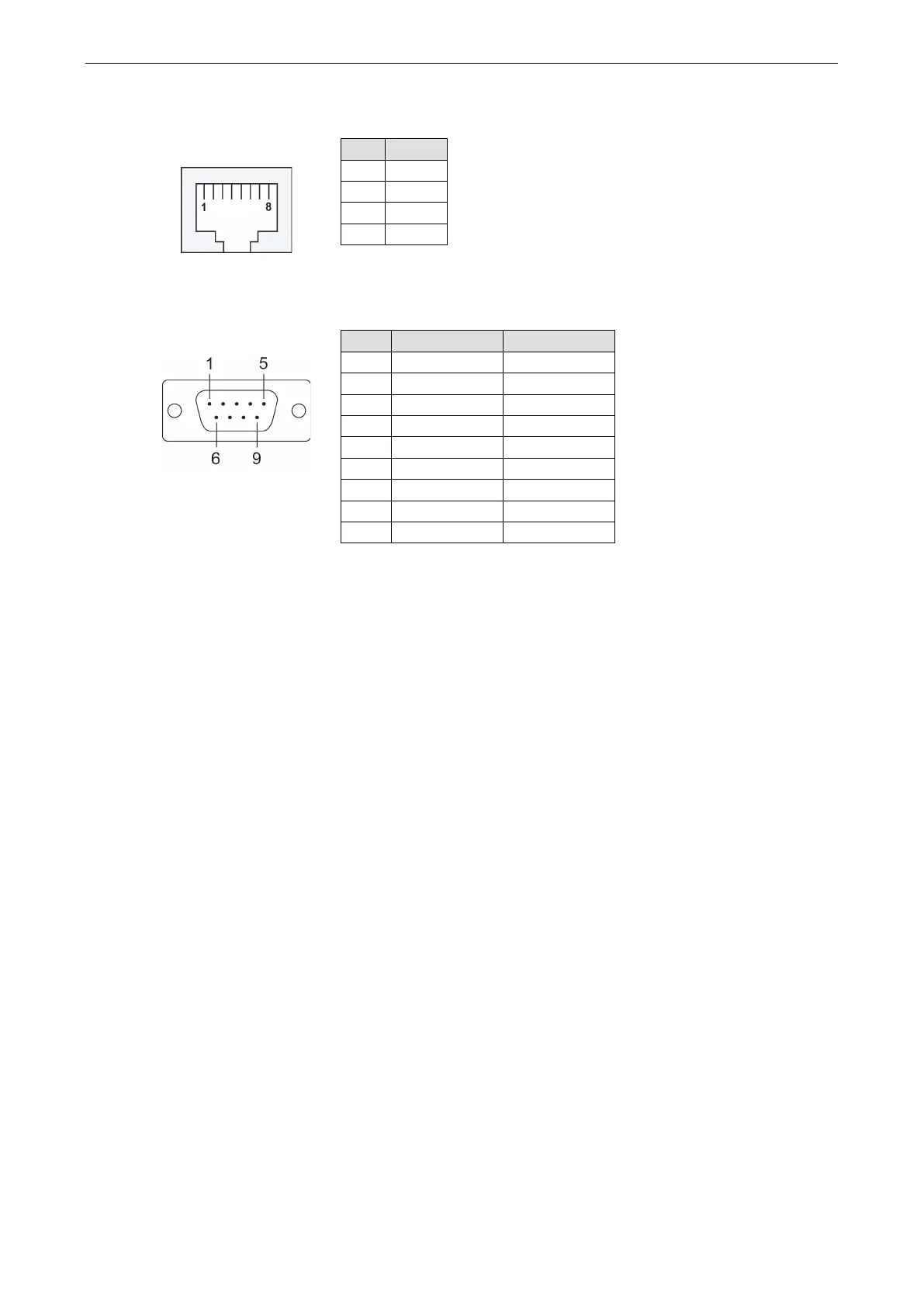

Evaluation Board Ethernet Port Pin Assignment
RJ45
Pin Signal
1 Tx+
2 Tx-
3
Rx+
6 Rx-
Evaluation Board Serial Port Pin Assignment
DB9 Male
Pin RS-232 RS-485-2W
1 DCD –
2 RxD –
3 TxD D+
4 DTR D-
5 GND GND
6 DSR –
7 RTS –
8 CTS –
9 – –
