an ISO 9001 Company
CHICAGO BLOWER CORPORATION • 1675 Glen Ellyn Road • Glendale Heights, IL • 60139
fan.net v21.5.55

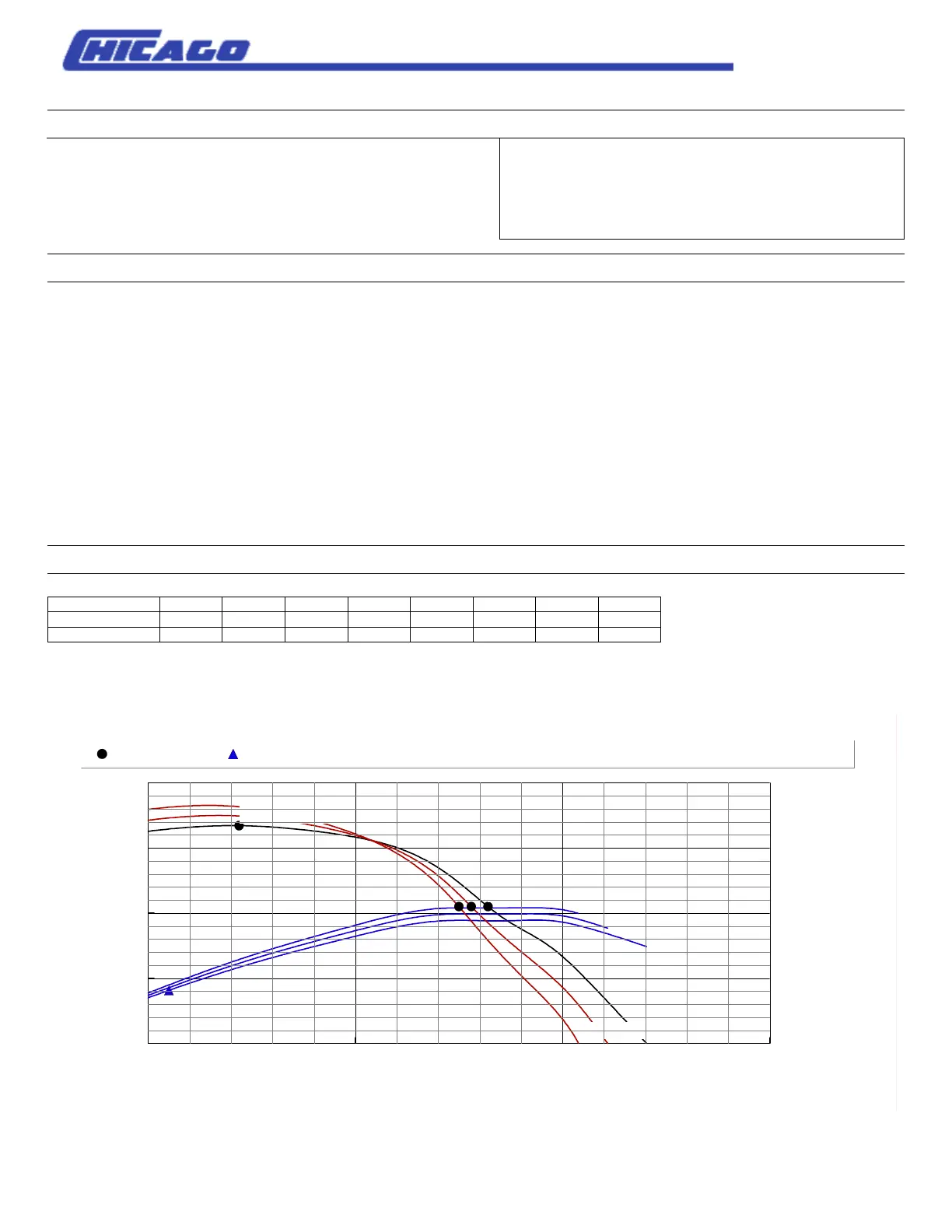

Description
Job Description: Munters CHICAGO BLOWER SALES OF BOSTON
Reference: R15000 Process Fan, 2 Fans AD (Bert) Jordan
Fan Type: Airfoil Centrifugal Fans Phone: (603) 425-7979
Fan Model: Design 51 SW Fax: (603) 425-7703
Fan Size: 200 e-mail: cbs.boston@comcast.net
Fan Width: 95.9%
Performance
Values are in accordance with AMCA Standard 210
Design Net #1 Net #2
Volume Flow Rate (ACFM) 8200 7800 7500
Static Pressure (IN. WG) 10.5 10.5 10.5
Density (LB/FT³) 0.068 0.072 0.076
Temperature (°F) 118 90 65
Altitude (FT) 0 0 0
Speed (RPM) 3500 3500 3500
Power Required (BHP) 18.8 19.8 20.8
Static Efficiency (%) 71.3 64.4 59
Outlet Velocity (FT/MIN) 3565 3392 3261
Damper Opening (%) 100 67 63
Control Type Outlet Damper
Outlet Area (FT²) 2.3
Maximum Speeds at 118 °F (RPM)
Class 1 Max. RPM 2355
Class 2 Max. RPM 3063
Class 3 Max. RPM 3853
Sound
Values are in accordance with AMCA Standard 300
External Sound Power Levels (dB):
Center Hz 63 125 250 500 1000 2000 4000 8000
L
wi
Design 96 101 102 100 95 92 90 86
ERC 11 6 2 1
Sound Pressure 3.0 FT from Fan (dBA) 95
Sound Pressure, Radiated, 3.0 FT from 0.105 housing 74 dBA.
L
wi
(L
wo
) is sound power at the fan inlet (outlet)/airstream, less ERC.
43
0
10
20
30
40
50
0
10
20
30
40
50
60
0
Static Pres. (IN. WG)
Flow Rate (ACFM) x 1000
0
5
10
15
20
0 5 10 15
0
10
20
30
4040
Horsepower (BHP)
Design
MINIMUM CFM
Net 1Net 2
- Design Point - Power vs. Vol
CAUTION: FAN MUST NOT OPERATE BELOW MINIMUM CFM, EXCEPT FOR START-UP
R15 Process Fan
2 Fans per System
