Munters R Series User Manual

an ISO 9001 Company
CHICAGO BLOWER CORPORATION • 1675 Glen Ellyn Road • Glendale Heights, IL • 60139
fan.net v21.5.55
Description
Job Description: R15 React Fan CHICAGO BLOWER SALES OF BOSTON
Reference: Munters AD (Bert) Jordan
Fan Type: Square Fans Phone: (603) 425-7979
Fan Model: Design 36A SQAD SW Airfoil Direct Drive Fax: (603) 425-7703
Fan Size: 16 1/2 e-mail: cbs.boston@comcast.net
Fan Width: 70%
Performance
Values are in accordance with AMCA Standard 210
Volume Flow Rate (ACFM) 4275
Static Pressure (IN. WG) 9.92
Density (LB/FT³) 0.066
Temperature (°F) 130
Altitude (FT) 0
Speed (RPM) 3500
Power Required (BHP) 9.12
Static Efficiency (%) 72.5
Outlet Velocity (FT/MIN) 2947
Damper Opening (%) N/A
Control Type N/A
Outlet Area (FT²) 1.45
Sound
Values are in accordance with AMCA Standard 300
External Sound Power Levels (dB):
Center Hz 63 125 250 500 1000 2000 4000 8000
L
wi
Design 86 94 97 94 91 85 83 79
ERC 12 7 3 1
Sound Pressure 3.0 FT from Fan (dBA) 89
Sound Pressure, Radiated, 3.0 FT from 0.105 housing 66 dBA.
L
wi
(L
wo
) is sound power at the fan inlet (outlet)/airstream, less ERC.
51
0
10
20
30
40
50
60
0
10
20
30
40
50
60
0

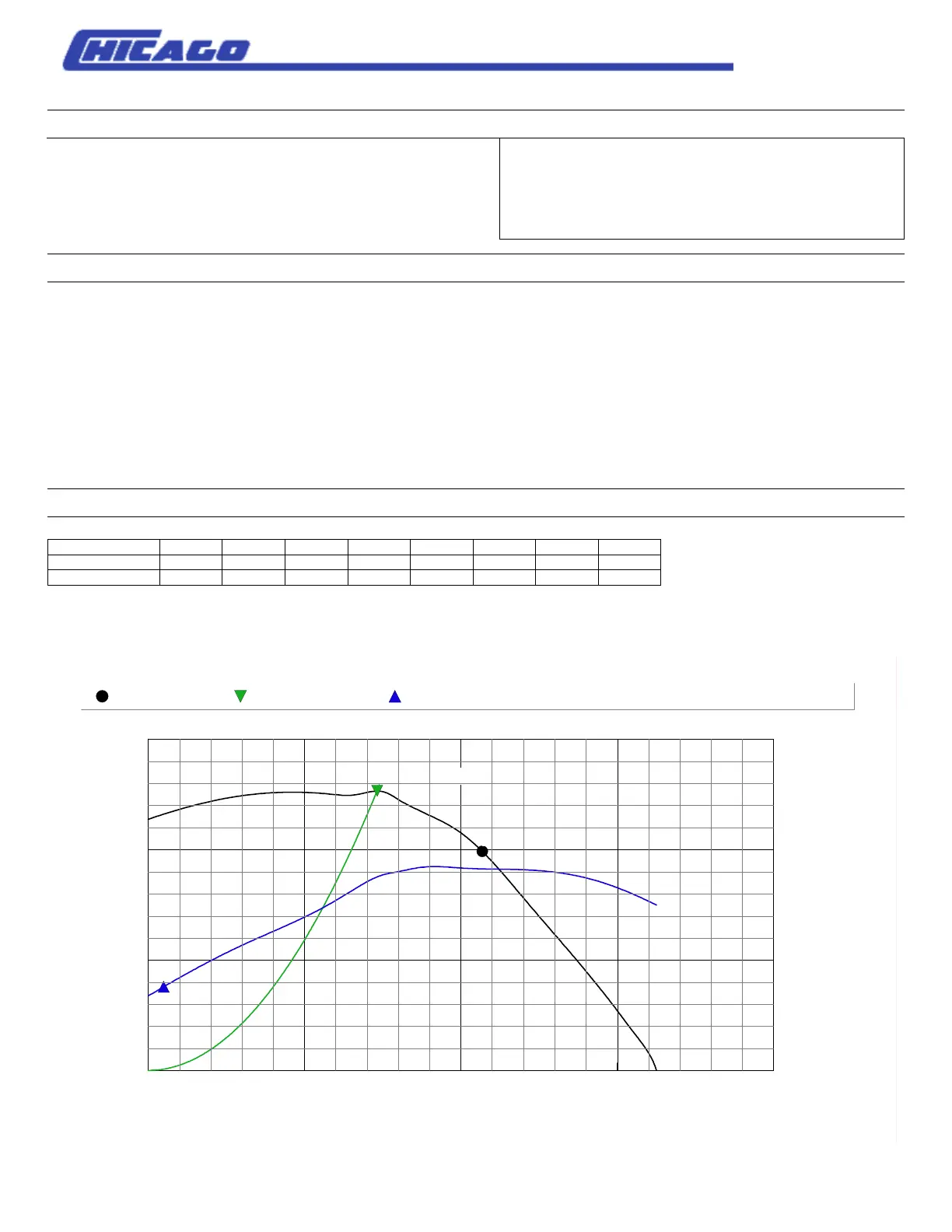

Static Pres. (IN. WG)
Flow Rate (ACFM) x 1000
0
5
10
15
02468
0
5
10
15
Horsepower (BHP)
Design
Peak Pressure
- Design Point - Peak Pressure - Power vs. Vol
CAUTION: FAN MUST NOT OPERATE LEFT OF PEAK PRESSURE CURVE, EXCEPT FOR START-U
R15 Reactivation Fan
